Check 2 Range Switch

CHECK "2" RANGE SWITCH














Diagnosis:
Input signal circuit of "2" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "2" range.

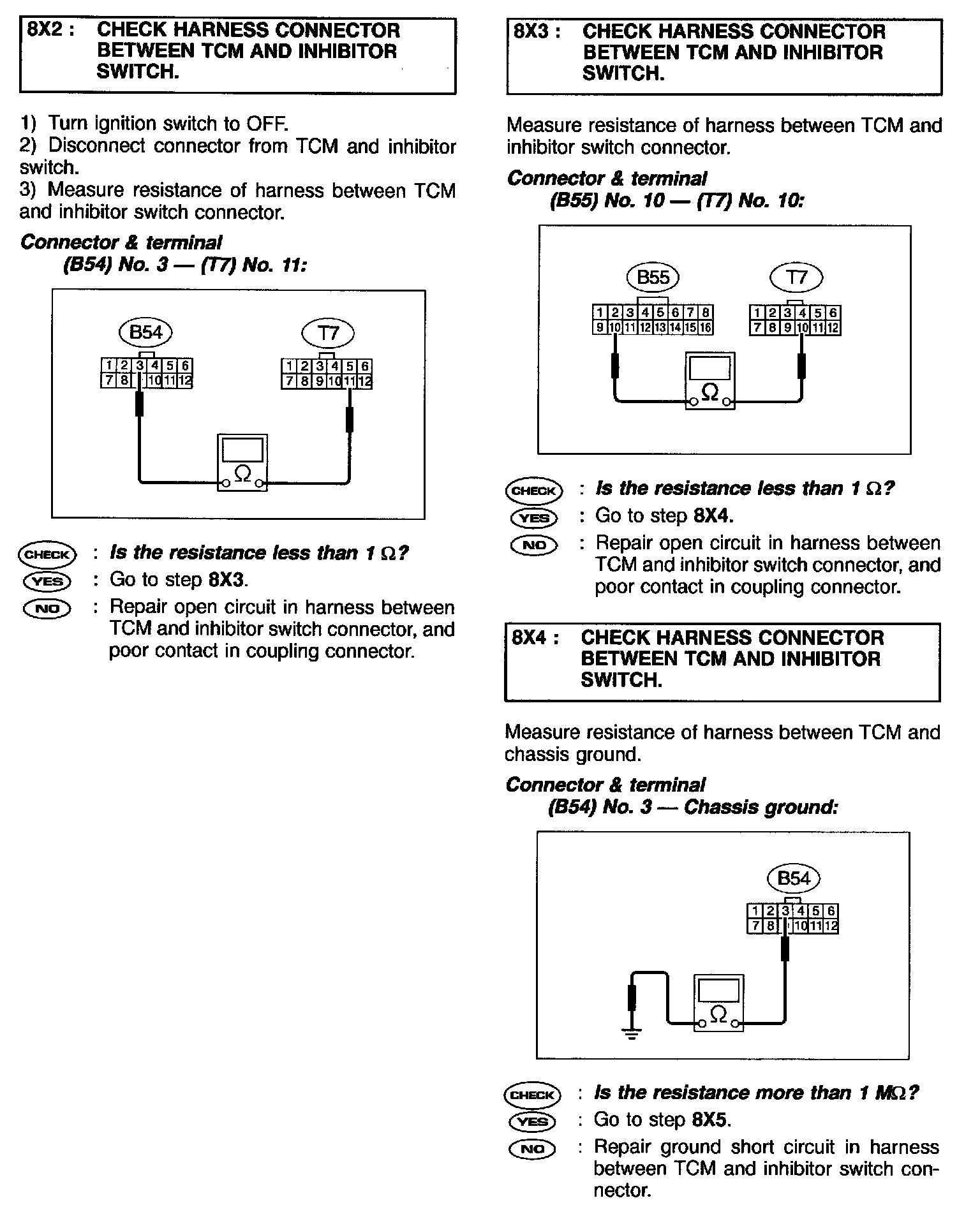

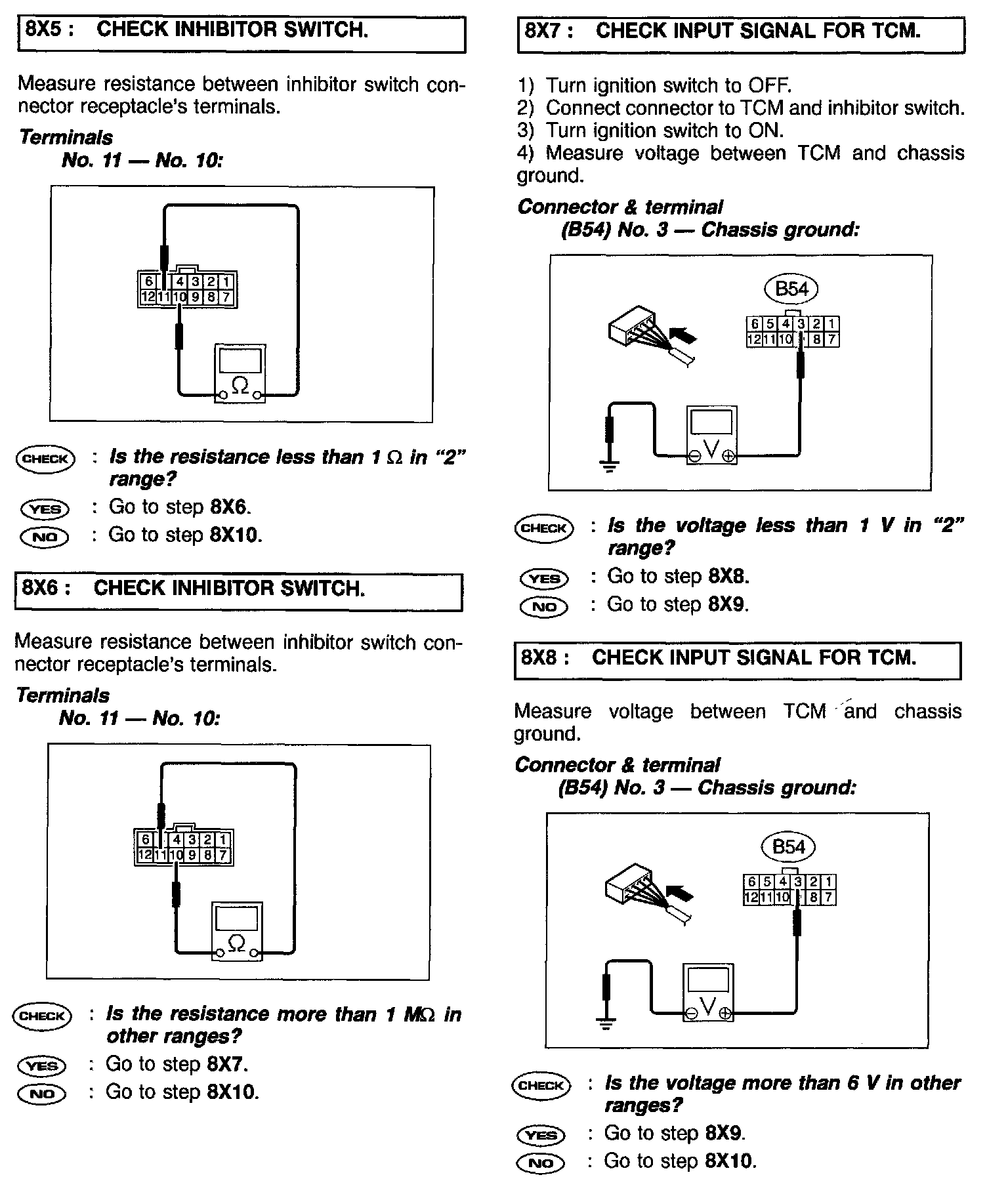

Wiring Diagram:
