Check FWD Switch

CHECK FWD SWITCH














Diagnosis:
- LED does not come on even if FWD switch is ON.
- FWD switch circuit is open or shorted.

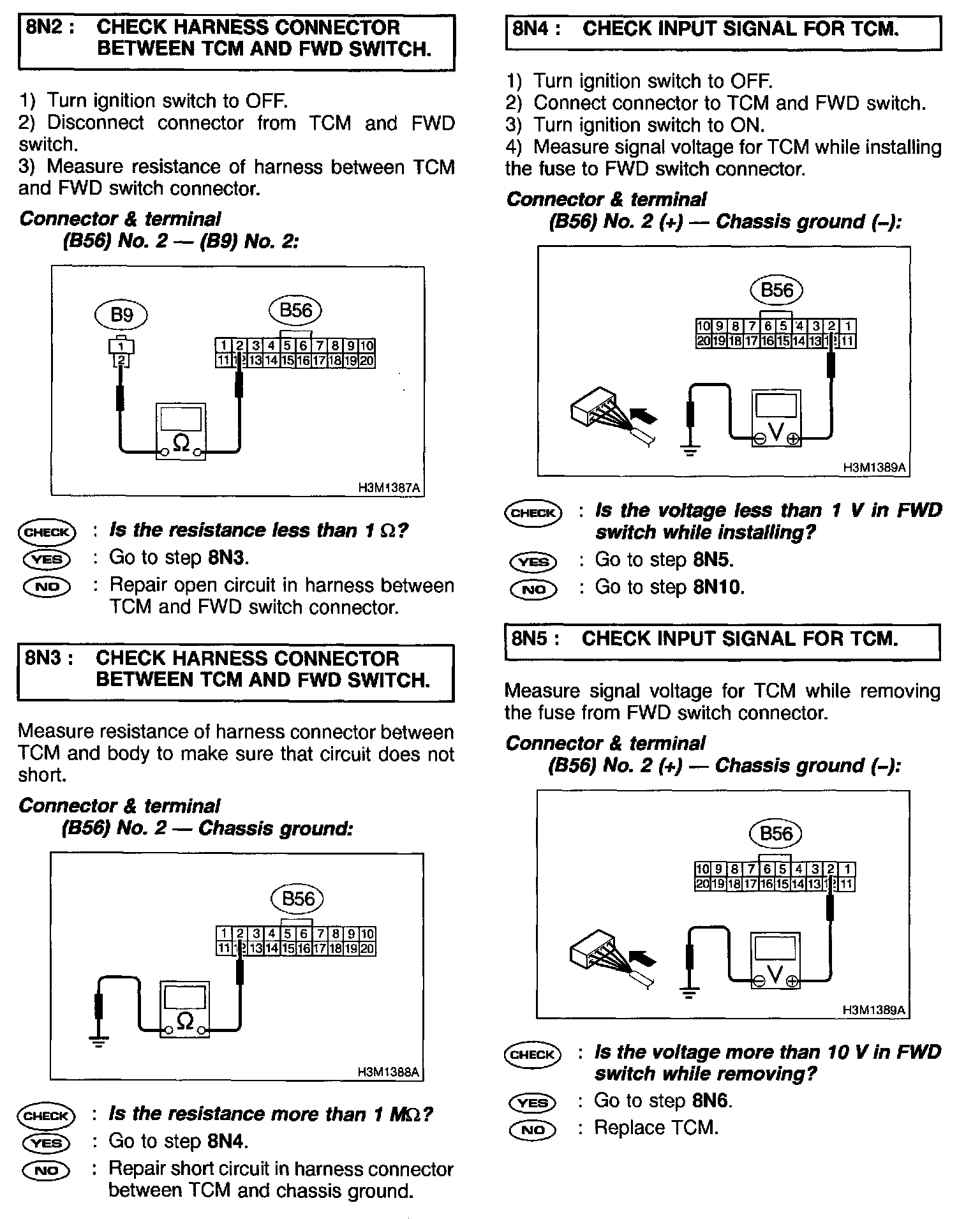

Wiring Diagram:
