M/T Torque Data

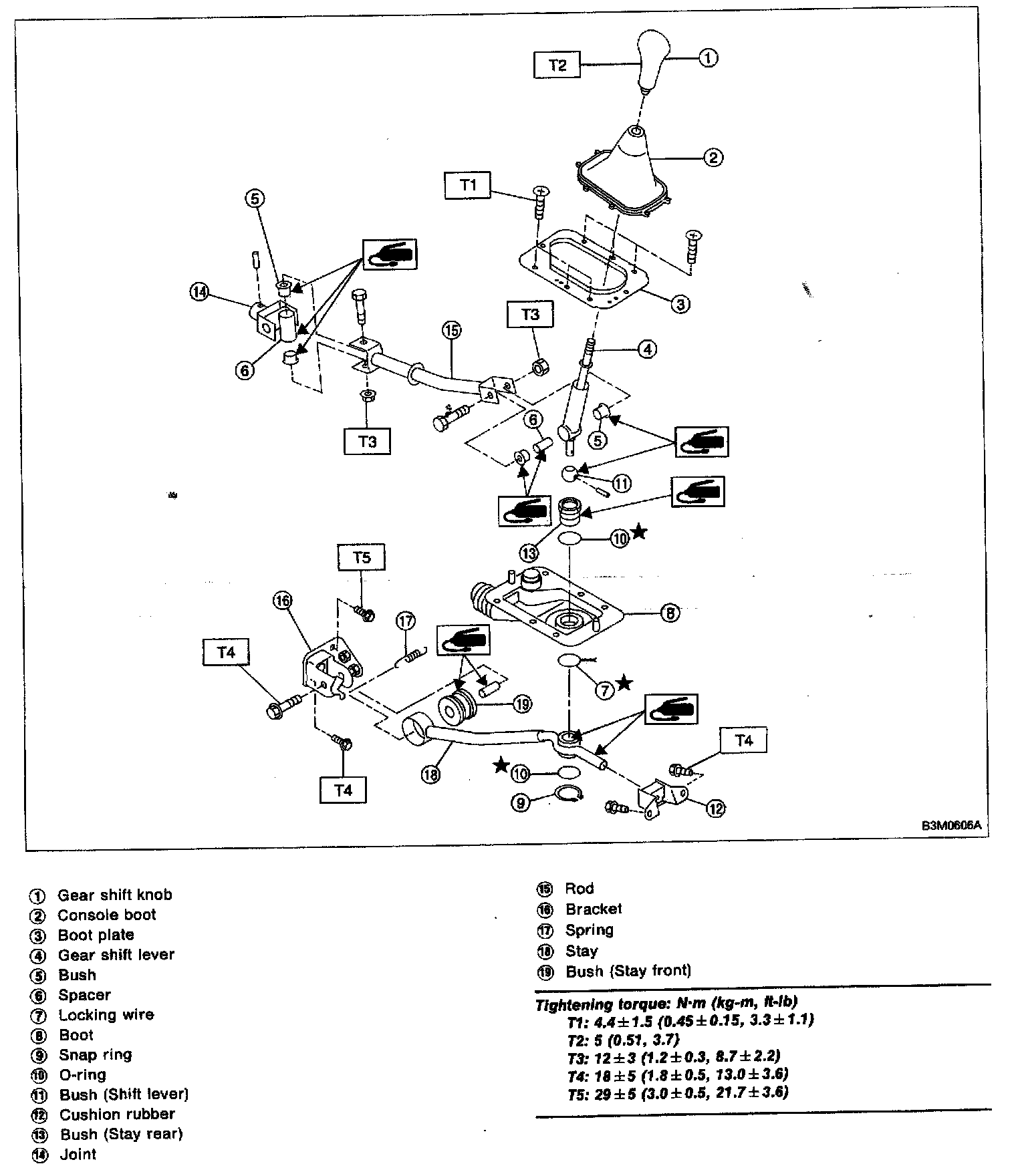

5-spd M/T, Transmission Control System (FWD):

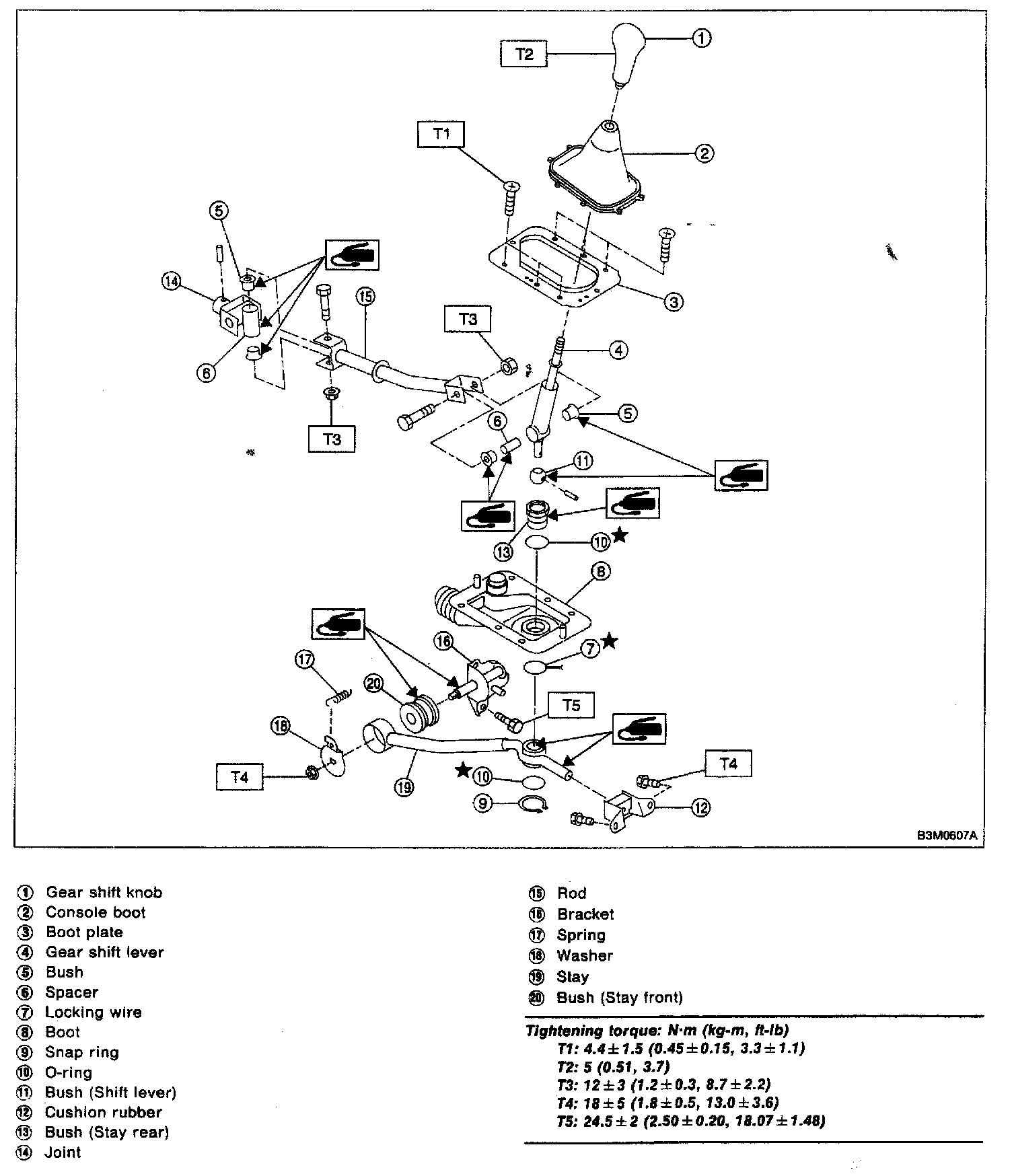

5-spd M/T, Transmission Control System (AWD):

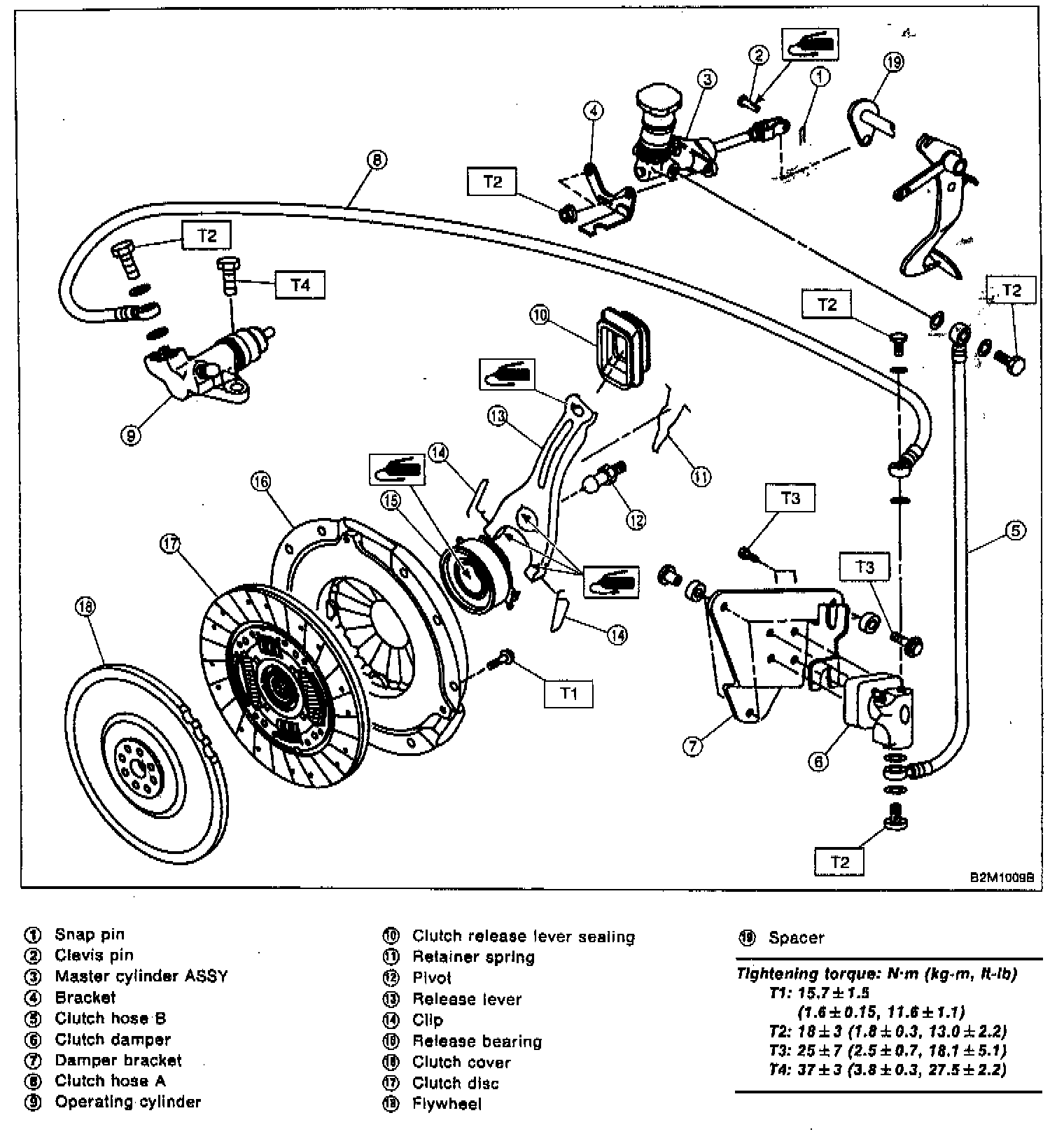

5-spd M/T, Transmission Clutch Assembly (Hydraulic Type):

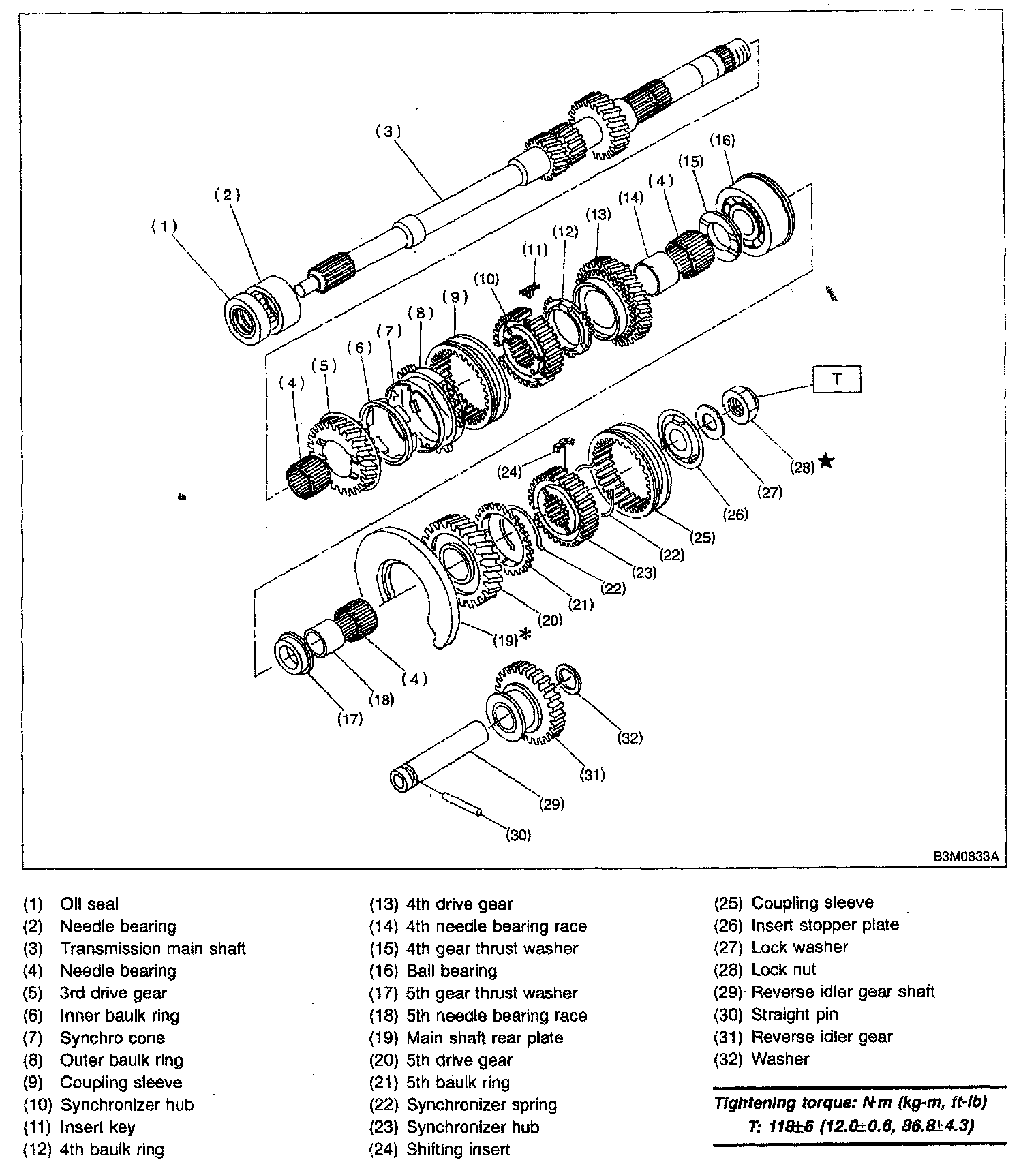

5-spd M/T, Transmission Main Shaft Assembly (2500 CC):

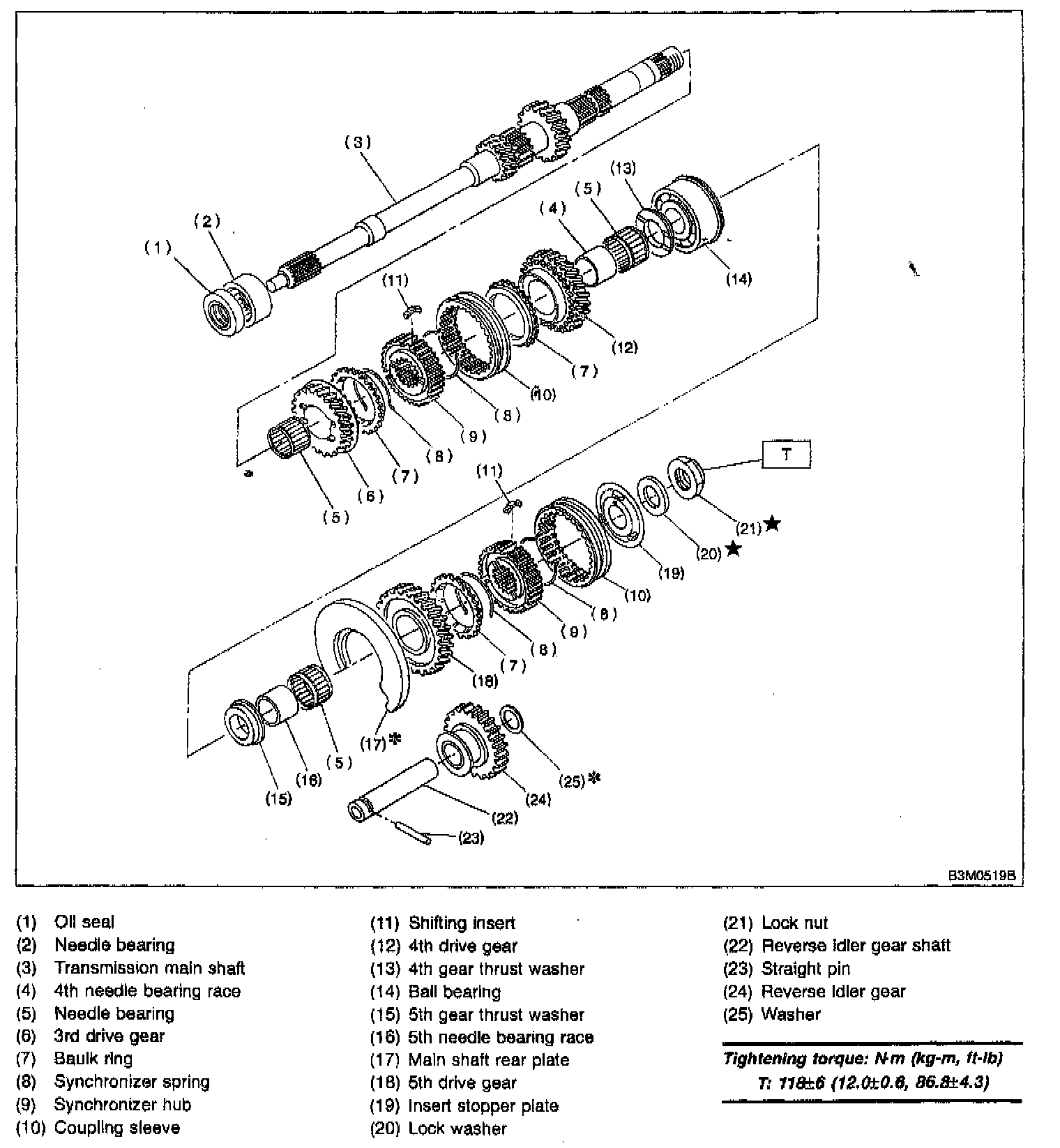

5-spd M/T, Transmission Main Shaft Assembly:

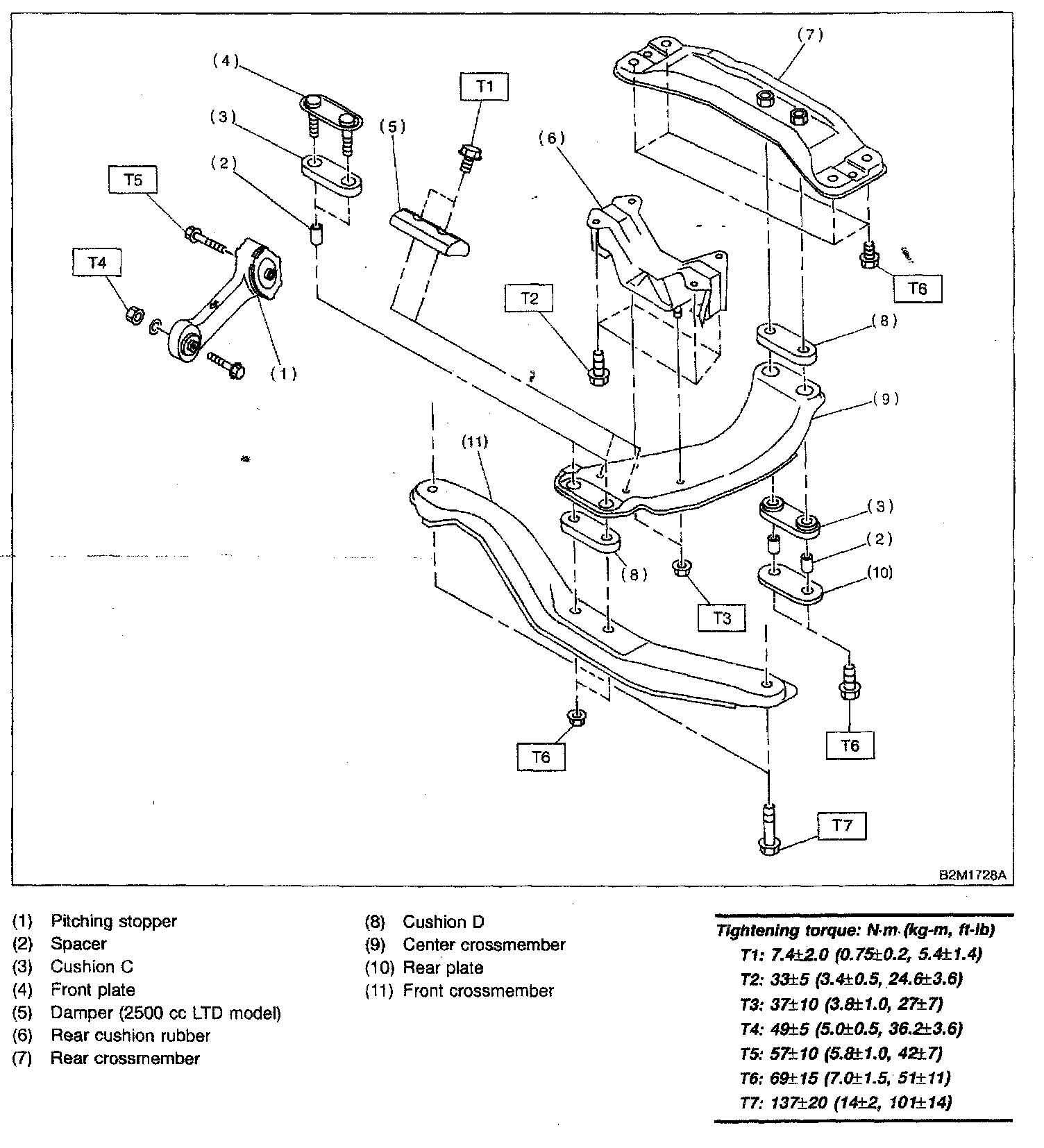

5-spd M/T, Transmission Mounting (Outback):

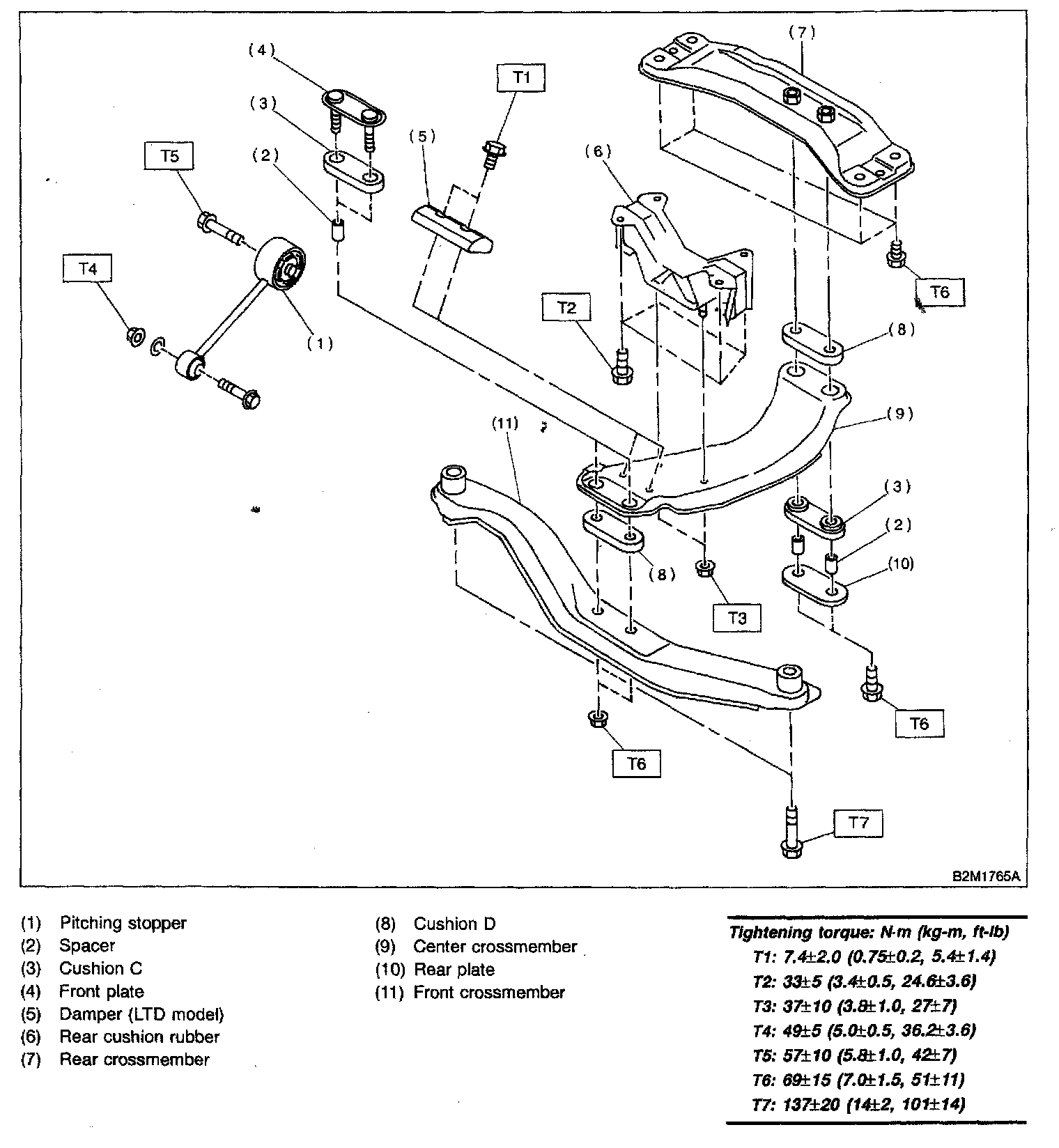

5-spd M/T, Transmission Mounting:

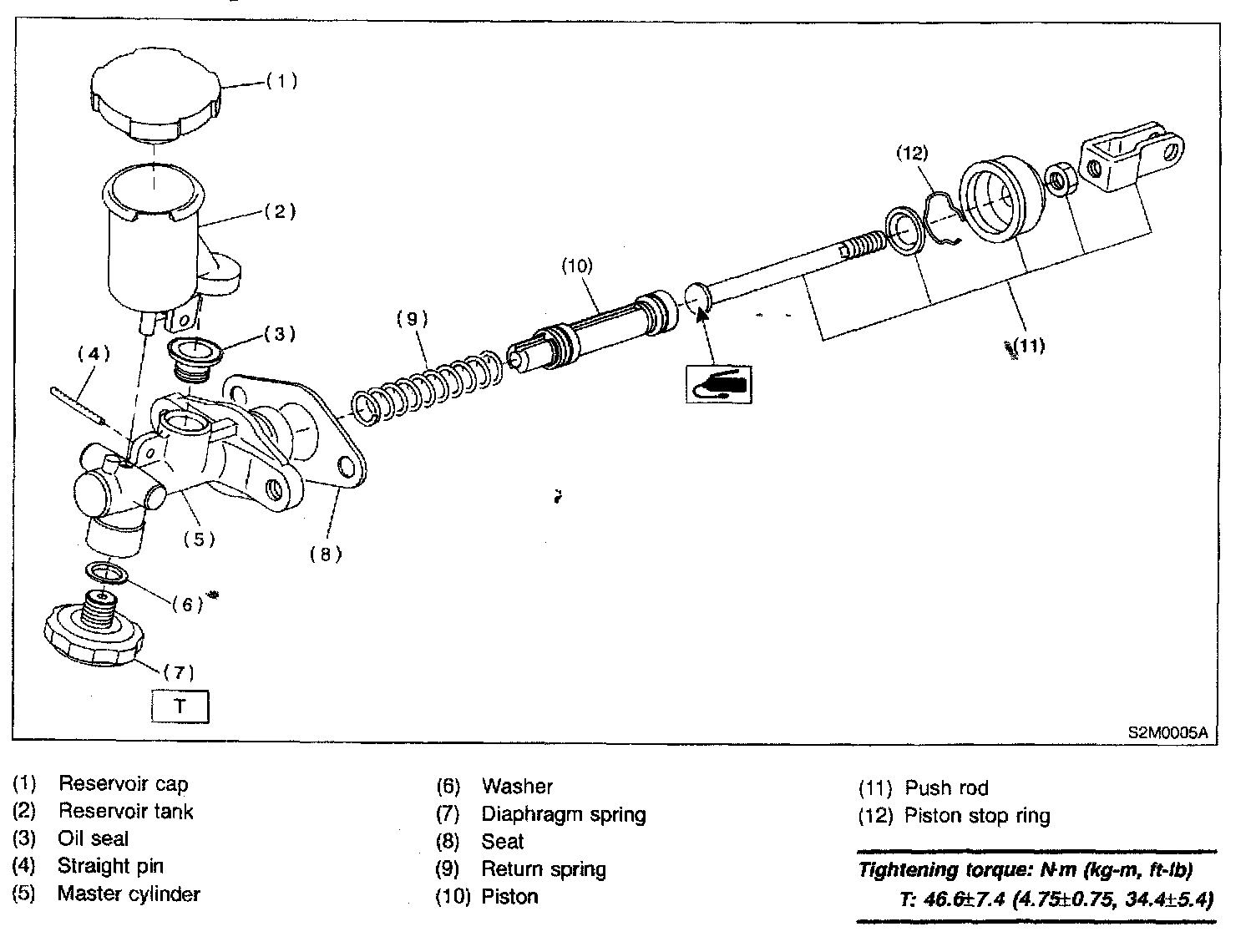

5-spd M/T, Master Cylinder & Reservoir Tank:

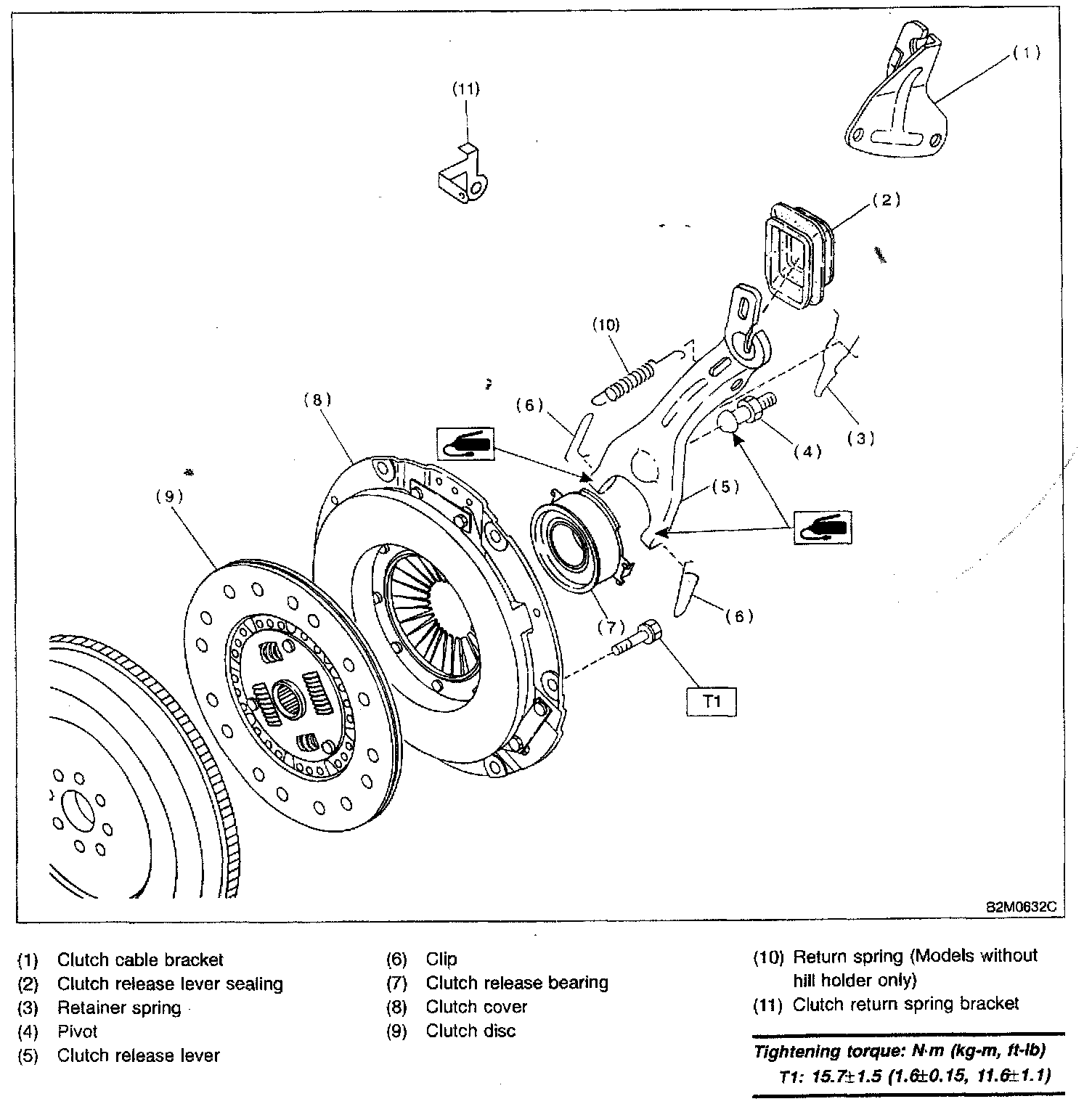

5-spd M/T, Transmission Clutch System (Mechanical Application Type):
