Service Specifications

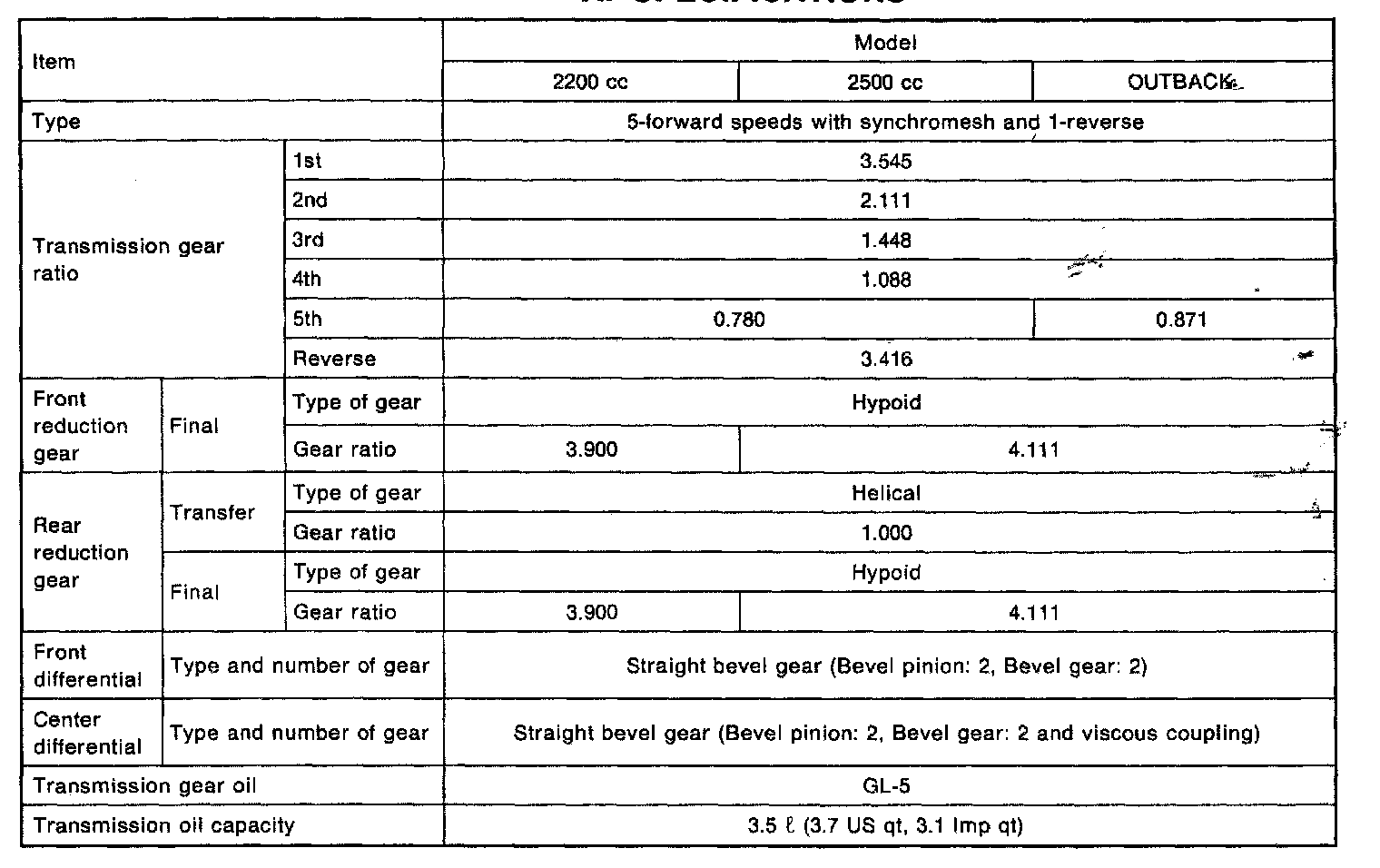

5-spd M/T, Transmission/Differential Gear Ratios:

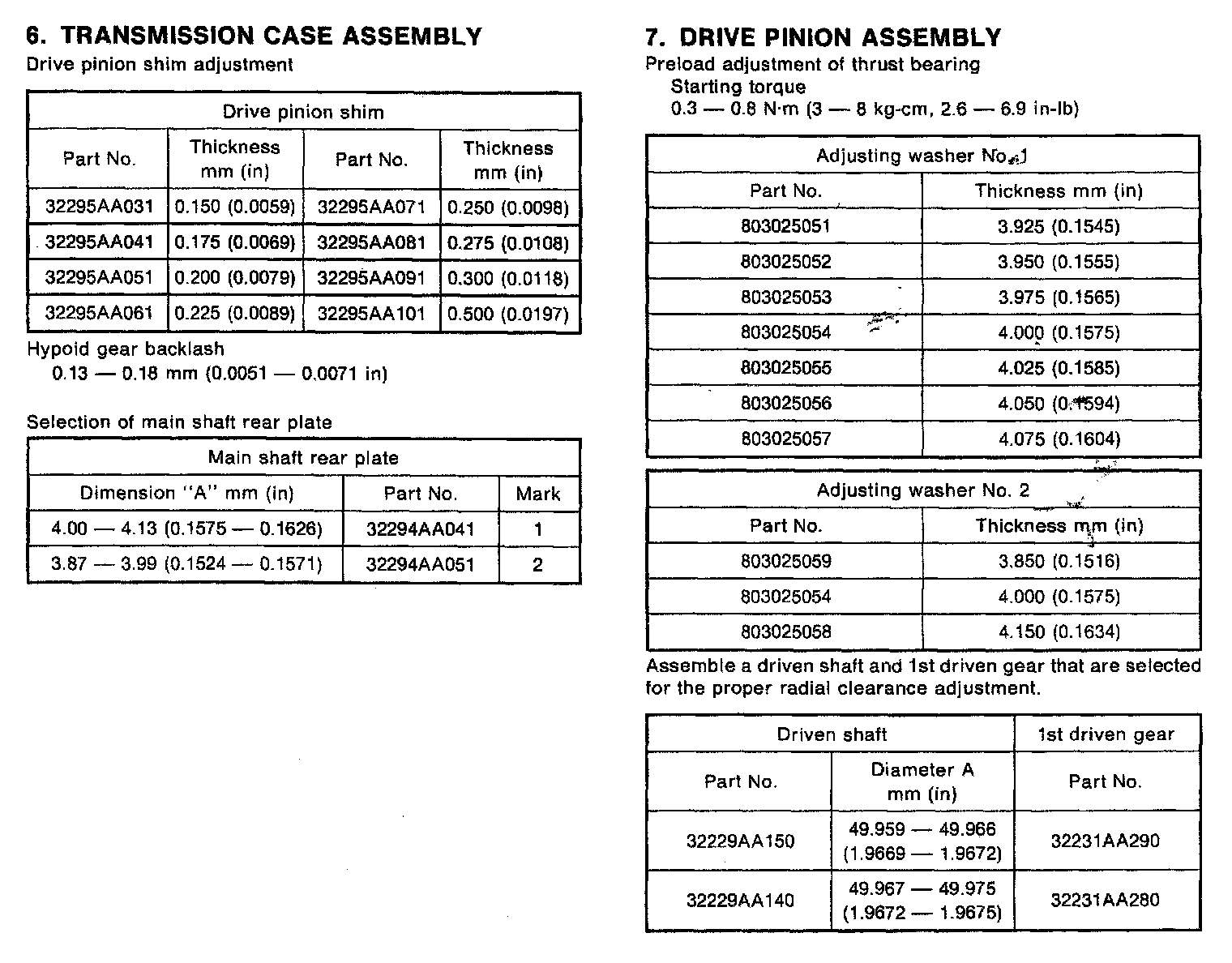

5-spd M/T, Transmission Case & Drive Pinion Assembly:
