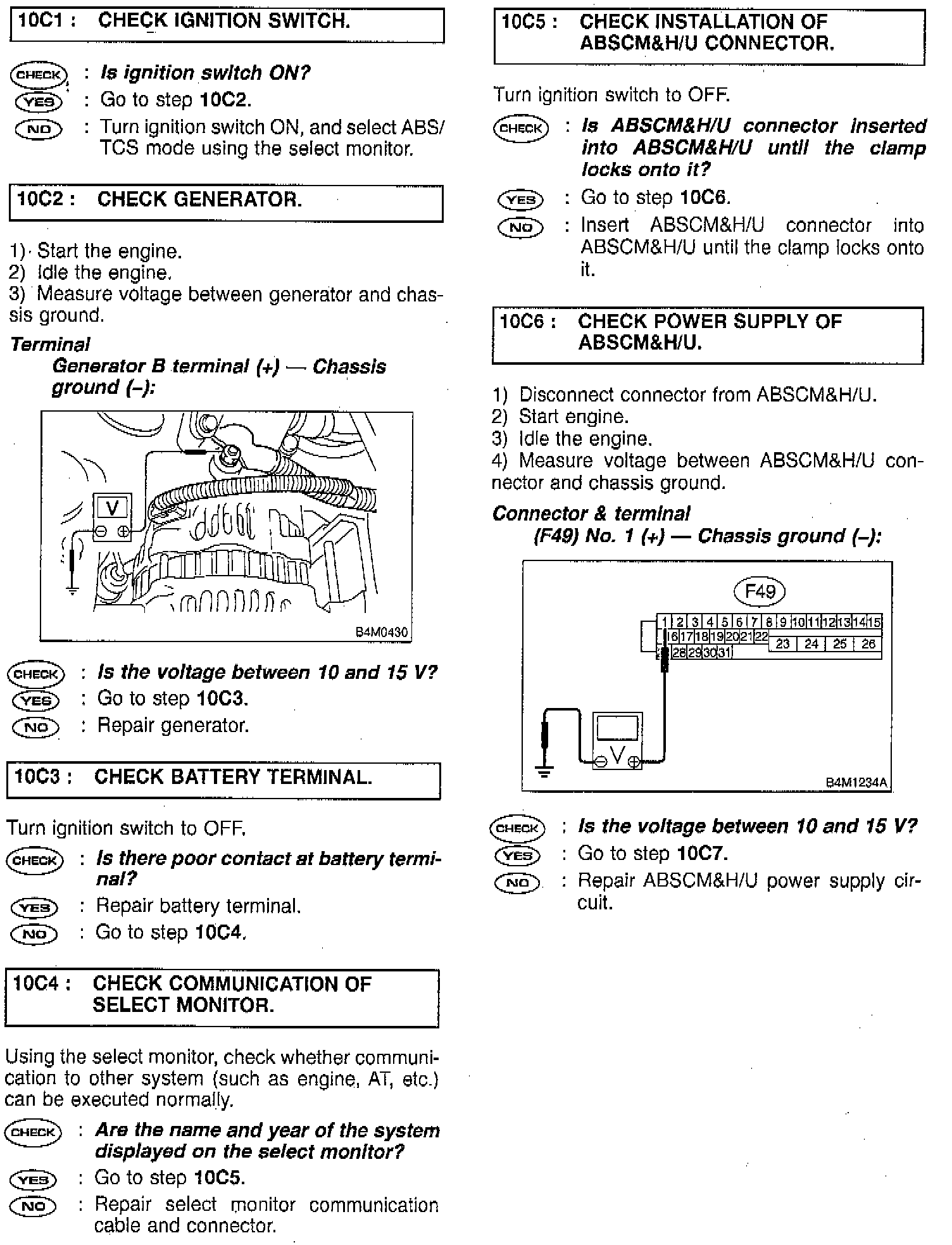

Communication For Initializing Impossible-Select Monitor


Part 1 Of 2:




Part 2 Of 2:

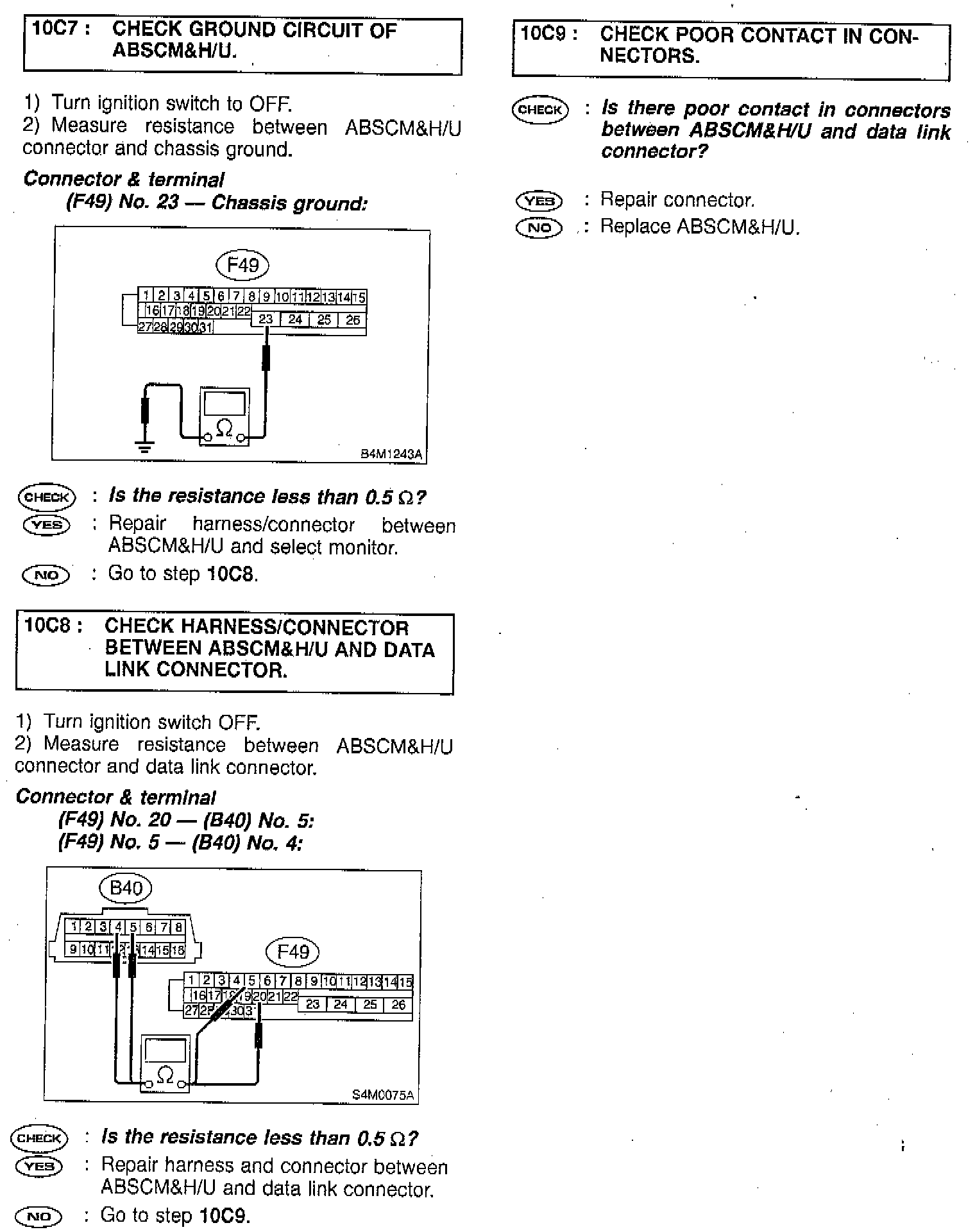

DIAGNOSIS:
Faulty harness connector

TROUBLE SYMPTOM:
ABS warning light remains on.





WIRING DIAGRAM:
