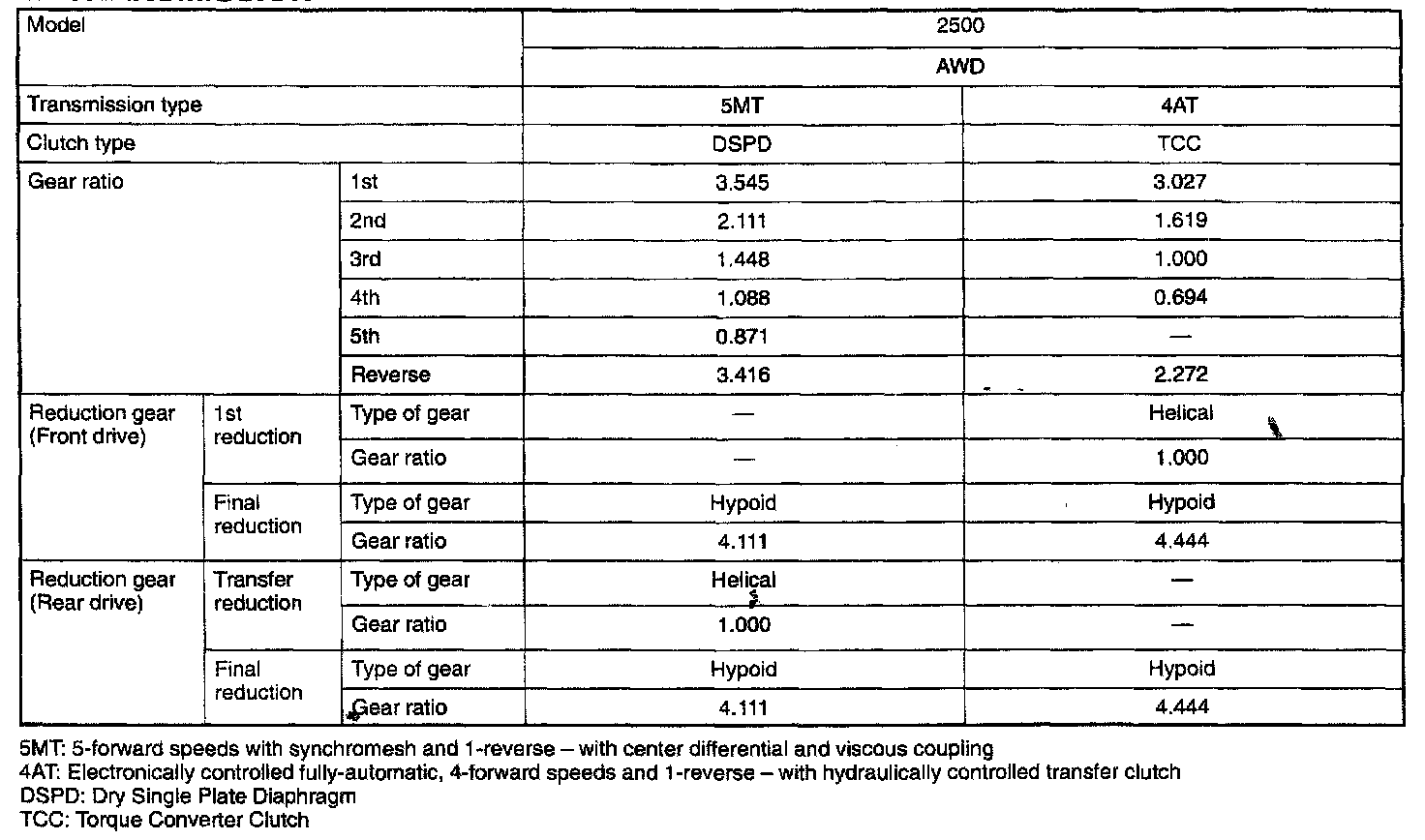

5-spd M/T/4-spd A/T, Transmission Gear Ratio (2.5L):

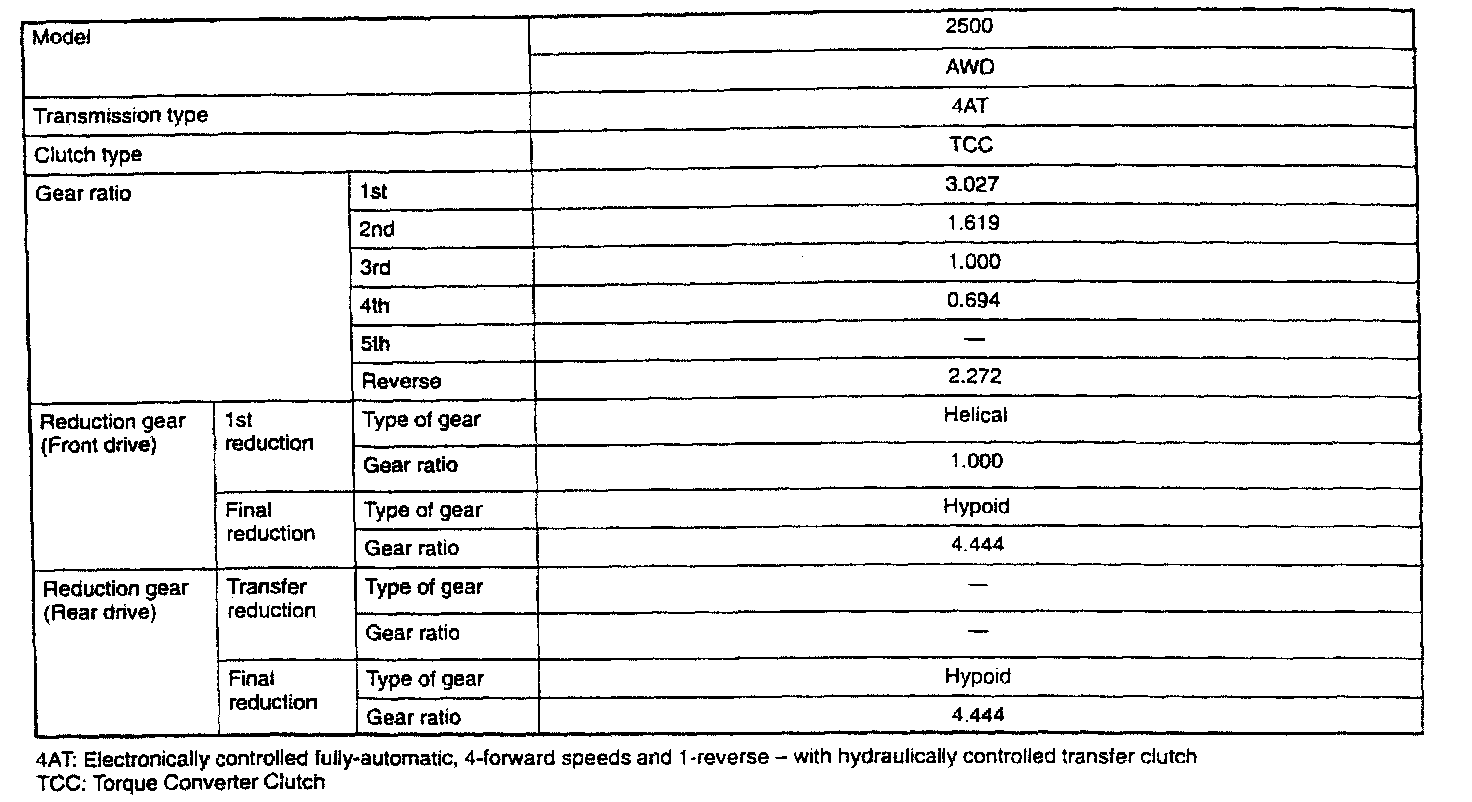

4-spd A/T, Transmission/Differential Gear Ratios (2.5L):
