Check FWD Switch
CHECK FWD SWITCHStep 9P1:

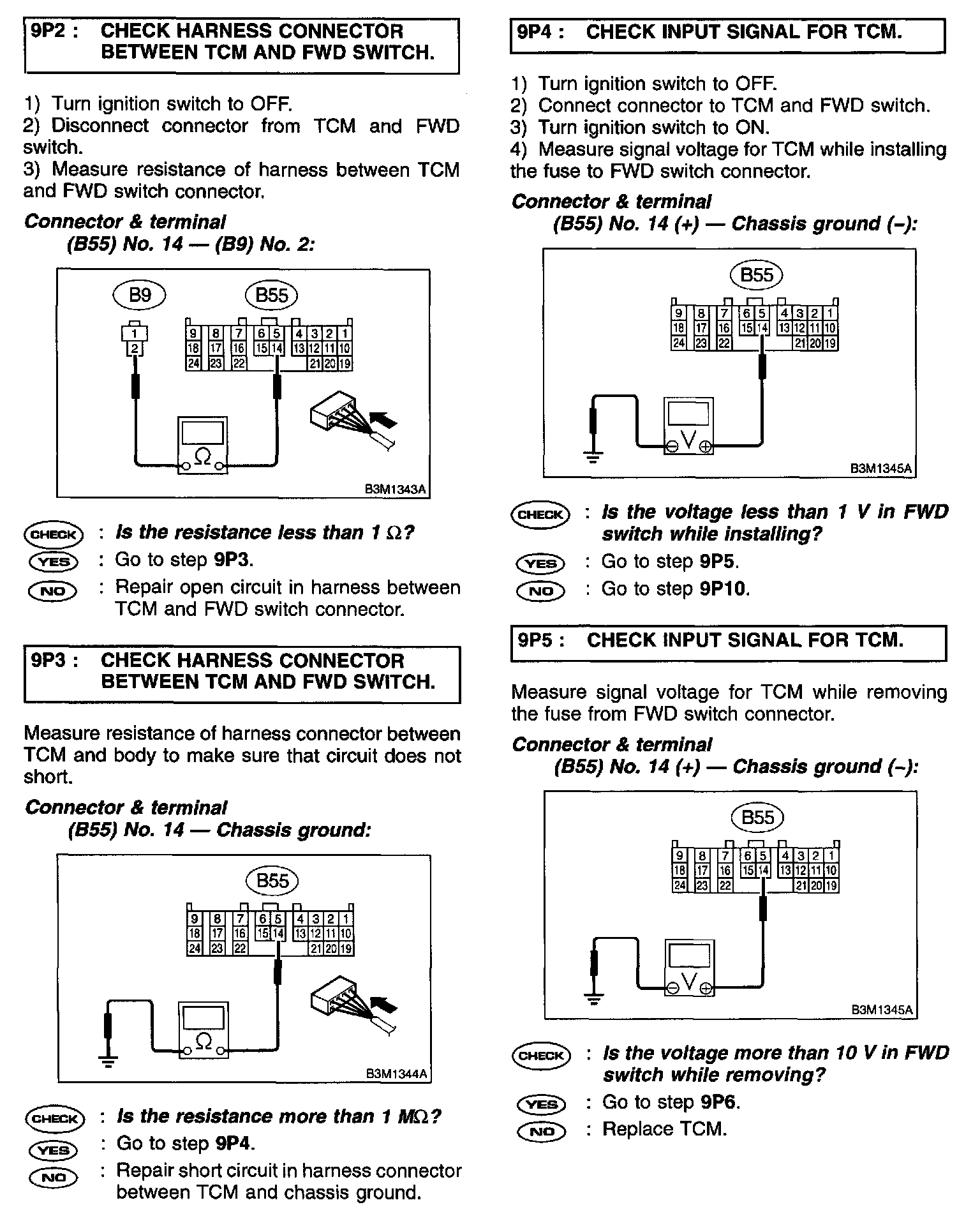

Steps 9P2 - 9P5:

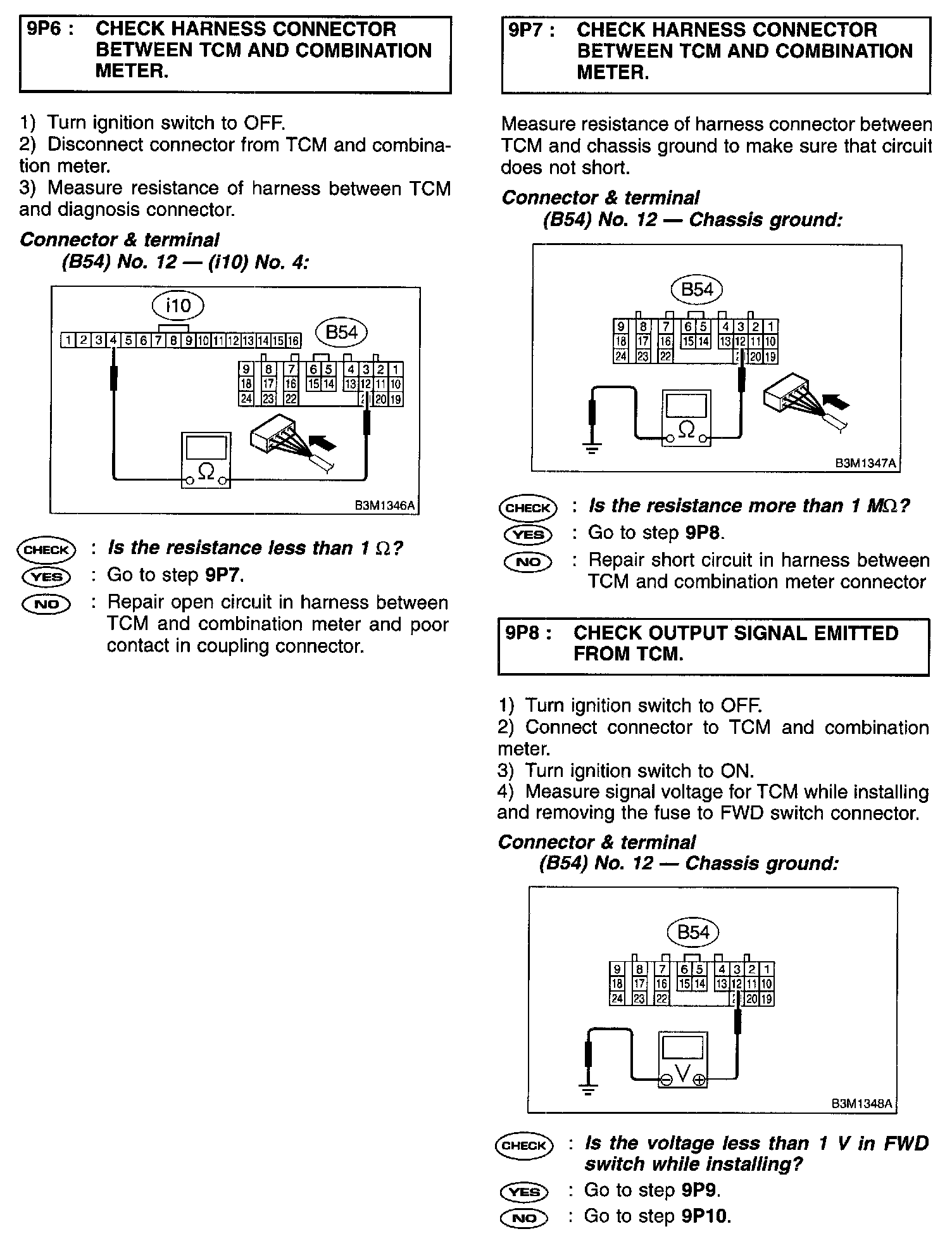

Steps 9P6 - 9P8:

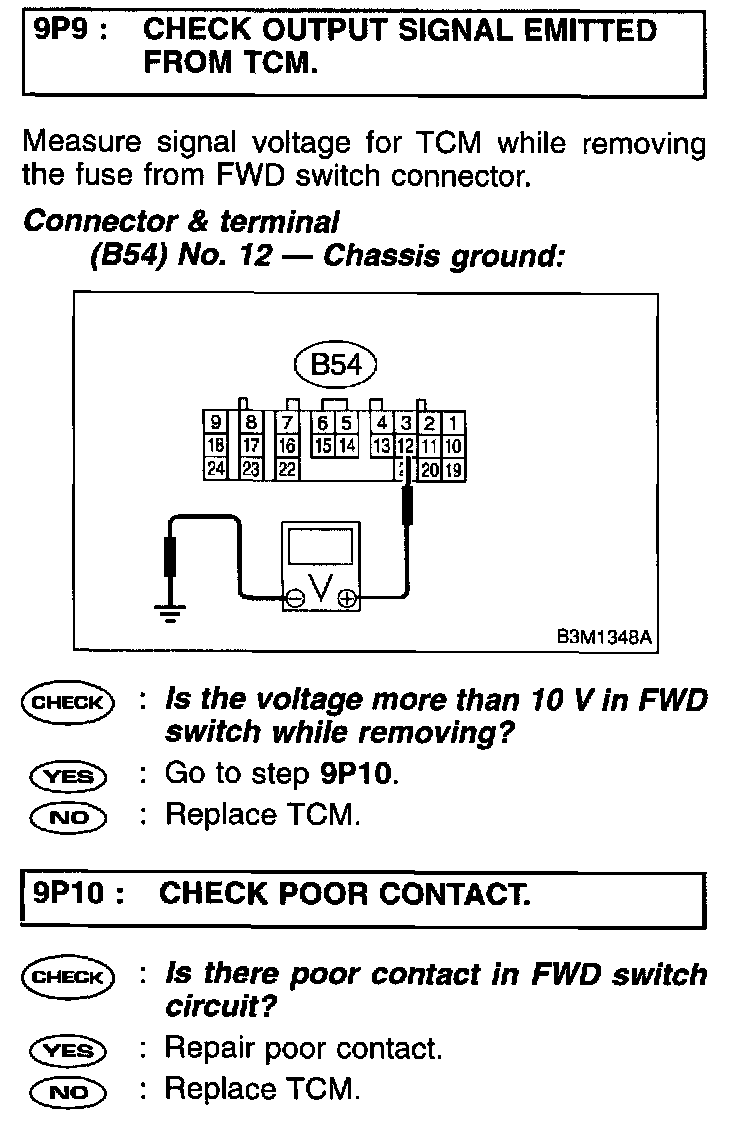

Steps 9P9 - 9P10:
DIAGNOSIS:
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or short.

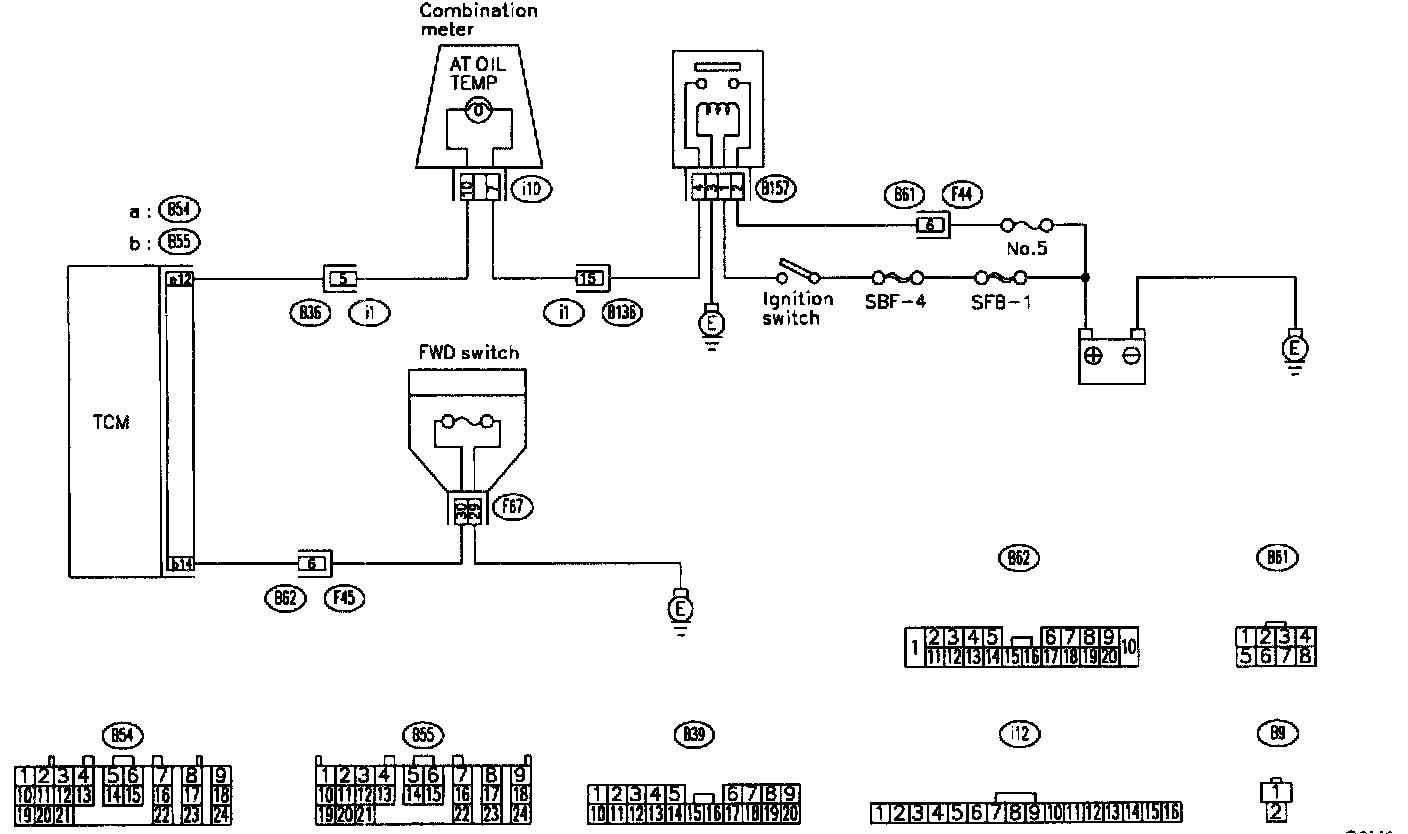

WIRING DIAGRAM:
DIAGNOSIS:
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or short.
WIRING DIAGRAM:
