LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Subaru
>>
1999
>>
Impreza L Coupe F4-2.2L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Control Module Pinout Values
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Control Module Pinout Values

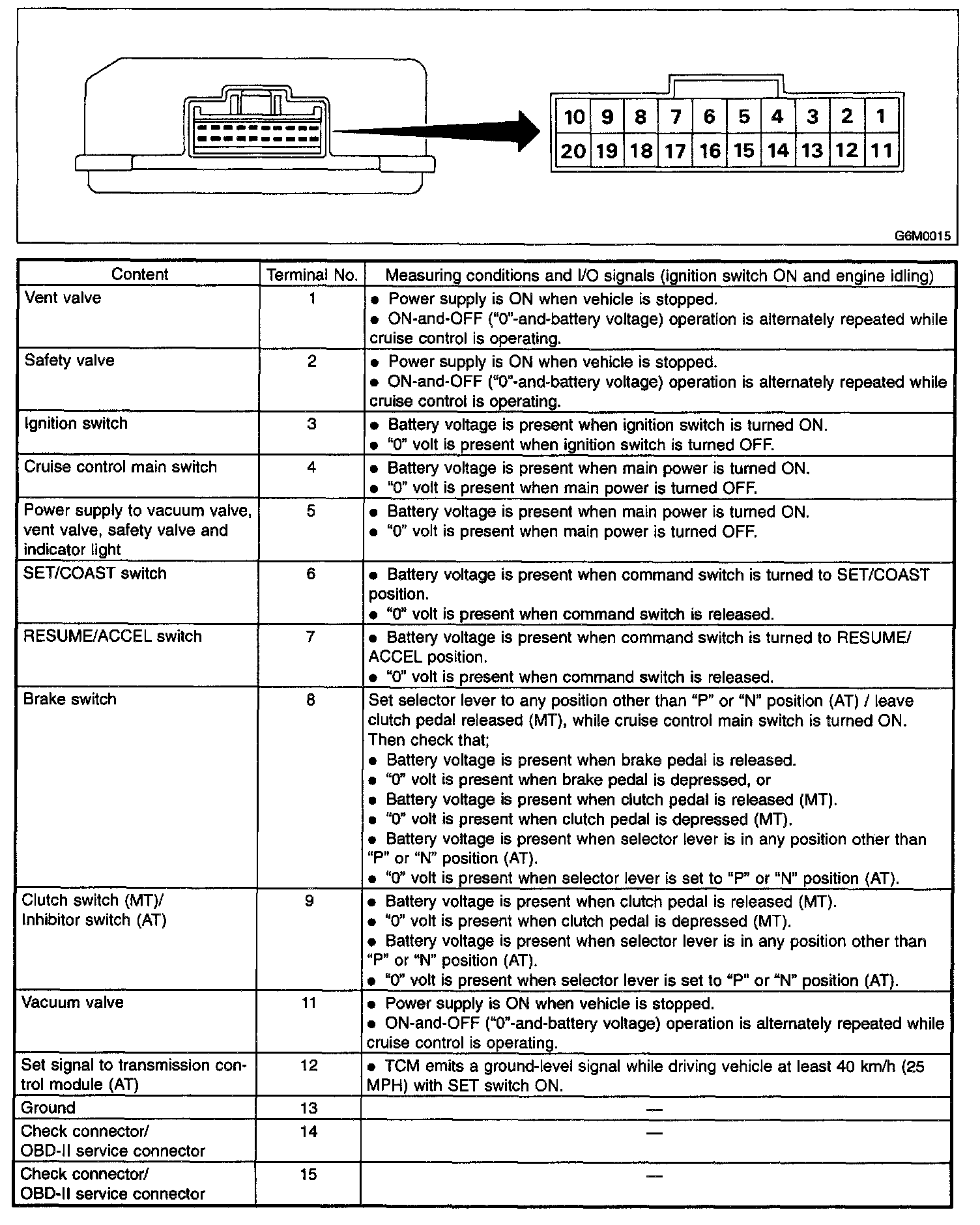

Control Module I/O Signal Part 1:

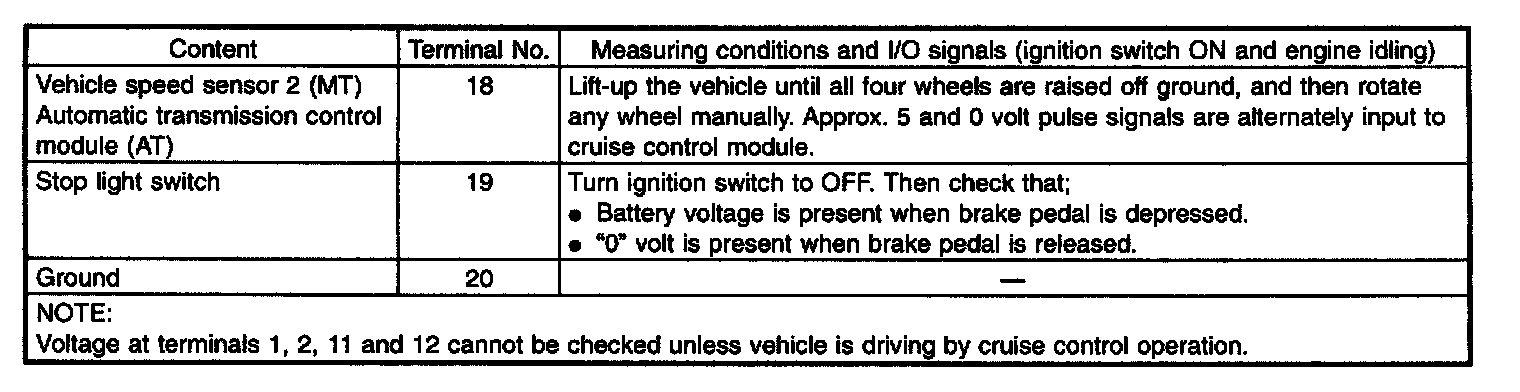

Control Module I/O Signal Part 2:
