Basic Diagnostic Chart

Basic Diagnostic Chart:

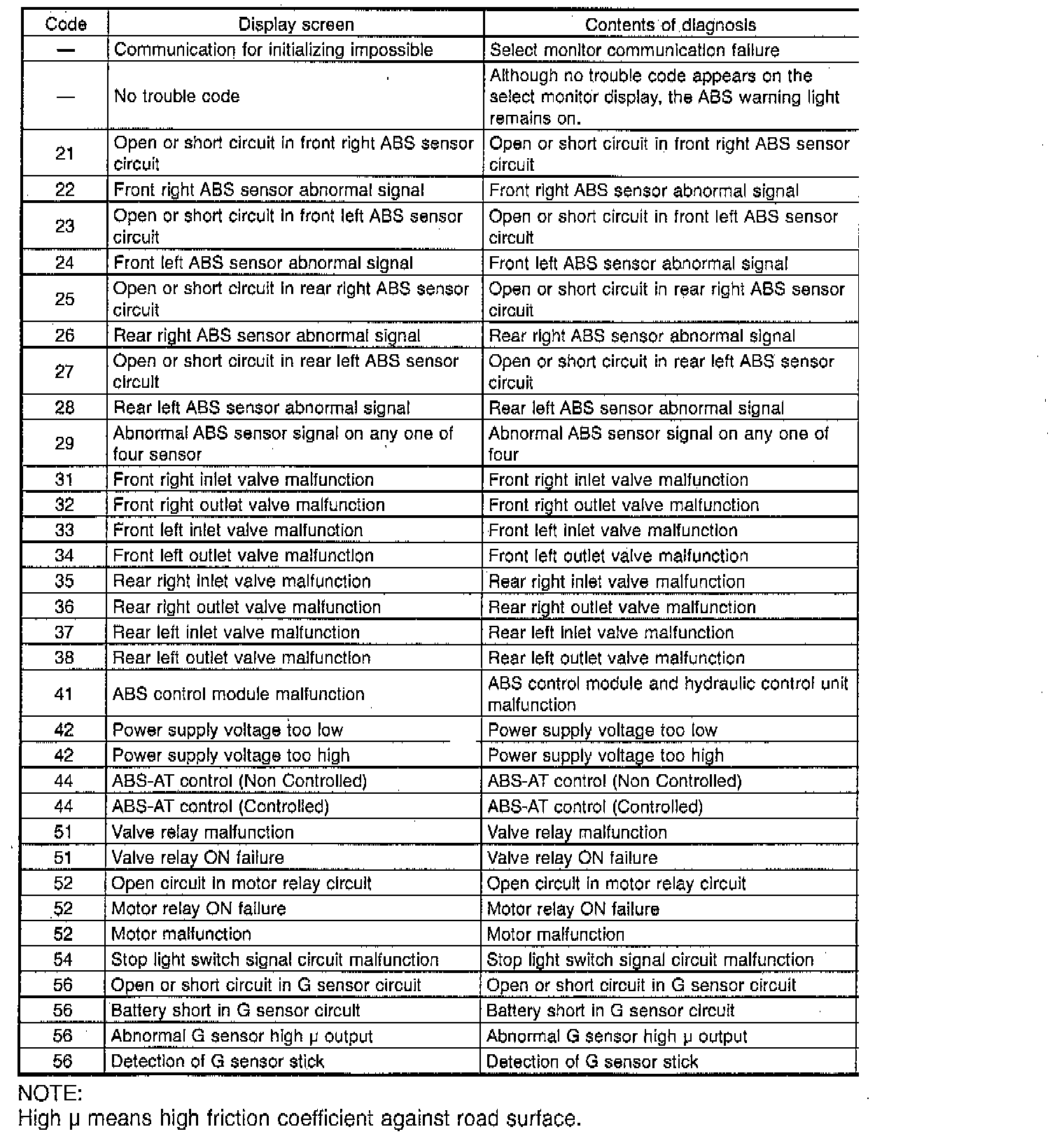

List Of Diagnostic Trouble Code:

CAUTION:
Remove foreign matter (dust, water, etc.) from the ABS Control Module And Hydraulic Control Unit (ABSCM&H/U) connector during removal and installation.

NOTE:
To check harness for broken wires or short circuits, shake it while holding it or the connector.
