Control Module Power Supply and Ground Line
B: CONTROL MODULE POWER SUPPLY AND GROUND LINE

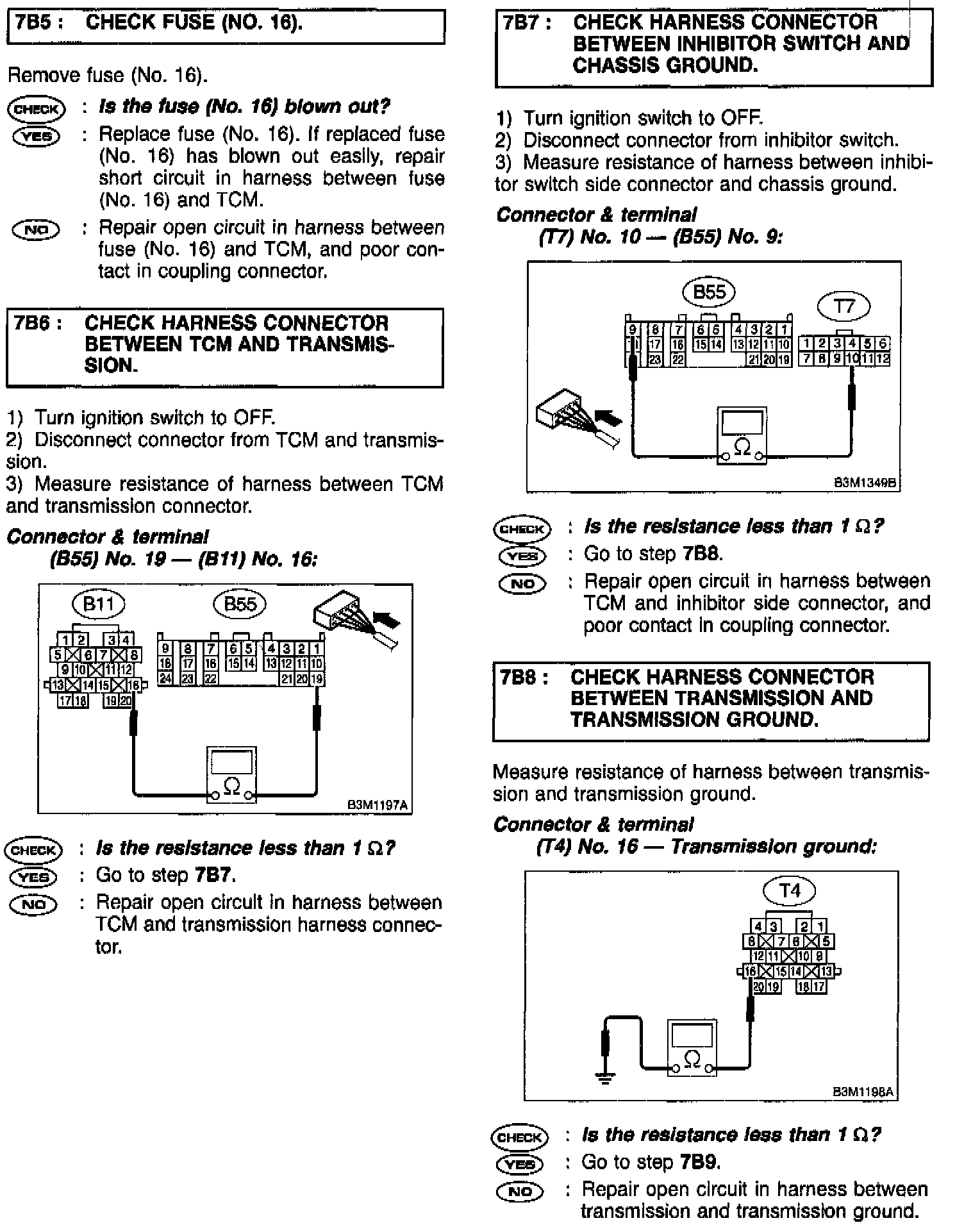

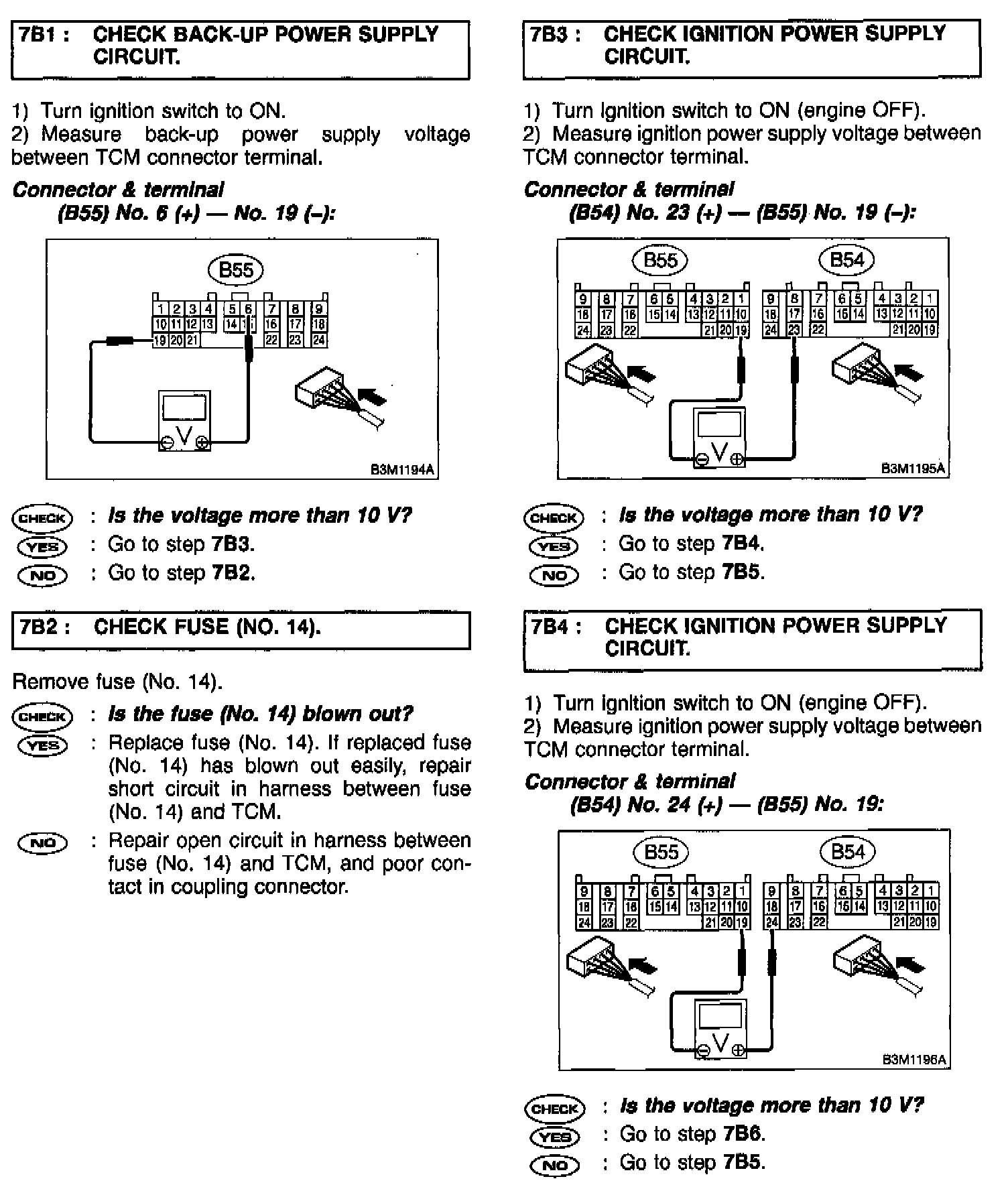

DIAGNOSIS:
WIRING DIAGRAM:
