AWD System

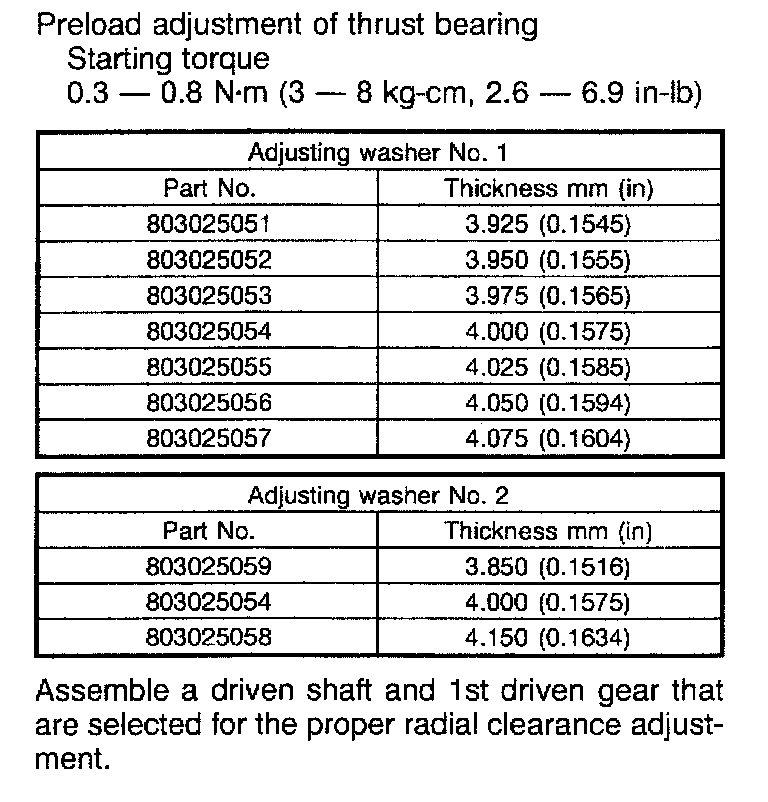

5-spd M/T, Transmission Drive Pinion Assembly:





5-spd M/T, Transmission Drive Pinion Assembly:





5-spd M/T, Transmission Front Differential:





4-spd A/T, Transmission Final Reduction Service Data:





4-spd A/T, Transmission Drive Pinion Shim Application:
