System Application

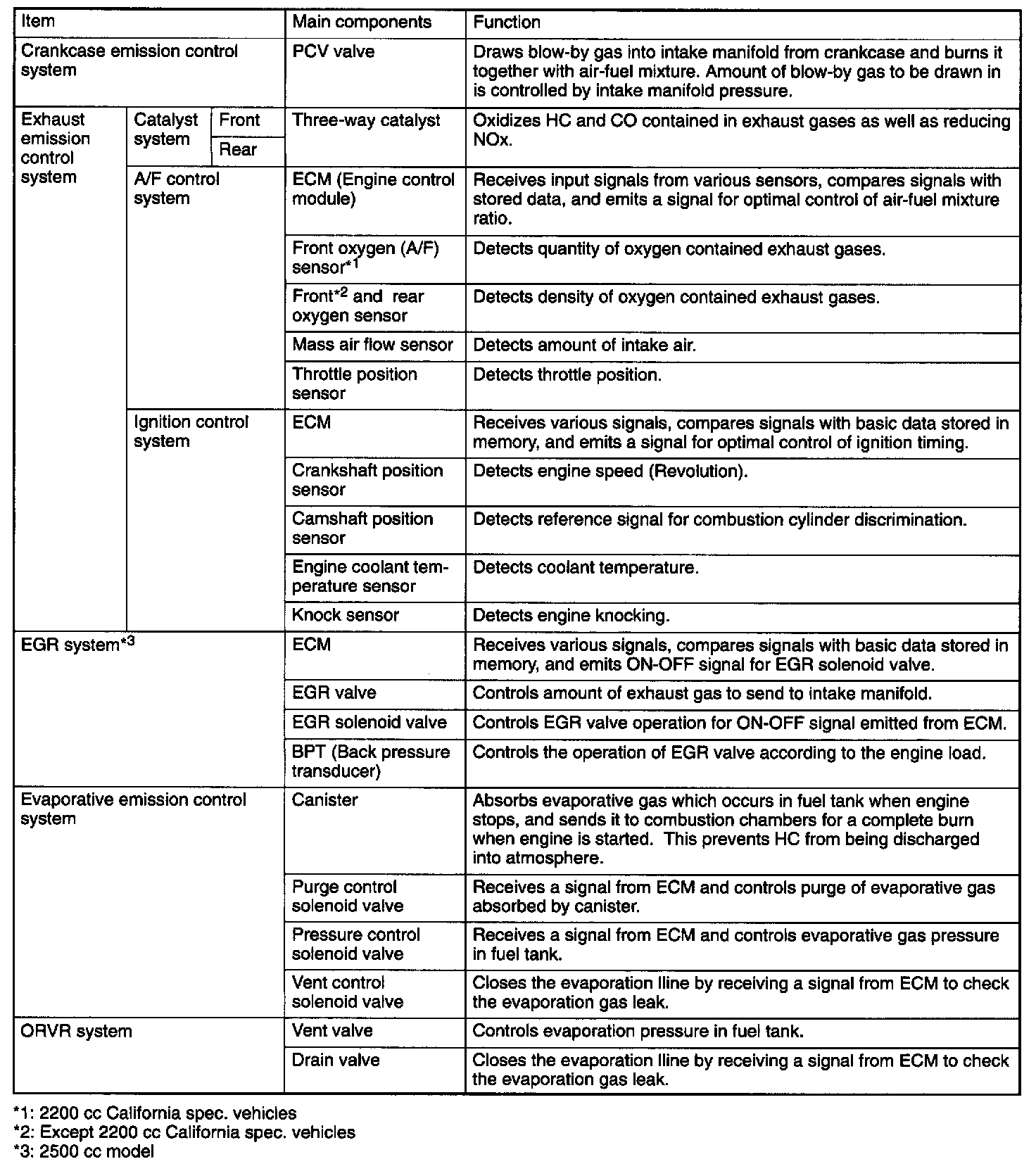

There are three emission control systems which are as follows:
- Crankcase emission control system
- Exhaust emission control system
- Three-way catalyst system
- A/F control system
- Ignition control system
- EGR system
- Evaporative emission control system
- ORVR (On-board Refueling Vapor Recovery) System
