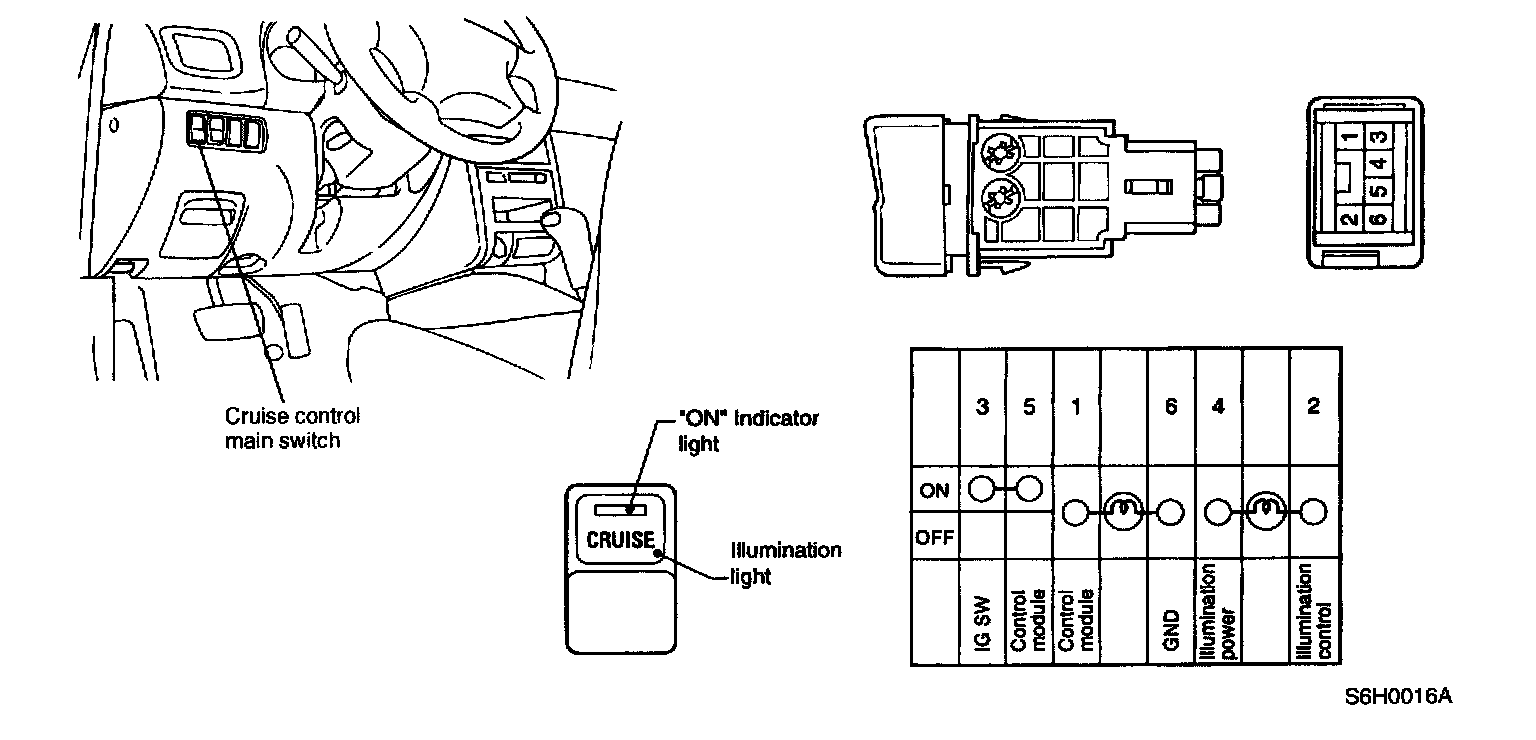

Main Switch




- The main switch is the main power supply switch of the cruise control module and has a built-in power indicator and night illumination light.
- When the ignition switch is placed in the OFF position with the main switch at ON, the main switch is also simultaneously forced to OFF In this condition, even if the ignition switch is placed in the ON position again, the main switch will stay in the OFF state.
