Current Powertrain Diagnostic Data (Mode $01)

Refers to data denoting the current operating condition of analog input/output, digital input/output and/or the powertrain system.

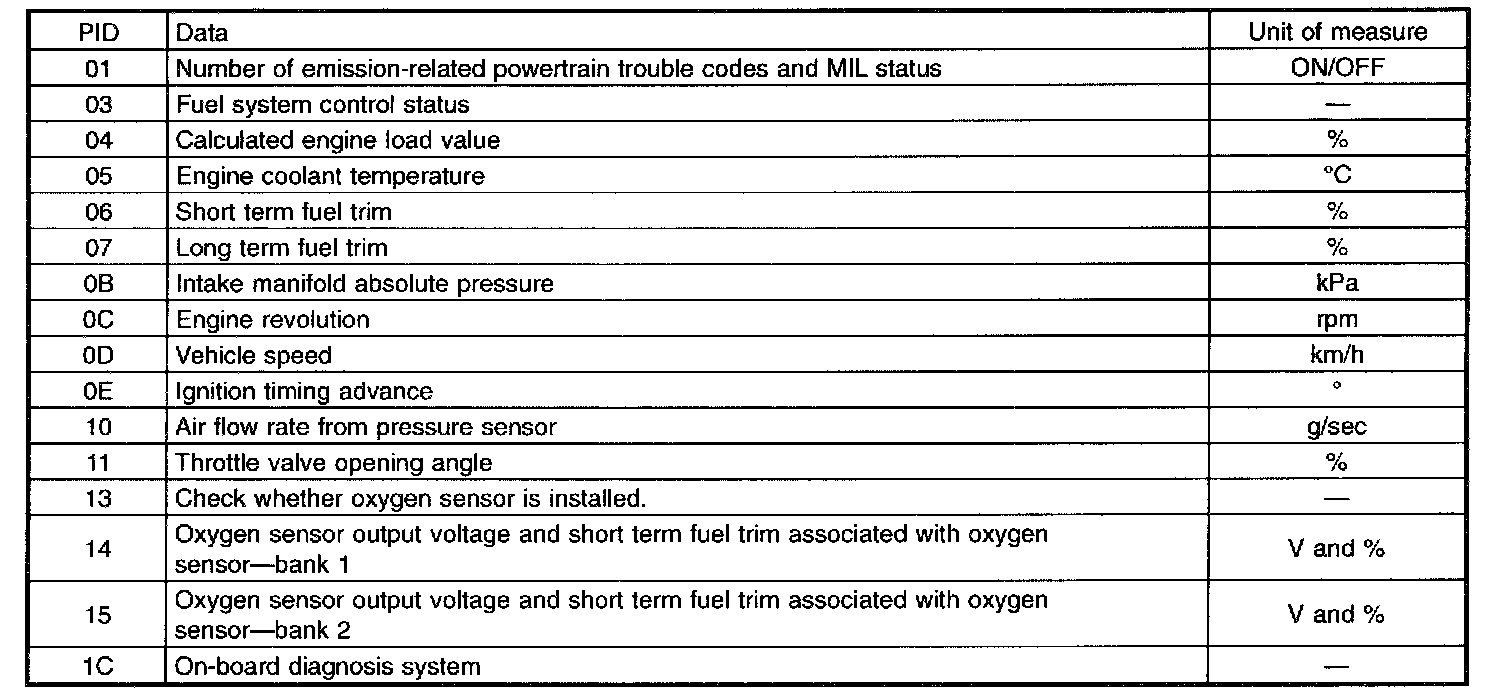

A list of the support data and PID (Parameter Identification) codes are shown in the table.

NOTE: Refer to OBD-II general scan tool manufacturer's instruction manual to access generic OBD-II PIDs (MODE $01)
