Control Module: Testing and Inspection





Connector Views

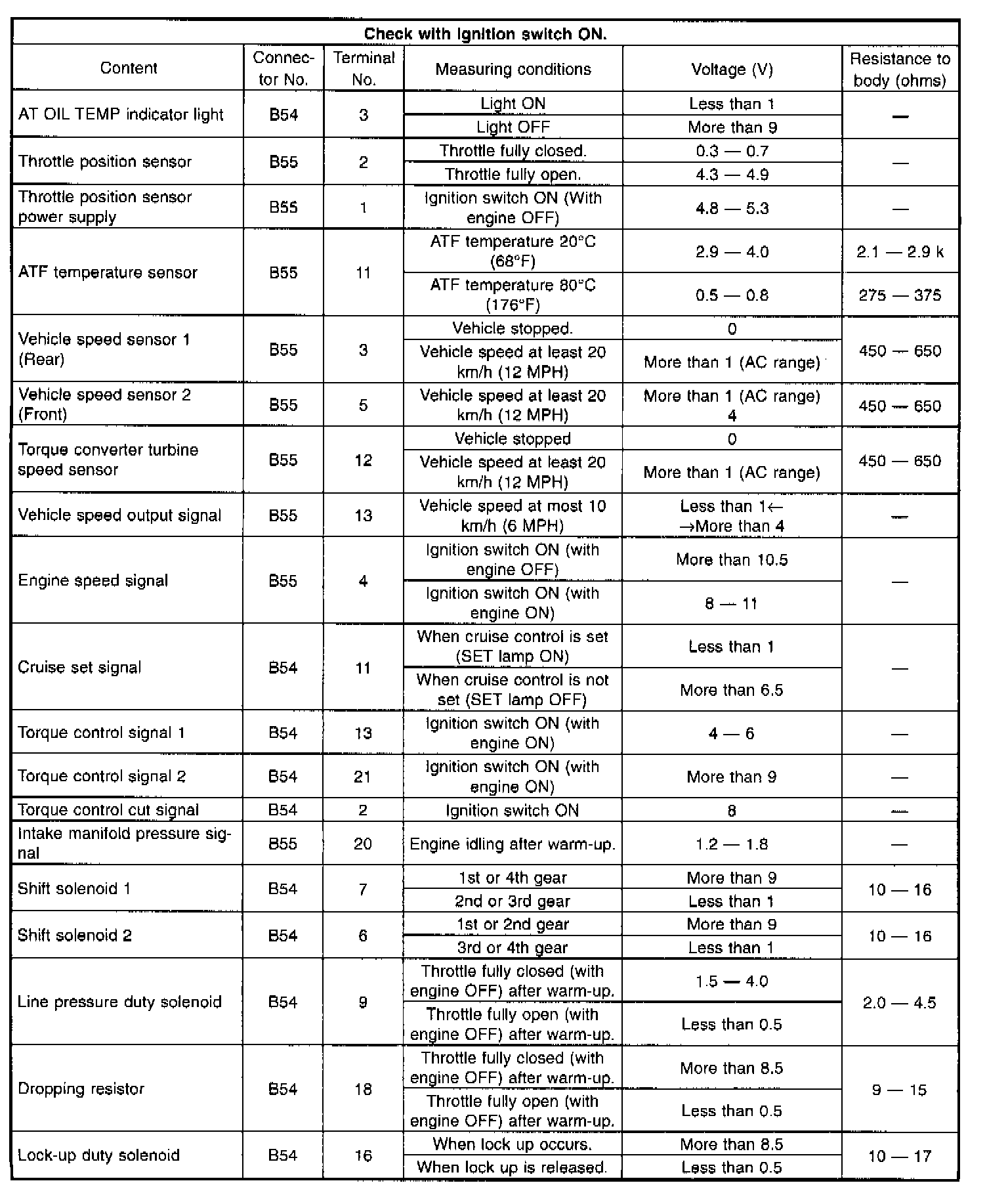

Description Part 1 of 2

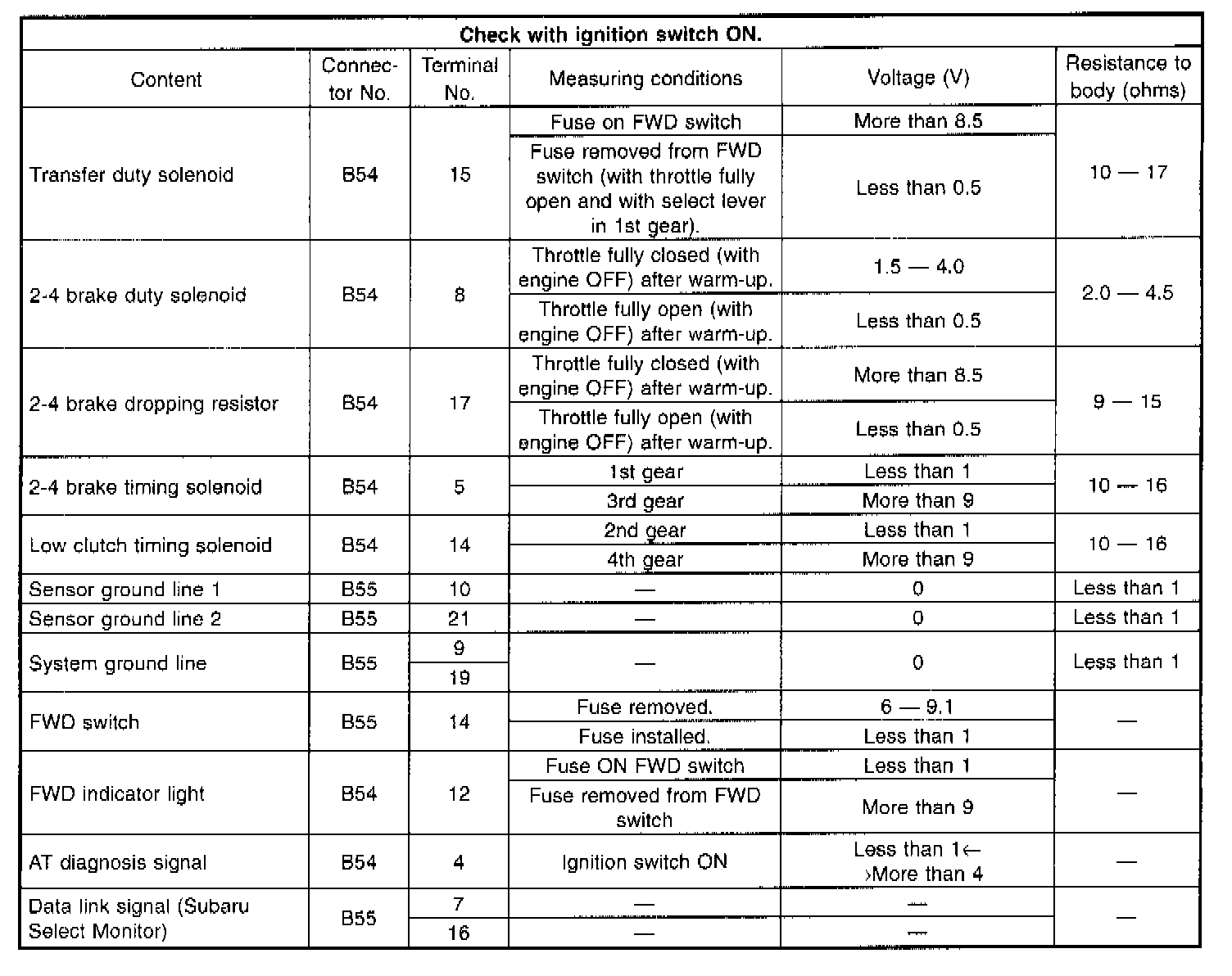

Description Part 2 of 2

Transmission Control Module (TCM) I/0 Signal
