Differential Assembly
2. Rear
Differential Assembly

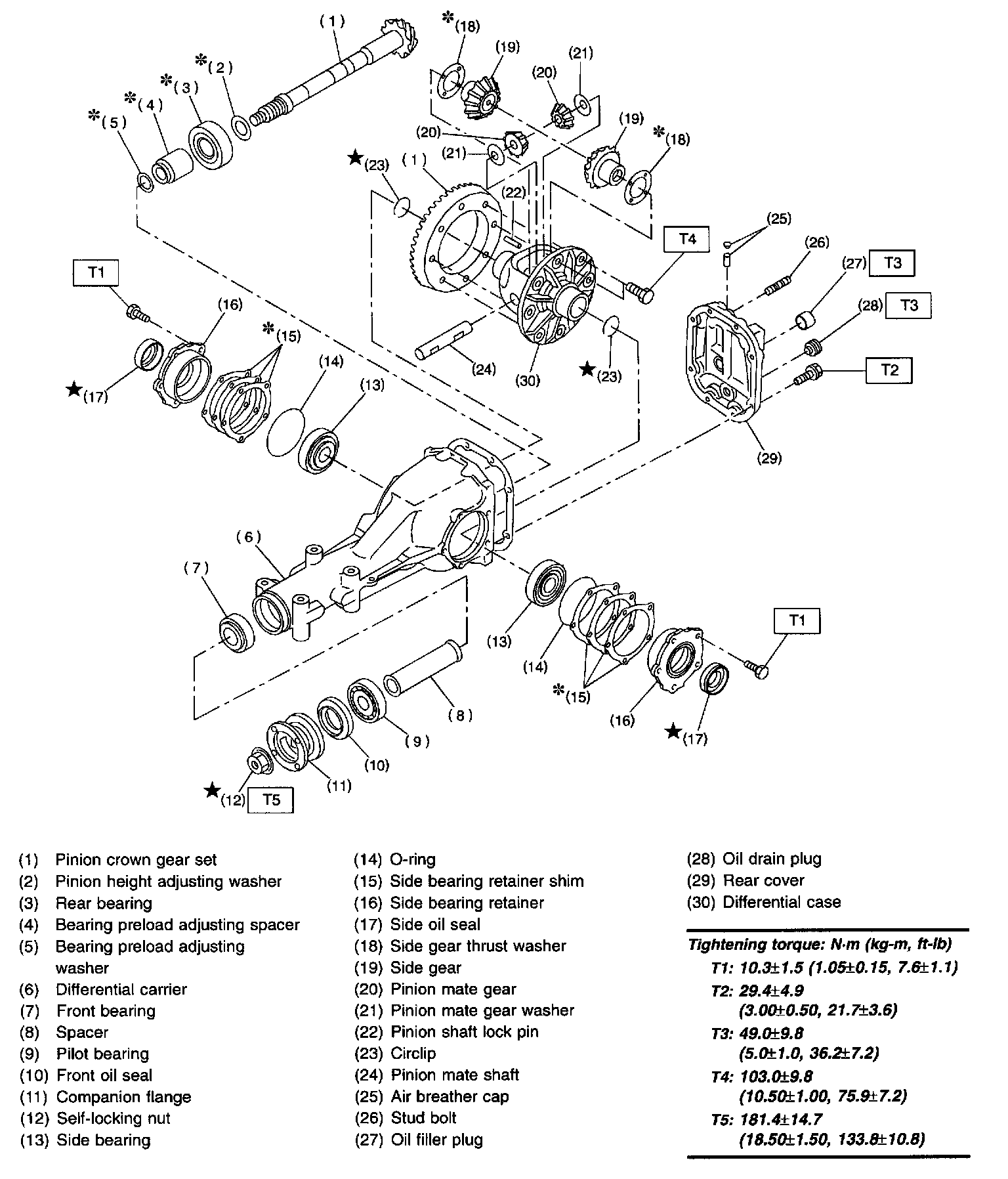

A: WITHOUT LSD

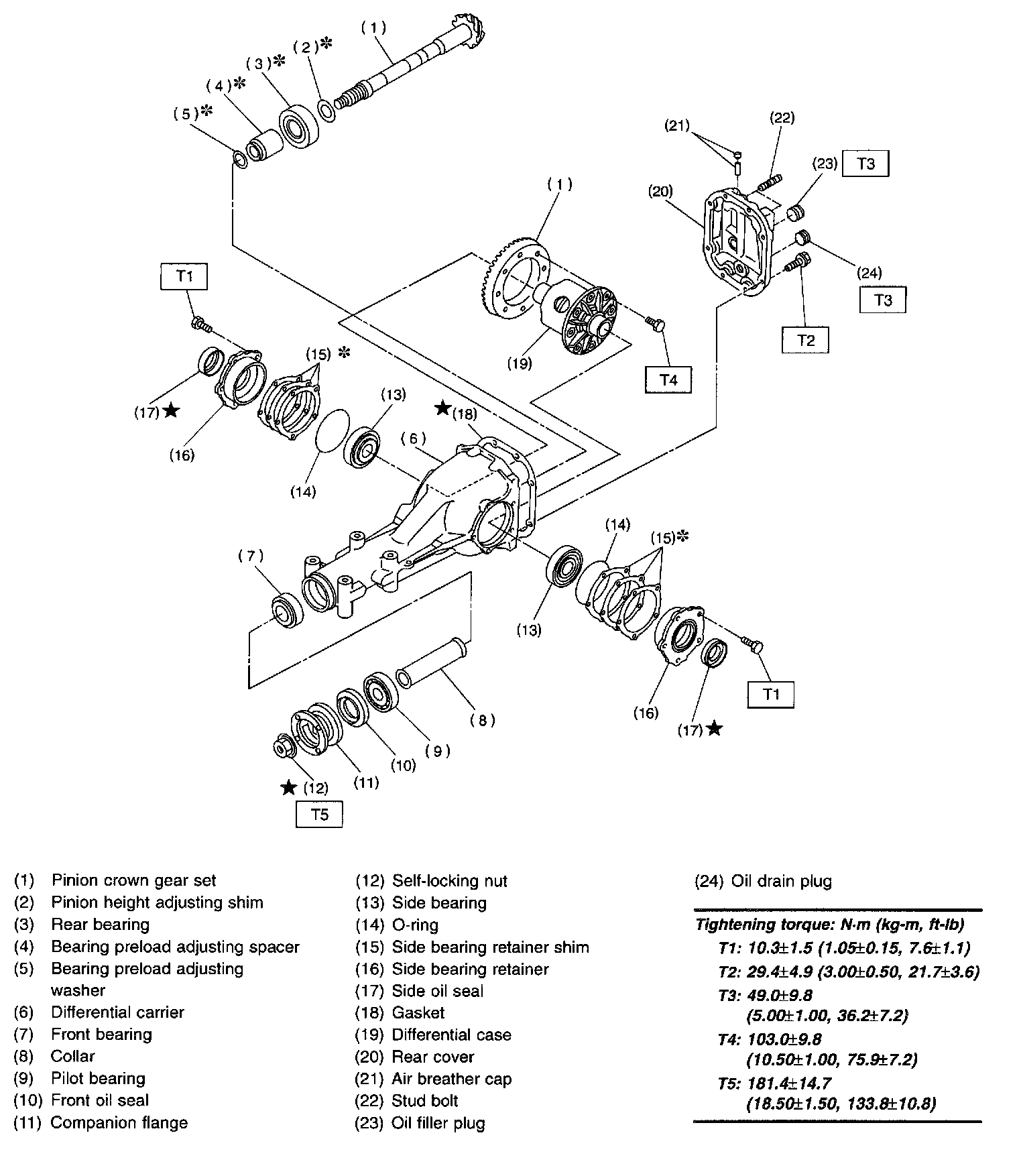

B: WITH LSD

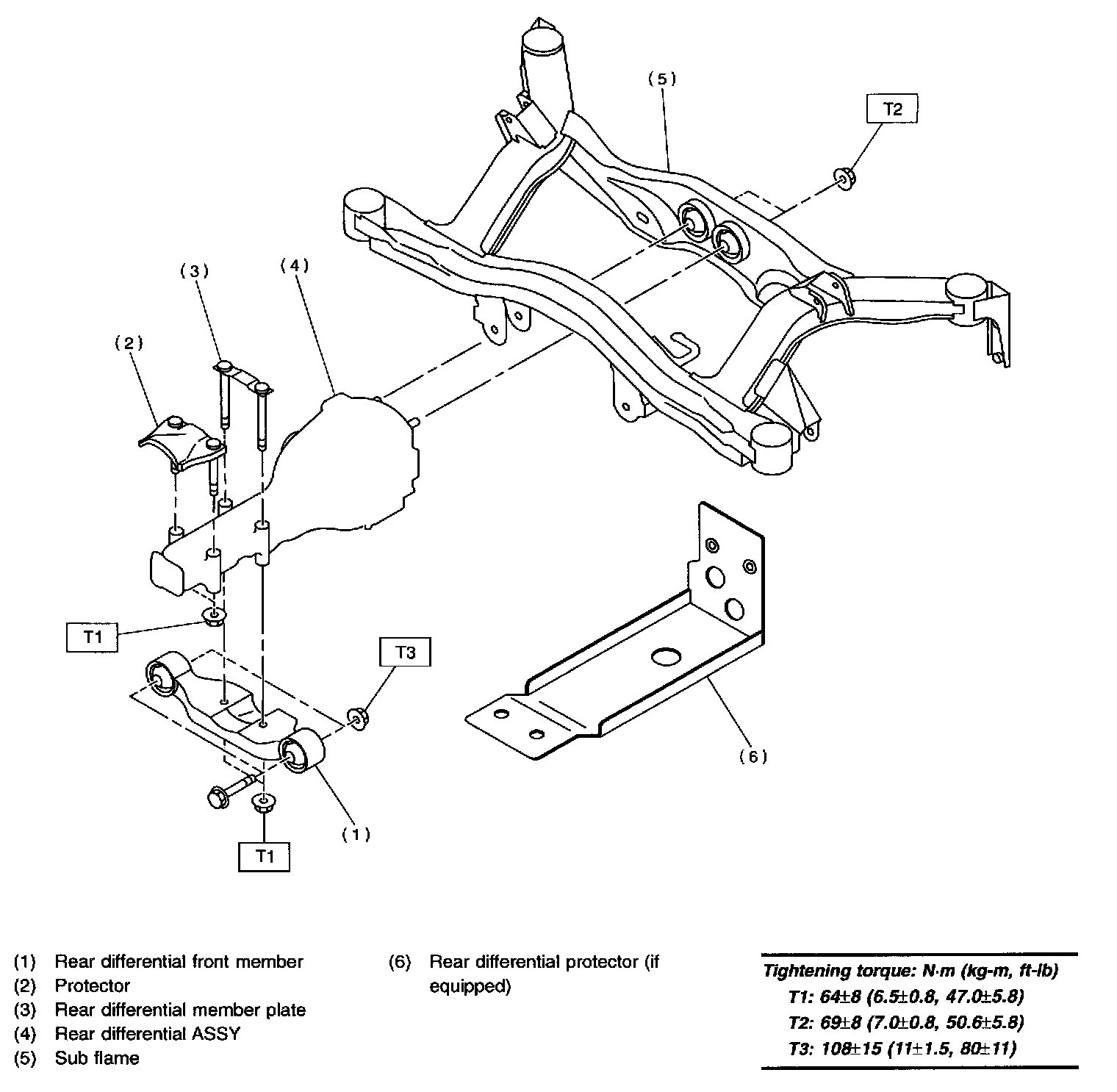

3. Rear Differential Mounting System
