Cruise Control Module: Testing and Inspection

Control Module I/O Signal - Connector View:

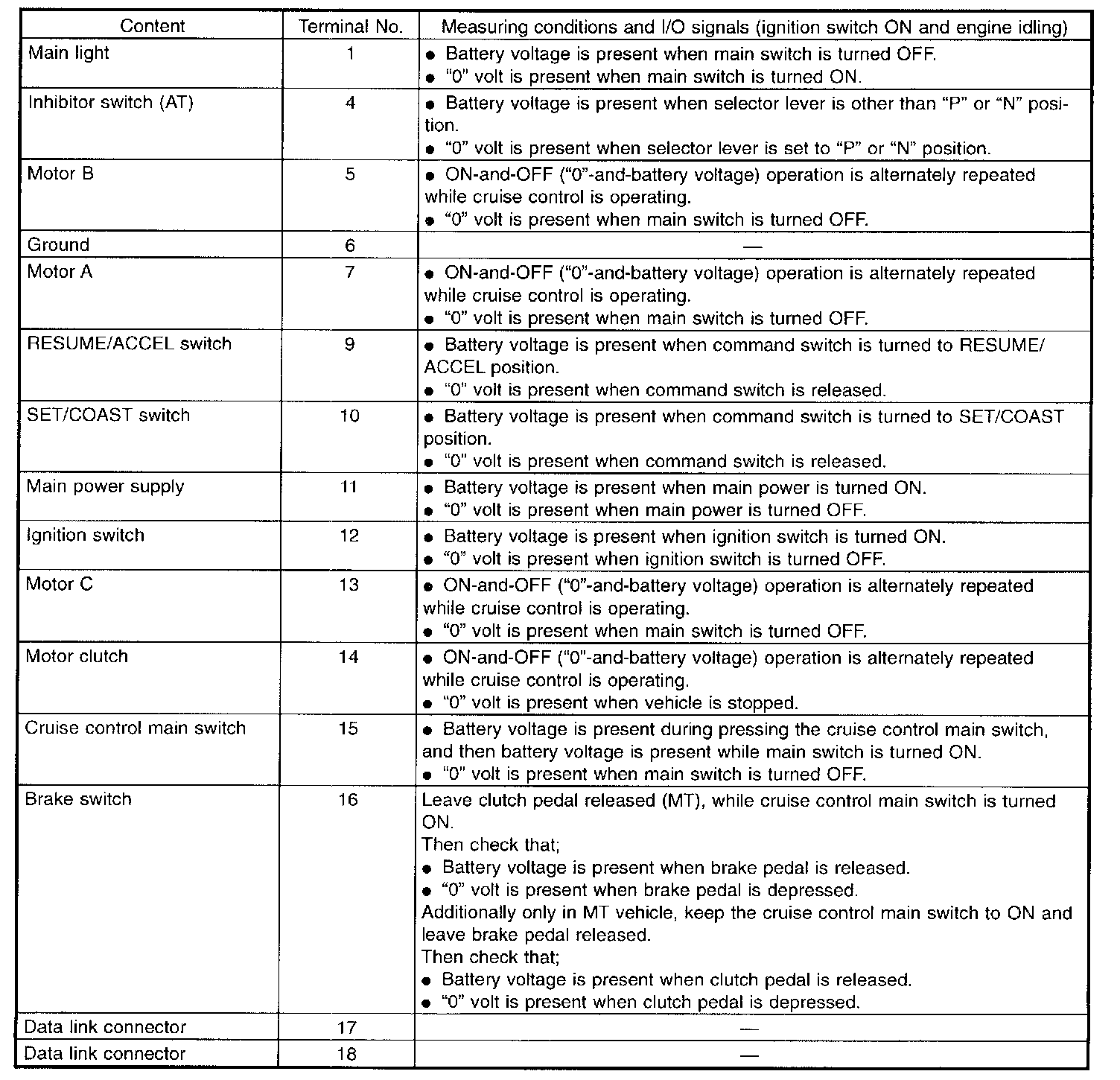

Control Module I/O Signal - Connector Pin-Outs[1 -18]:



Control Module I/O Signal - Connector Pin-Outs[19 - 20]:
