Exterior/Interior Trim: Spoiler: Removal
Open trunk lid.
Remove electrical connector (a) of high-mounted stop light.
Remove mounting nut of rear spoiler to remove rear spoiler.
CAUTION:
When removing nut, do not drop it into trunk lid.
Pay attention to avoid damage during removal or installation.

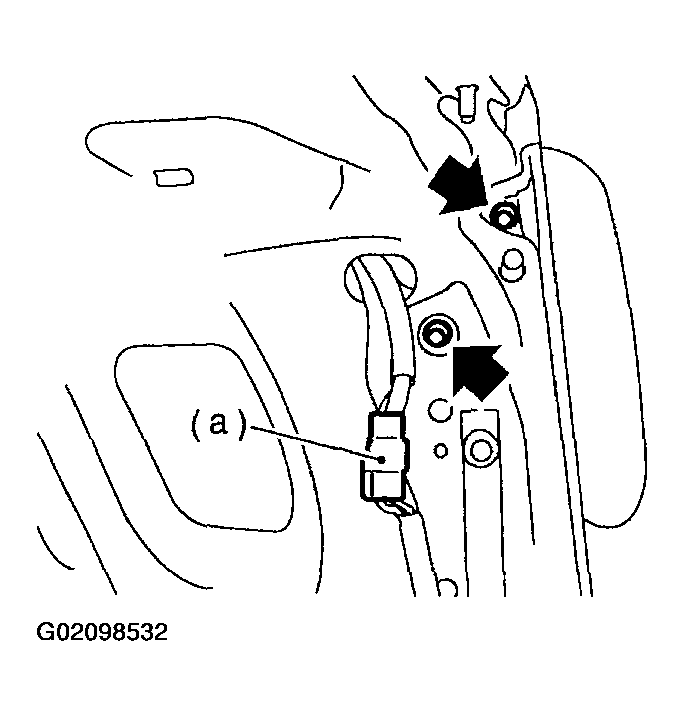

Fig 1: Removing Rear Spoiler
