Disassembly And Assembly

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove thermistor (A) from intake unit case.
  2. Remove some screws then separate intake unit case.
  3. Remove thermistor from clip with the evaporator.

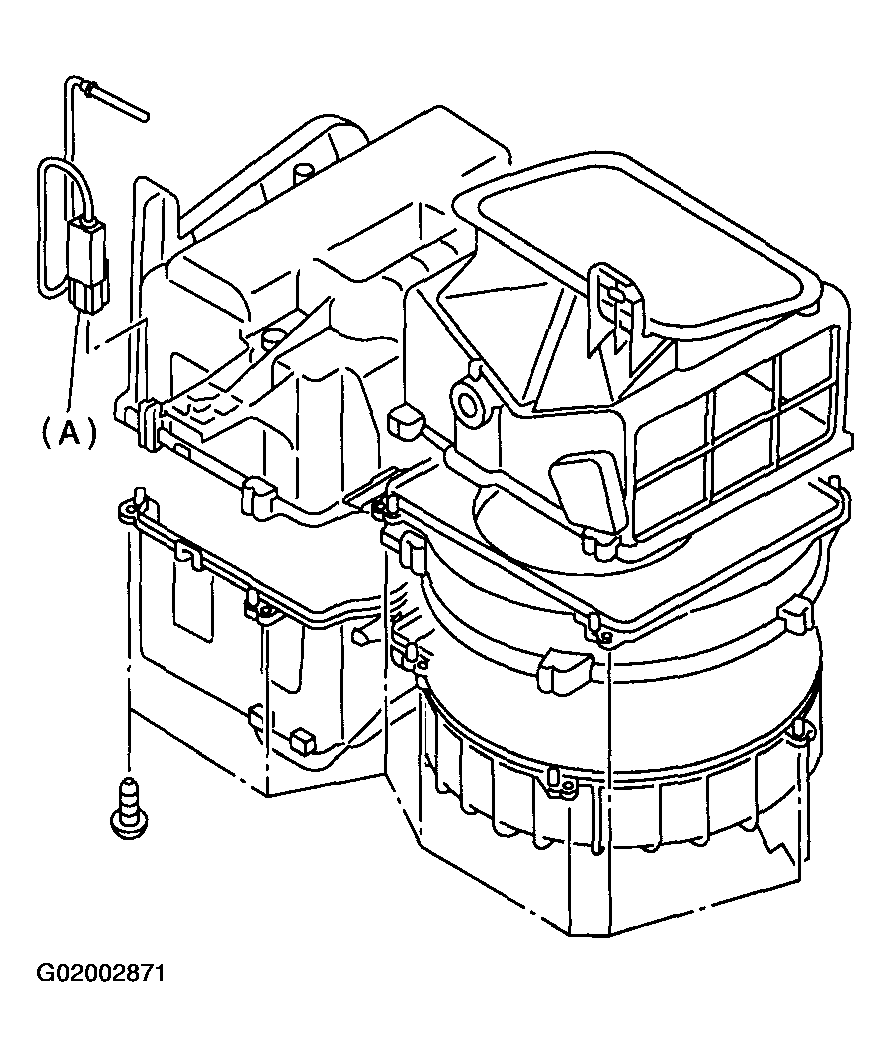

    Fig 1: Removing Evaporator From Intake Unit Case (1 Of 2)
    G02002871
  4. Remove the block expansion valve (A) from pipes.

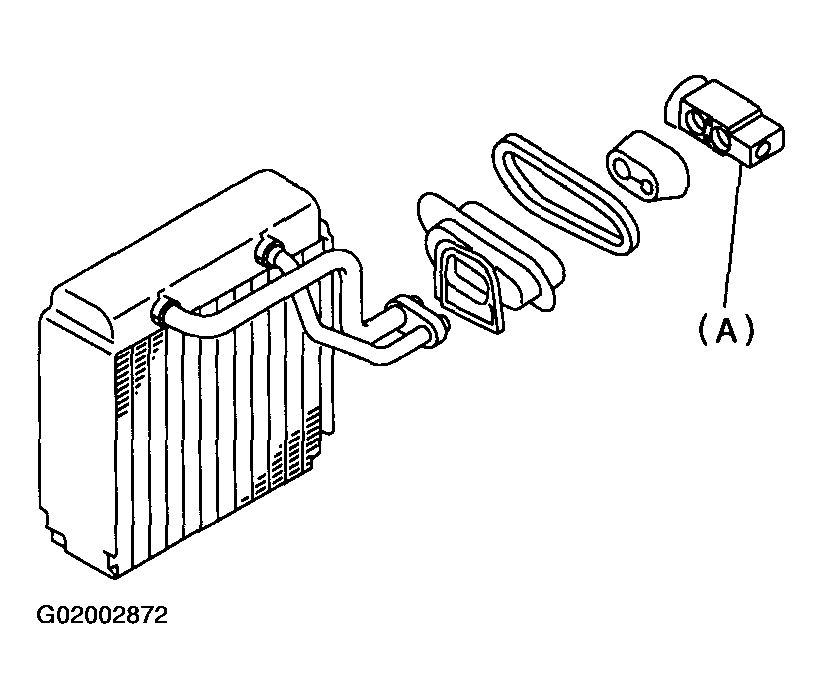

    Fig 2: Removing Evaporator From Intake Unit Case (2 Of 2)
    G02002872
  5. Check to see if the evaporator fins are clogged. If they are, clean them with compressed air.
    CAUTION: Water must never be used to clean the evaporator.
  6. Check parts that have been removed for cracks or scratches, and repair or replace them with new ones, if necessary.
  7. Reassemble the intake unit in the reverse order of disassembly.
    NOTE: Confirm that the O-ring is inserted in the specified position.
