Removal And Installation

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative terminal.
Discharge refrigerant using refrigerant recovery system, see DISCHARGE THE SYSTEM .
Disconnect pressure switch harness (A).
Disconnect pipes (B).
Remove mounting bolt (C) and remove receiver drier.
CAUTION: The receiver drier contains a desiccant. Be sure to put a blind plug in the detached receiver drier to protect it from moisture.

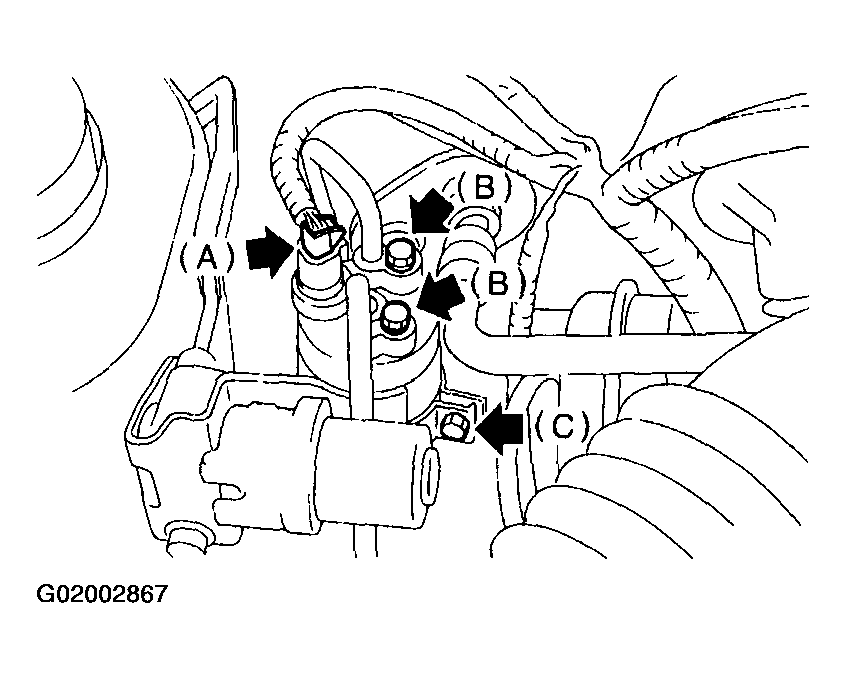

Fig 1: Removing Receiver Drier
Install the receiver drier in the reverse order of removal.
Charge refrigerant. See EVACUATING AND CHARGING .
