Work Flow

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

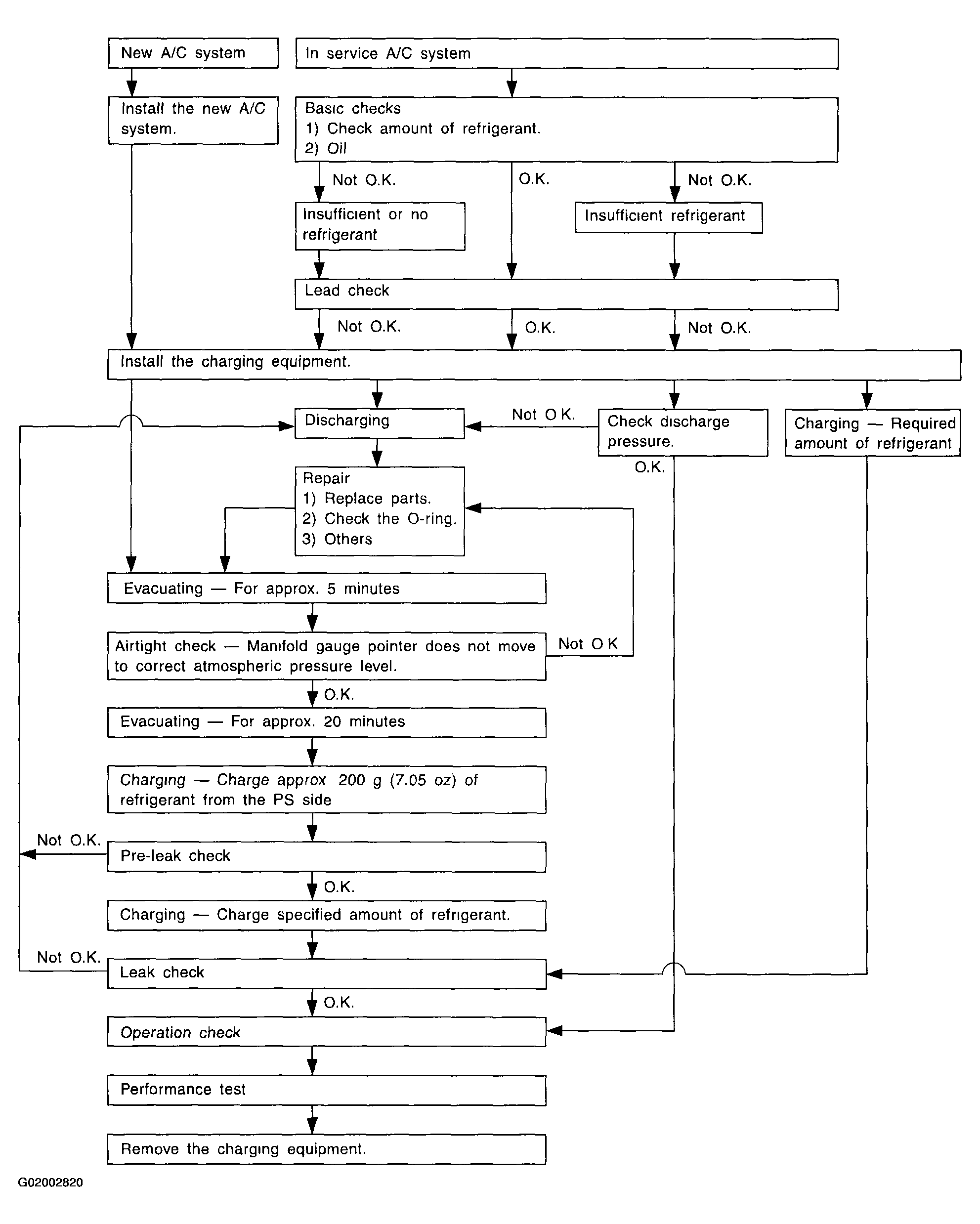

Fig 1: Refrigerant Service Procedure
G02002820
