Tools And Equipment
WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

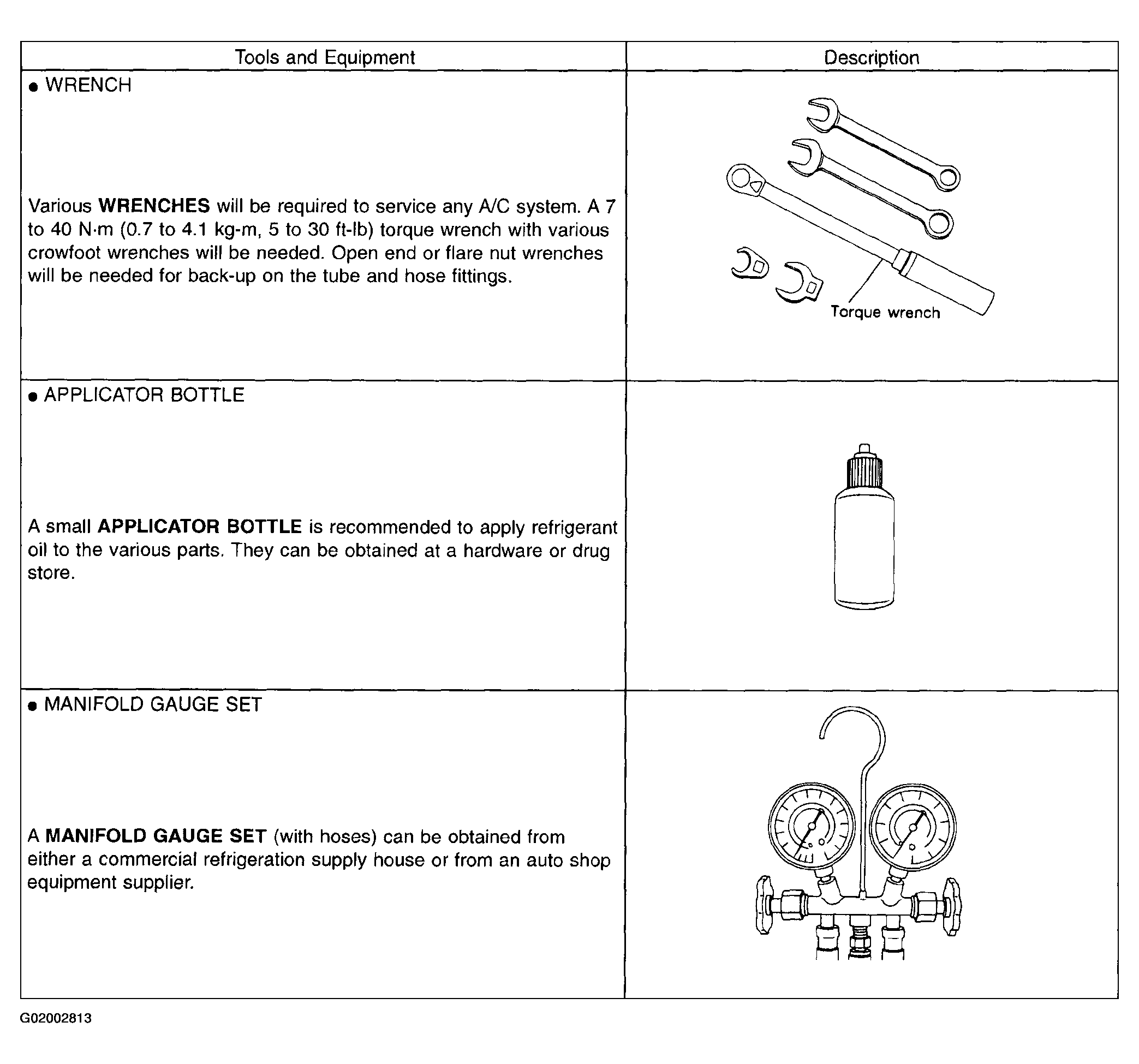

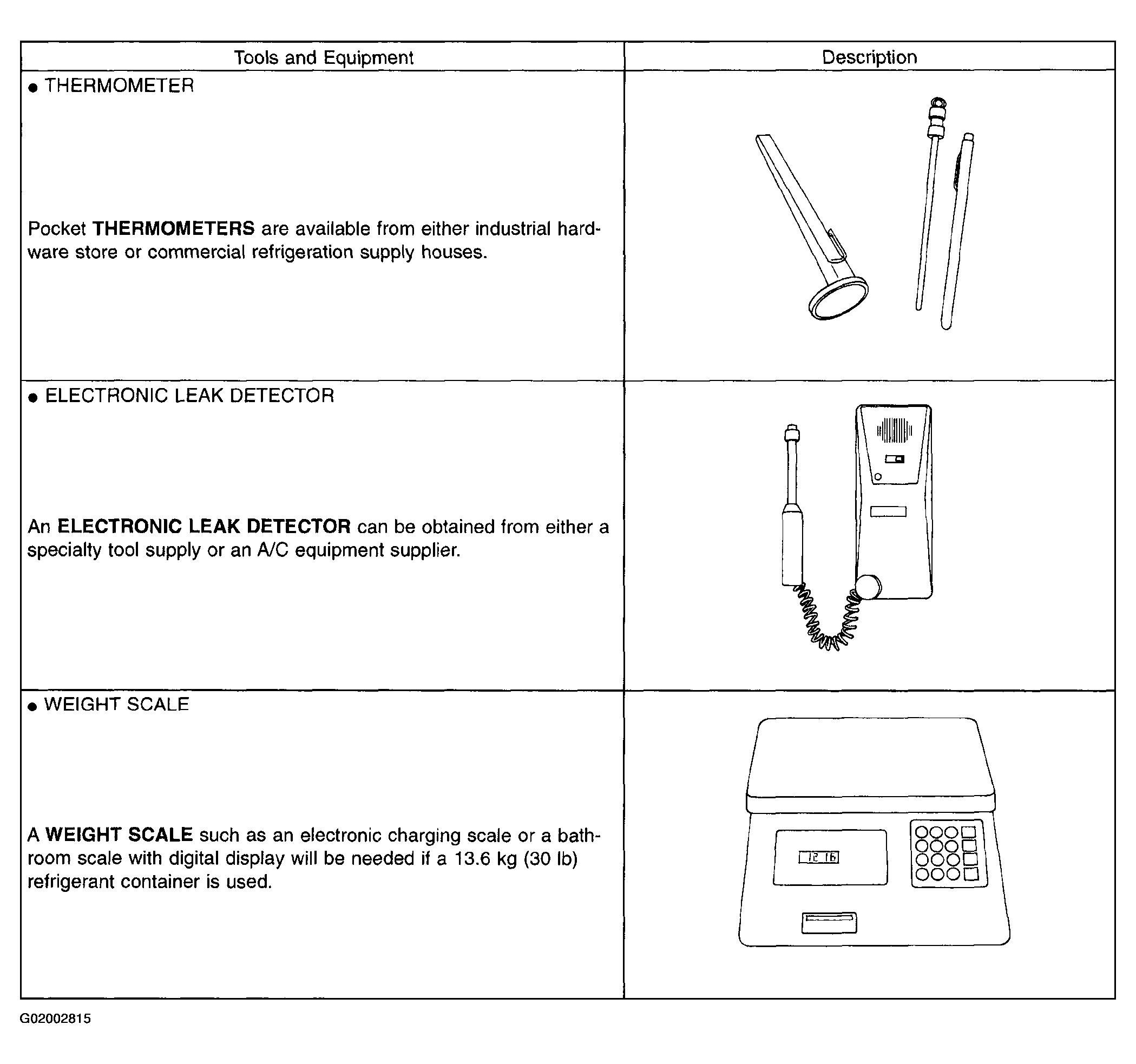

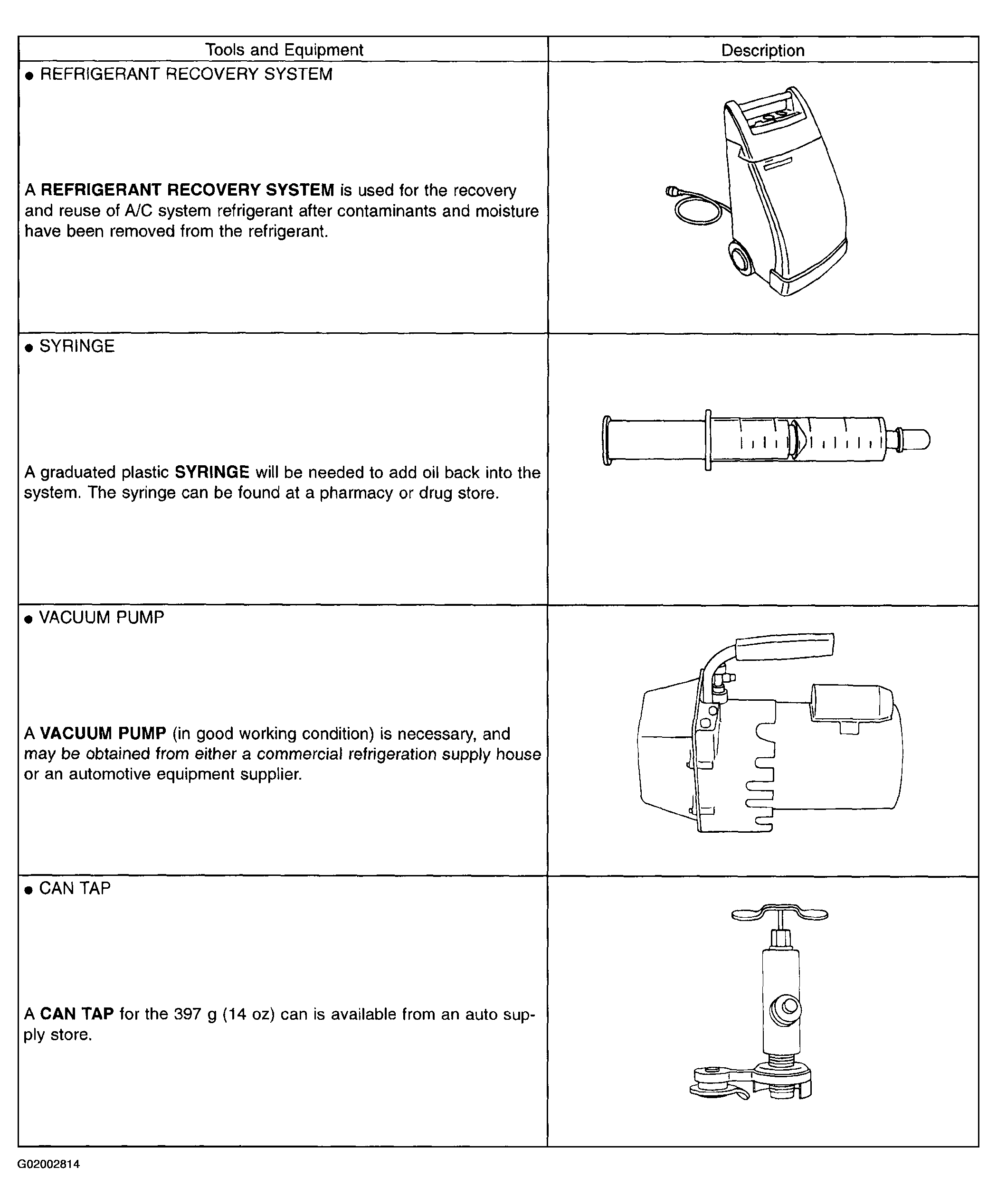

The following section provides information about the tools and equipment that will be necessary to properly service the A/C system.
Since equipment may vary slightly depending on the manufacturer, it is important to always read and follow the manufacturer's instructions.
CAUTION:
When working on vehicles with the HFC-134a system, only use HFC-134a specified tools and parts. Do not mix with CFC-12 tools and parts. If HFC-134a and CFC-12 refrigerant or compressor oil is mixed, poor lubrication will result and the compressor itself may be destroyed.
In order to help prevent mixing HFC-134a and CFC-12 parts and liquid, the tool and screw type and the type of service valves used are different. The gas leak detectors for the HFC-134a and CFC-12 systems must also not be interchanged.
In order to help prevent mixing HFC-134a and CFC-12 parts and liquid, the tool and screw type and the type of service valves used are different. The gas leak detectors for the HFC-134a and CFC-12 systems must also not be interchanged.
