Door Switch

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

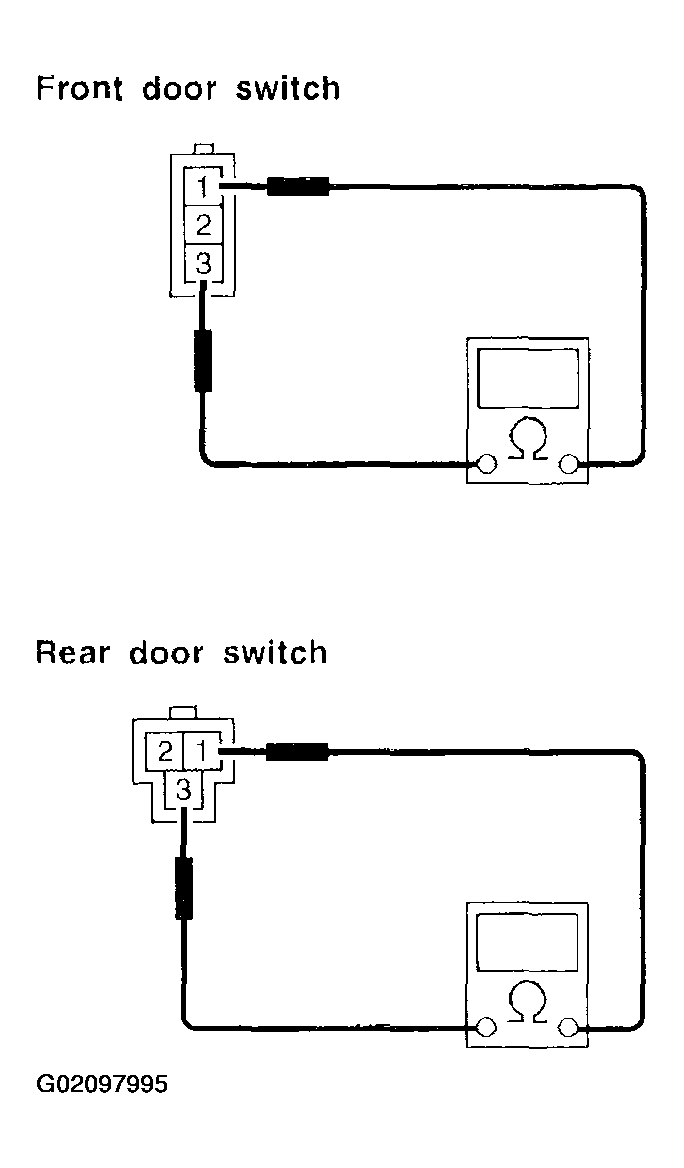

Fig 1: Checking Continuity Between Door Switch Terminals
G02097995

Check Continuity Between Terminals.

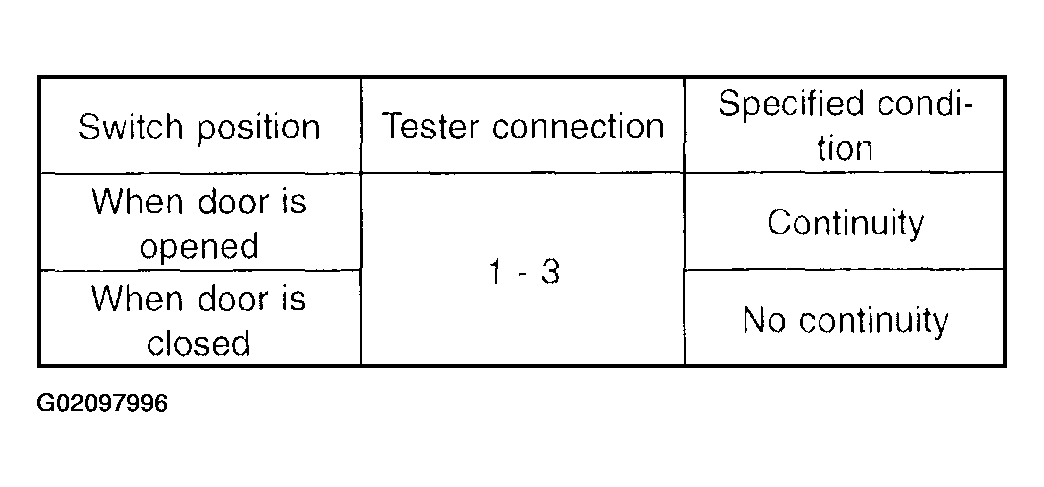

Fig 2: Door Switch Continuity Chart
G02097996
