Component Locations

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for restraint system component locations. See Fig 1.

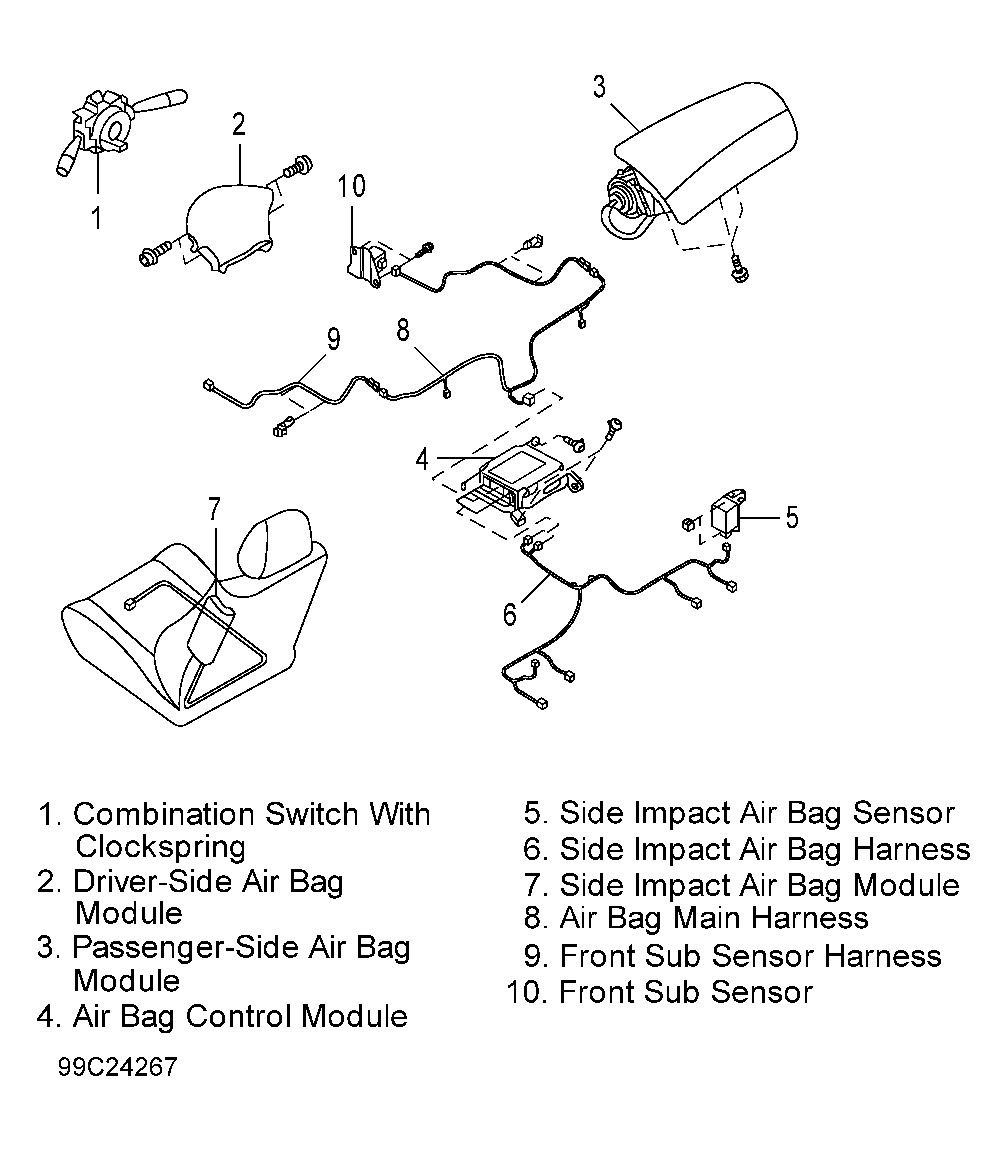

Fig 1: Identifying Restraint System Components

Courtesy of SUBARU OF AMERICA, INC.
