Code 16

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before proceeding, see AIR BAG SAFETY PRECAUTIONS . After repairs are complete, check AIR BAG warning light to verify system is functioning correctly. See SYSTEM OPERATION CHECK .
  1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove instrument panel lower cover and glove box. Disconnect passenger-side air bag module connectors AB9 and AB10. See Figure. Disconnect air bag control module connector AB6. Connect connector 1K in test harness "K" (part number not available) to connector AB9. See Figure. Connect two air bag resistors (98299PA040) to connectors 3K and 4K in test harness "K". Connect negative battery cable and turn ignition on. If AIR BAG warning light works properly, replace passenger-side air bag module and go to step  3. See PASSENGER-SIDE AIR BAG MODULE  under REMOVAL & INSTALLATION. If AIR BAG warning light does not operate properly, go to next step.

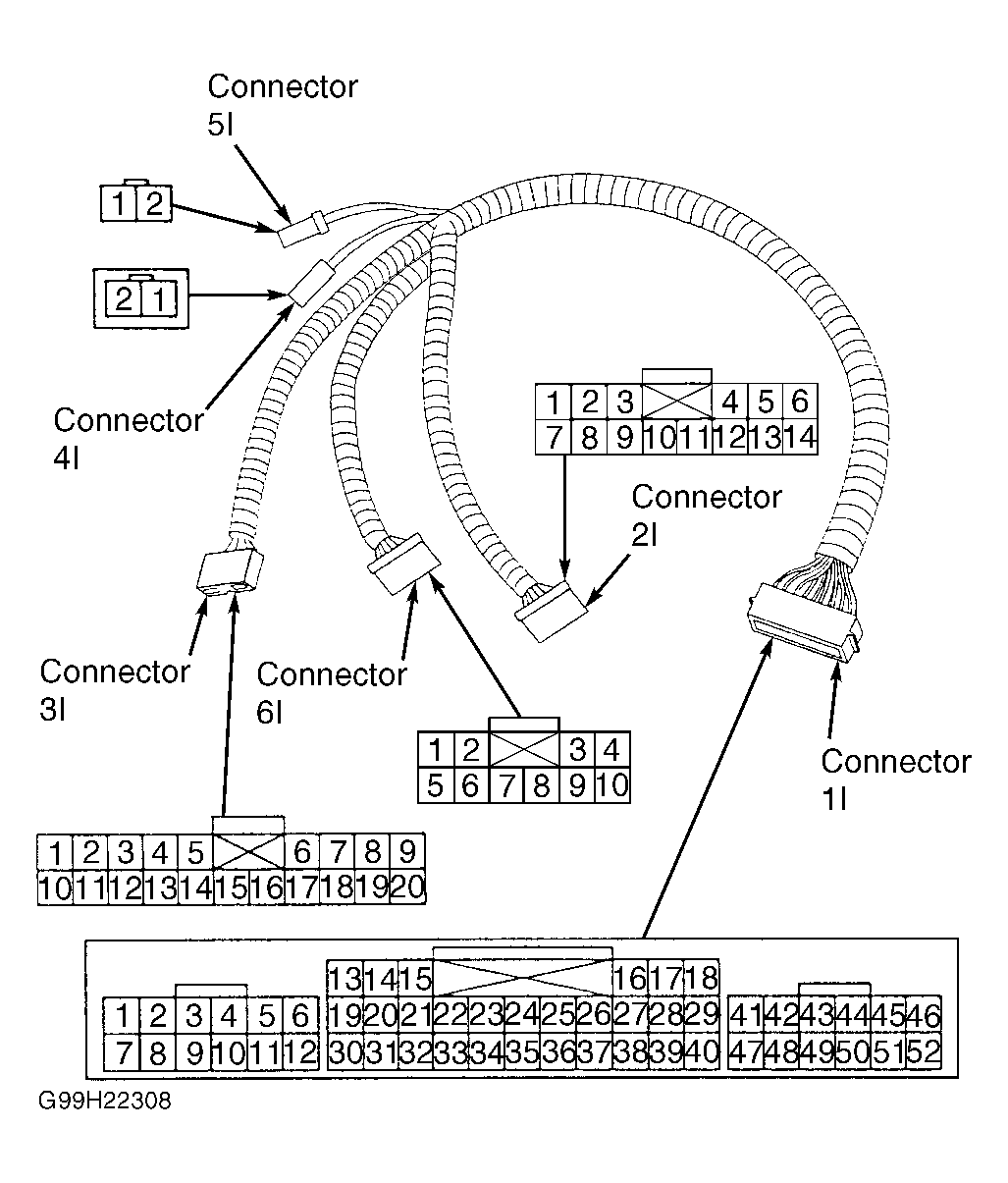

  2. Turn ignition off. Disconnect negative battery cable and wait 20 seconds. Remove two air bag resistors from connectors 3K and 4K in test harness "K". Remove driver-side instrument panel and disconnect driver-side air bag module connectors AB3 from AB8. Disconnect air bag control module connector AB6 from control module and connect to test harness "I2" (98299FC041), connector 1I. See Figure. Measure voltage between test harness "I2" connector 2I terminal No. 2 and ground. Measure voltage between connector 2I terminal No. 5 and ground. If voltage is less than one volt at both terminals, replace air bag control module and go to next step. See CONTROL MODULE  under REMOVAL & INSTALLATION. If voltage is one volt or more, replace air bag system wiring harness and go to next step.
  3. Turn ignition off and disconnect negative battery cable. Wait at least 20 seconds. Reconnect system components and activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Clear air bag system codes. See CLEARING CODES  under DIAGNOSTICS. Check for normal air bag system operation. See SYSTEM OPERATION CHECK .
