Front Fog Light Assembly: Removal: Outback

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn stone guard counterclockwise, and then remove it.

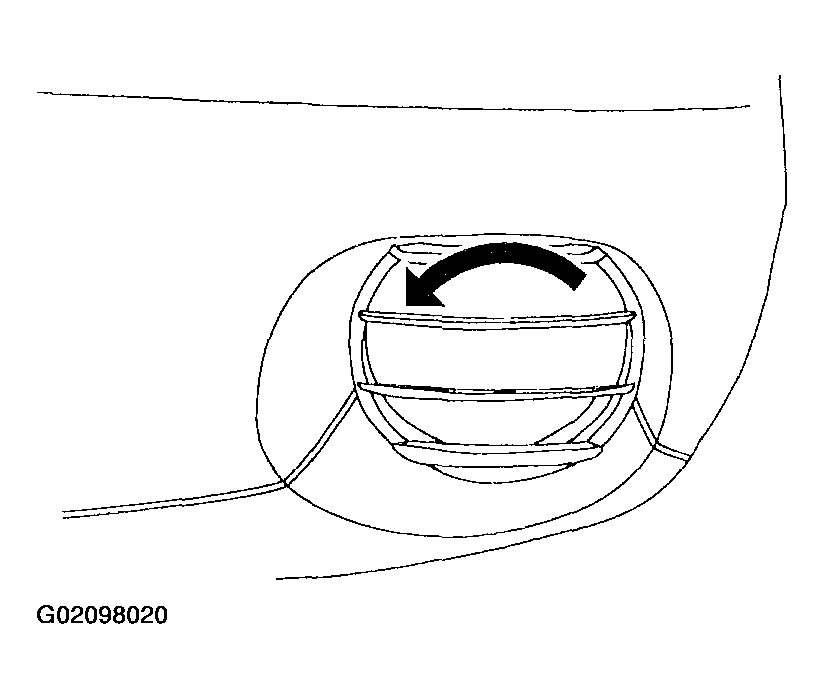

    Fig 1: Removing Front Fog Light Assembly Stone Guard (Outback)
    G02098020
  2. Remove mounting bolts.

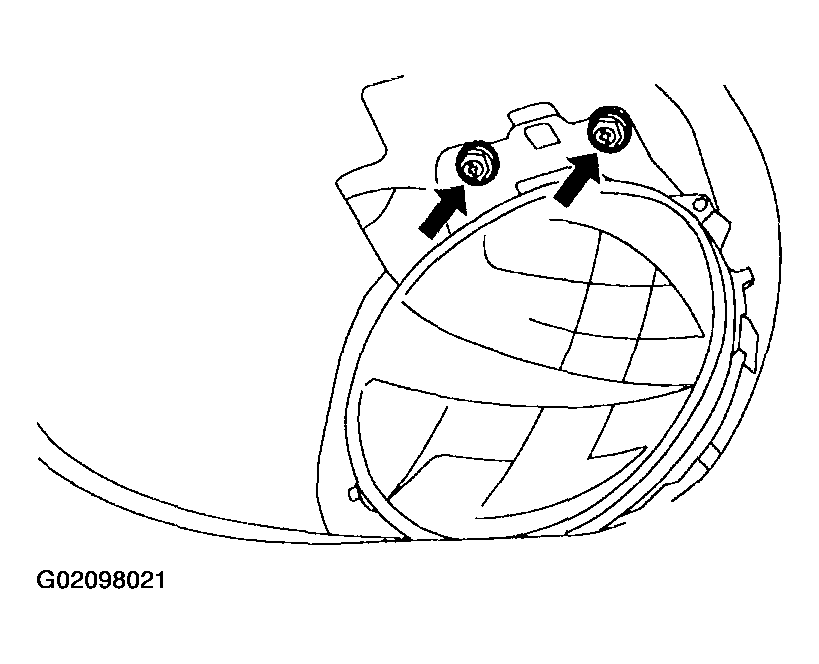

    Fig 2: Removing Front Fog Light Assembly Bolts (Outback)
    G02098021
  3. Remove two clips and lower the mudguard.

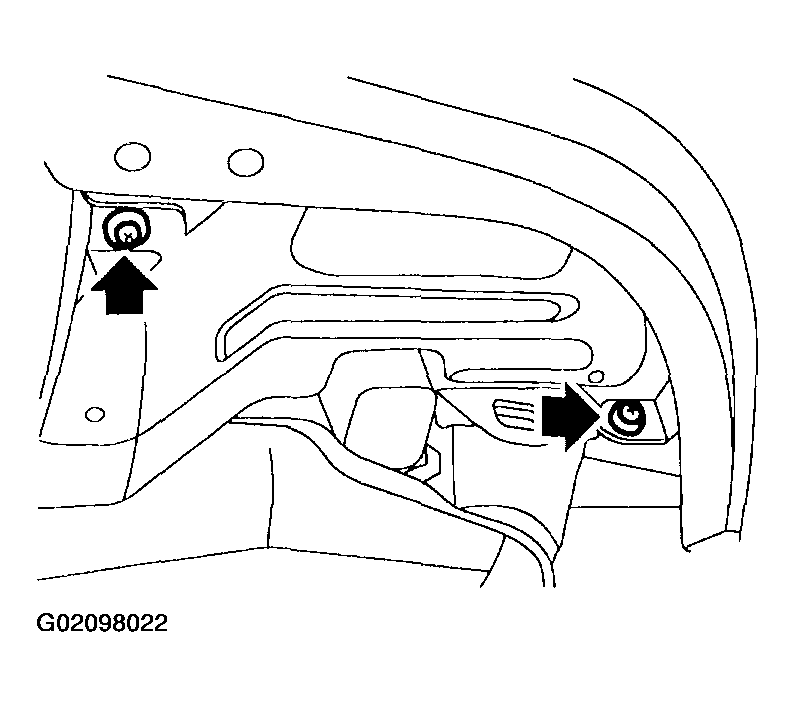

    Fig 3: Removing Front Fog Light Assembly Clips (Outback)
    G02098022
  4. Disconnect harness connector (a).
  5. Remove nut (b) then detach fog light assembly.

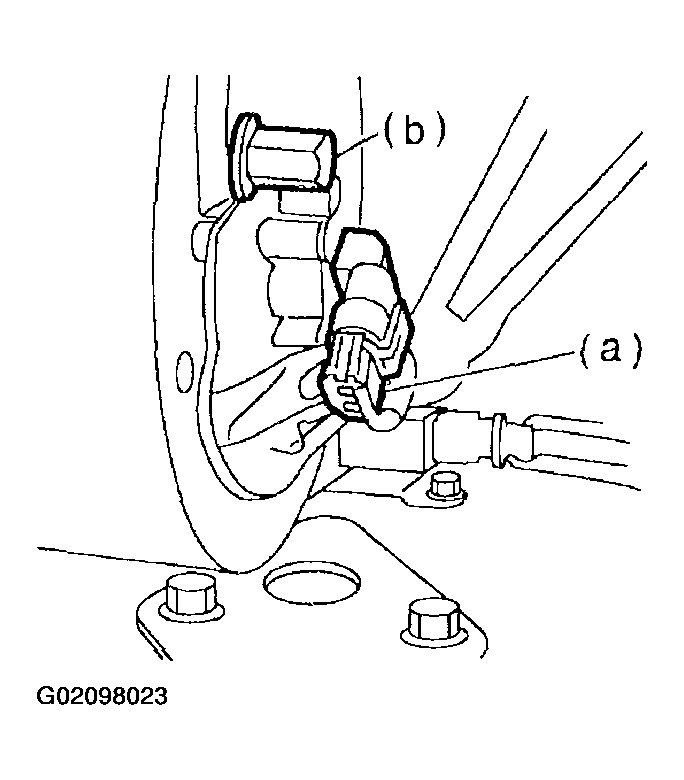

    Fig 4: Detaching Fog Light Assembly (Outback)
    G02098023
