Headlight Assembly: Removal

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

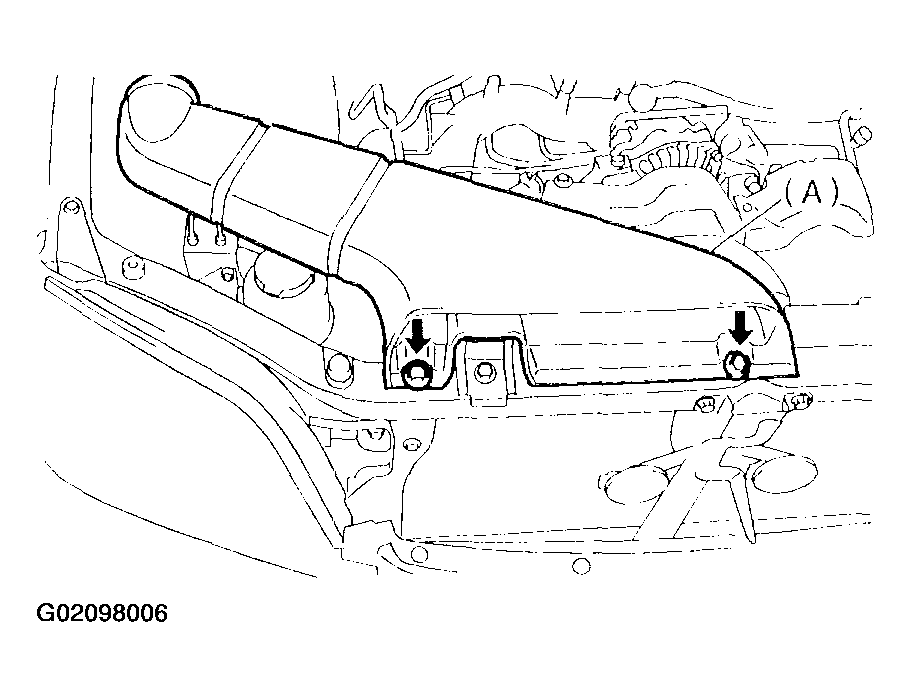

Remove duct (A) (when right side headlight is removed).

Fig 1: Removing Duct (When Right Side Headlight Is Removed)

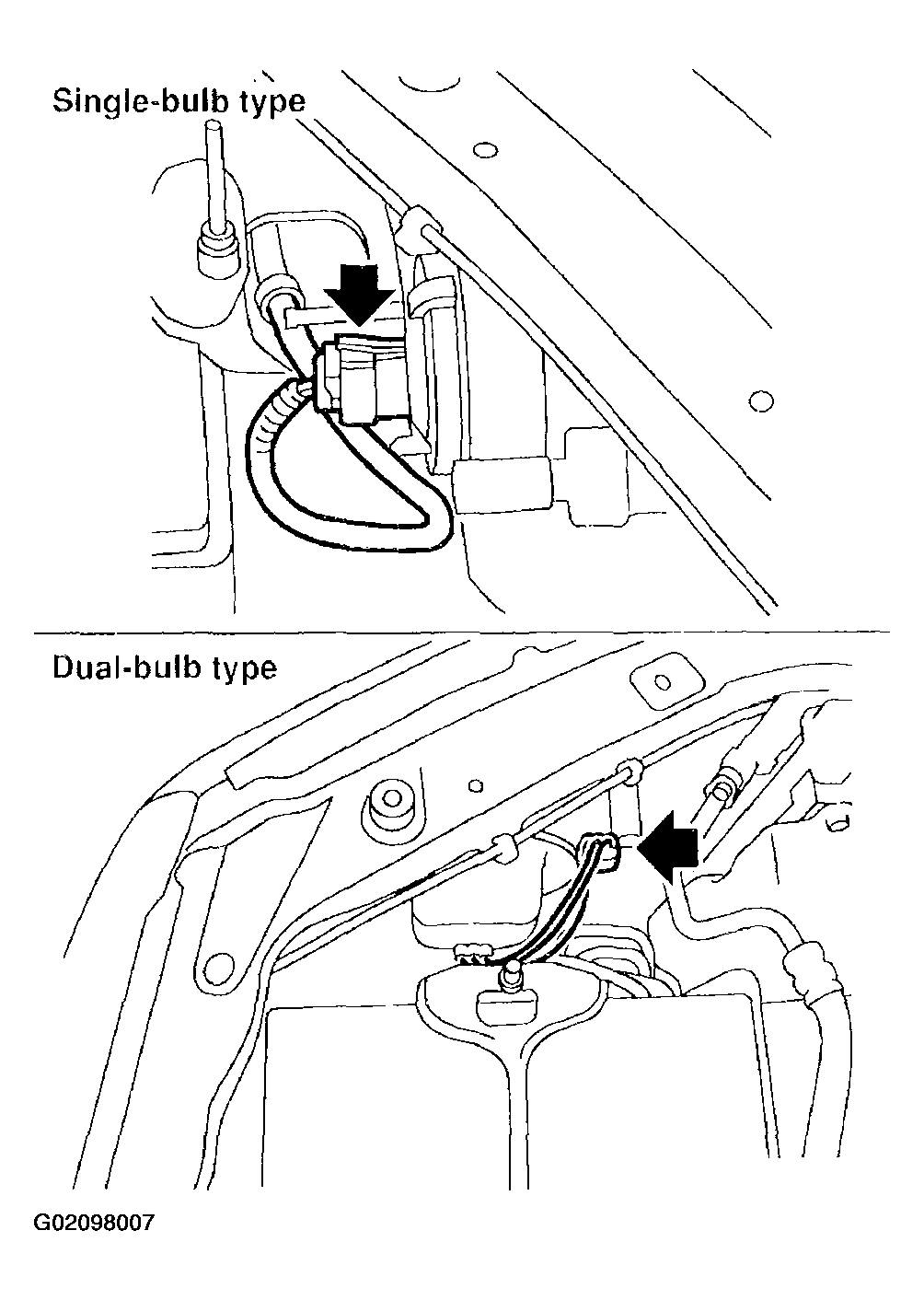

Disconnect headlight bulb connector.

Fig 2: Disconnecting Headlight Bulb Connector

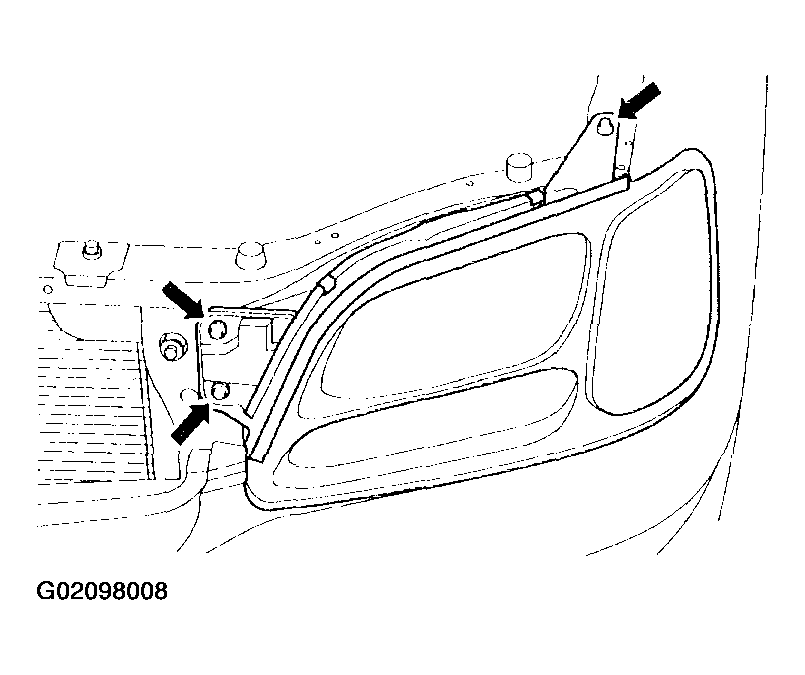

Remove three bolts and disconnect connectors, and then detach headlight assembly.

Fig 3: Removing Bolts & Disconnecting Connectors
