Spot Light: Removal

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lens (A) and spot light mounting screw (B).

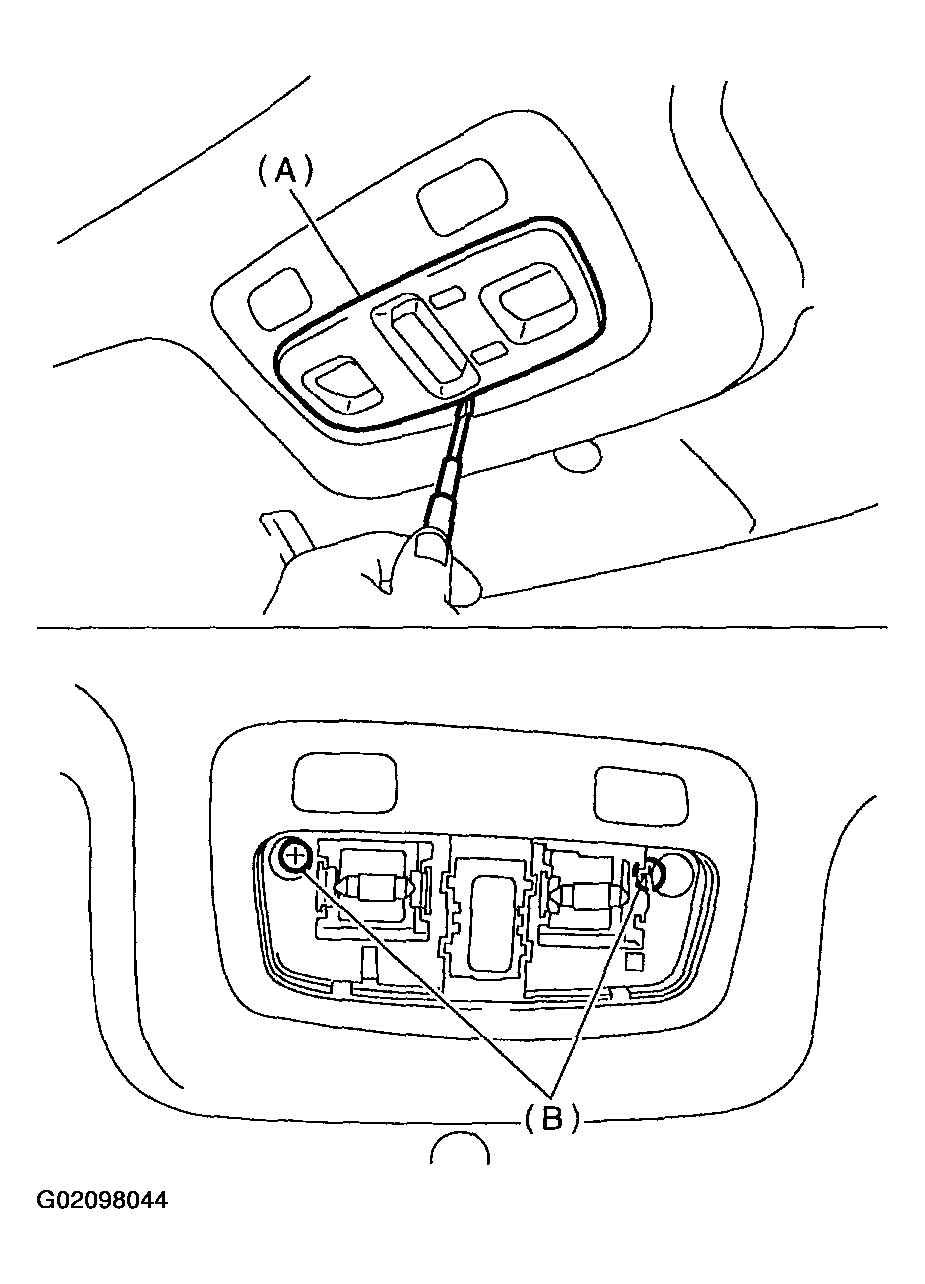

    Fig 1: Removing Lens & Spot Light Mounting Screw
    G02098044
  2. Disconnect harness connectors and remove spot light.
