2200cc MODEL

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect engine ground terminal from intake manifold.
    Fig 1: Disconnecting Engine Ground Terminal From Intake Manifold
    G02061369
  2. Disconnect connector from ignition coil and ignitor assembly.
  3. Remove ignition coil and ignitor assembly.

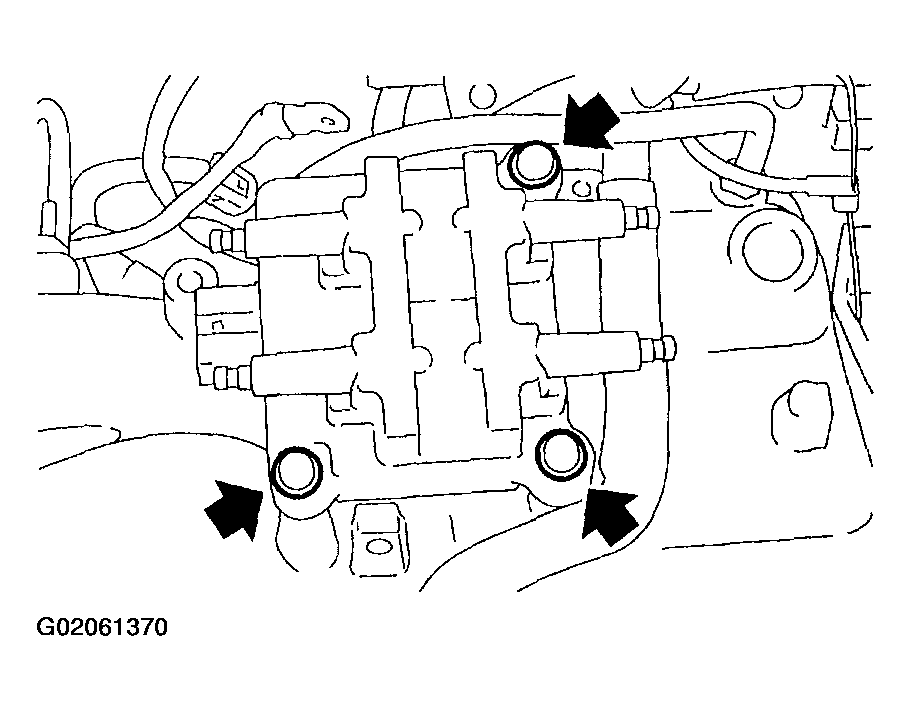

    Fig 2: Removing Ignition Coil & Ignitor Assembly
    G02061370

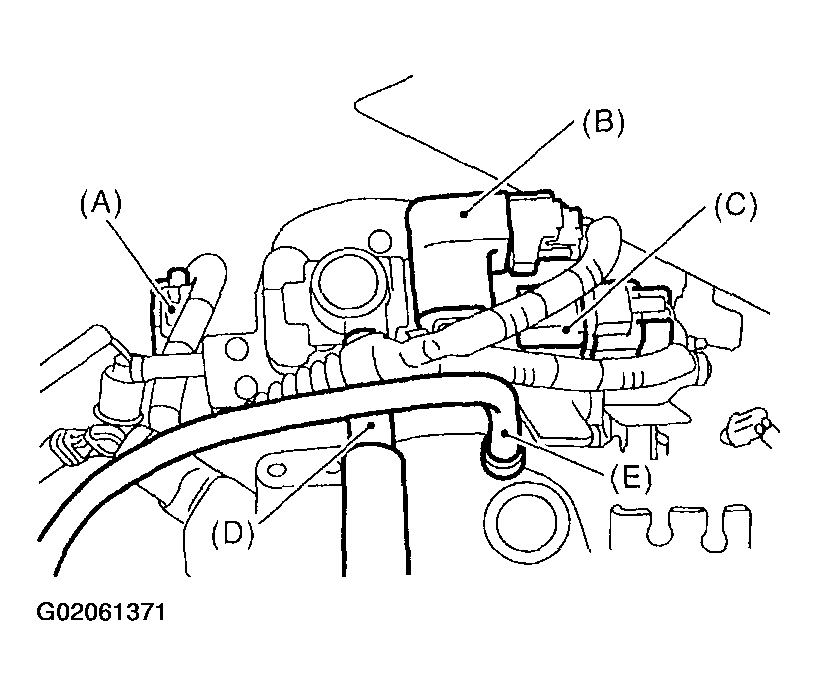

  4. Disconnect connectors from throttle position sensor (A), idle air control solenoid valve (B) and intake manifold pressure sensor (C).
  5. Disconnect air by-pass hose (D) from idle air control solenoid valve.
  6. Disconnect air by-pass hose (E) from intake manifold.
    Fig 3: Disconnecting Connectors From Throttle Position Sensor
    G02061371

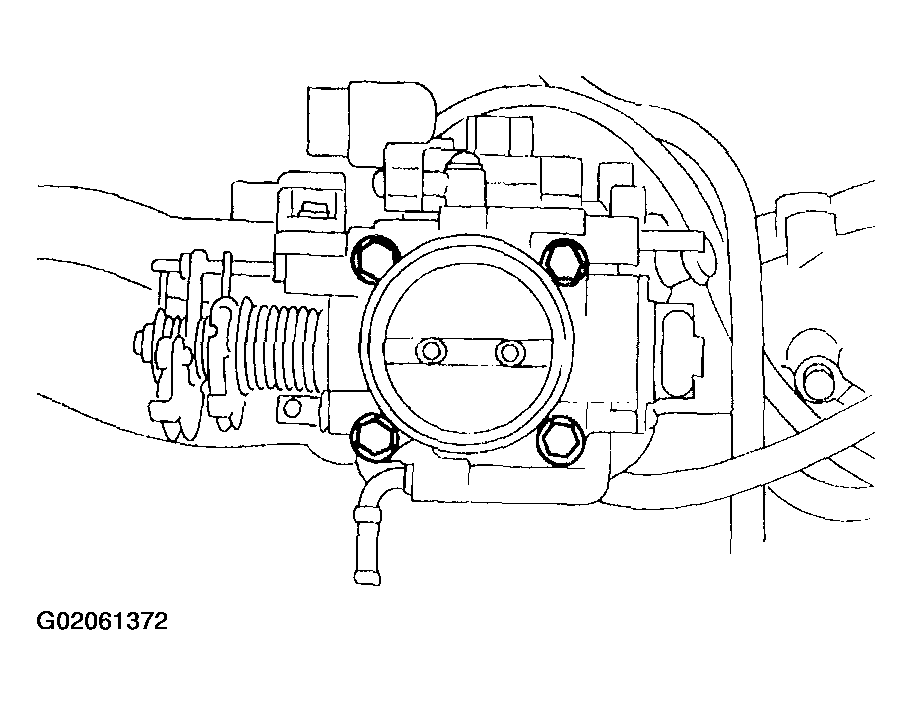

  7. Remove throttle body.
    Fig 4: Removing Throttle Body
    G02061372
  8. Disconnect pressure regulator vacuum hose from intake manifold.

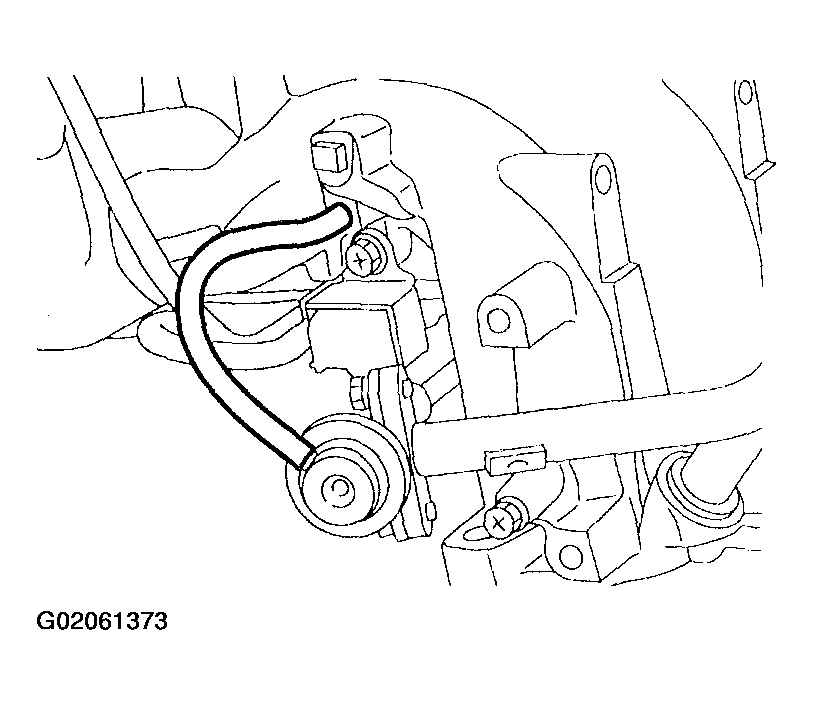

    Fig 5: Disconnecting Pressure Regulator Vacuum Hose From Intake Manifold
    G02061373

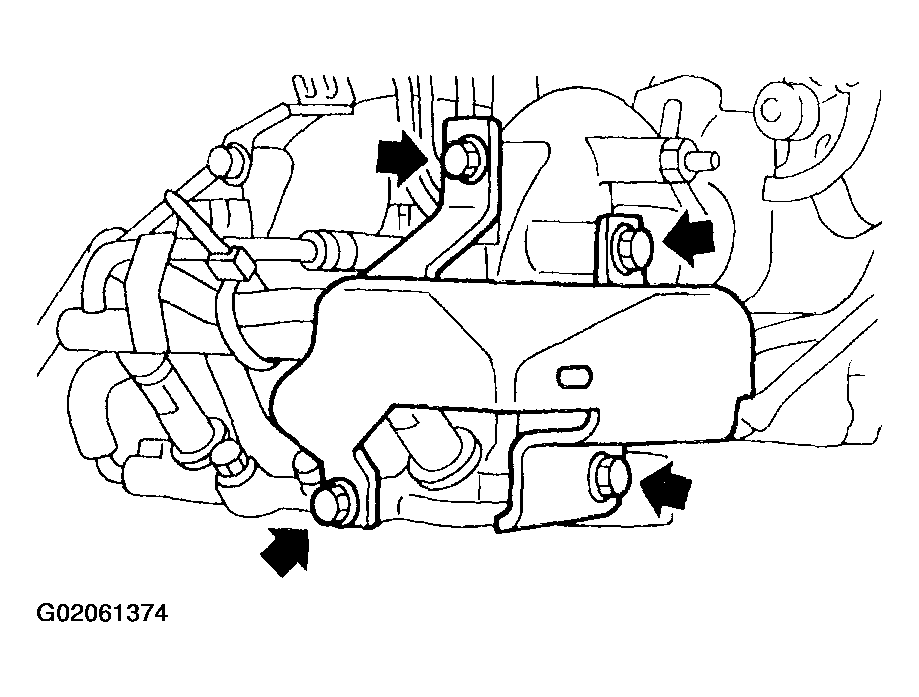

  9. Remove fuel pipe protector LH.
    Fig 6: Removing Fuel Pipe Protector LH
    G02061374

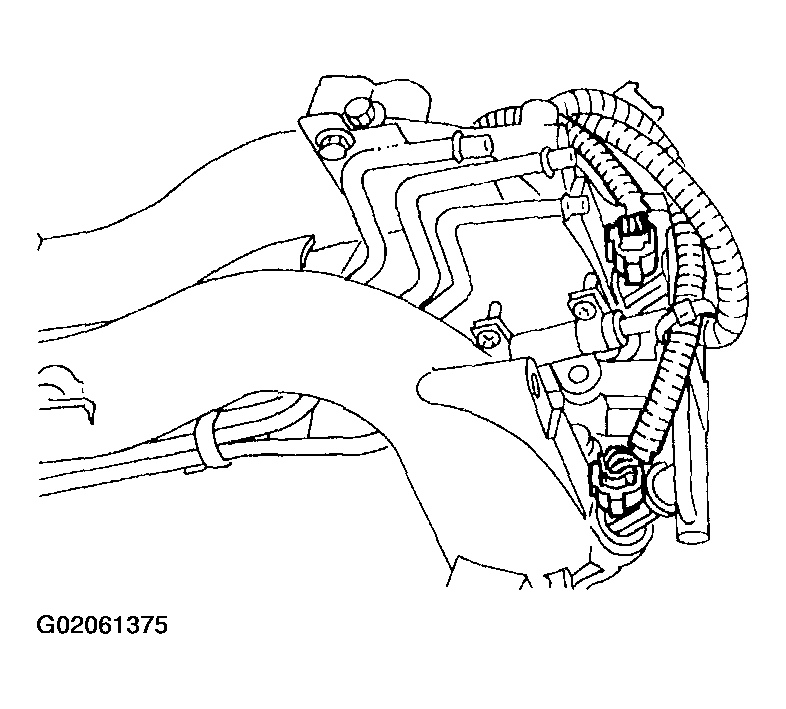

  10. Disconnect connectors from fuel injectors.
    Fig 7: Disconnecting Connectors From Fuel Injectors
    G02061375
  11. Disconnect connector from purge control solenoid valve.

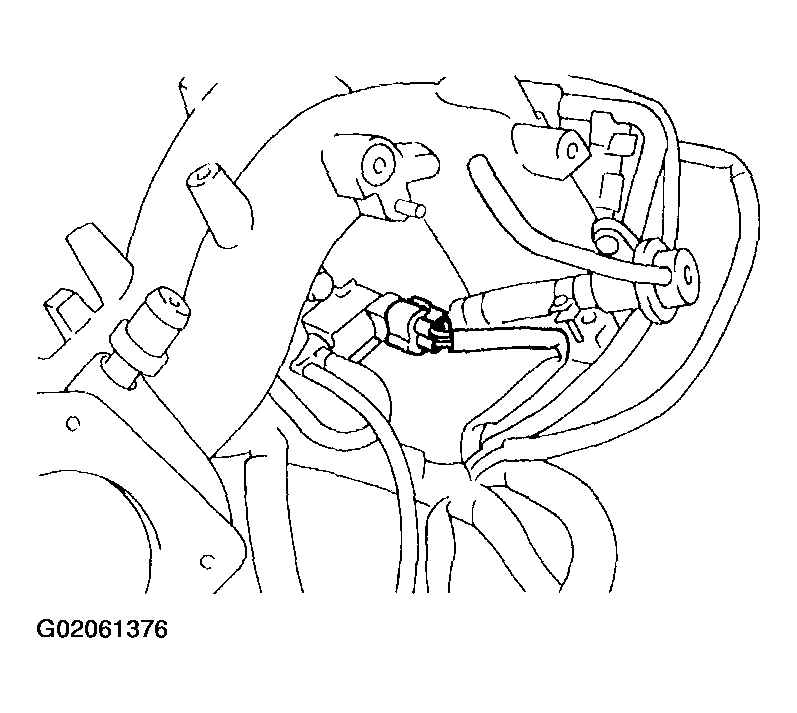

    Fig 8: Disconnecting Connector From Purge Control Solenoid Valve
    G02061376

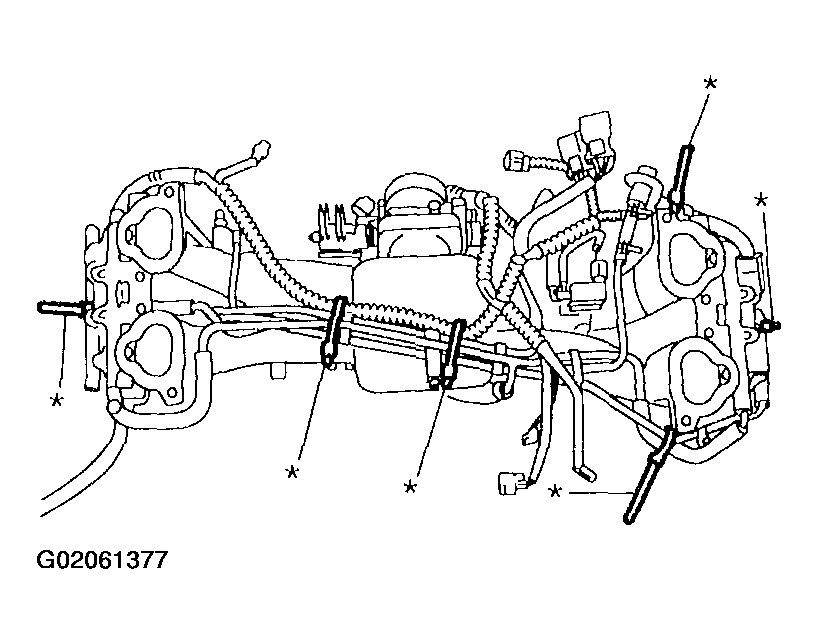

  12. Remove harness bands (*) which hold engine harness onto intake manifold.
    Fig 9: Removing Harness Bands Securing Engine Harness Onto Intake Manifold
    G02061377
  13. Remove engine harness from intake manifold.

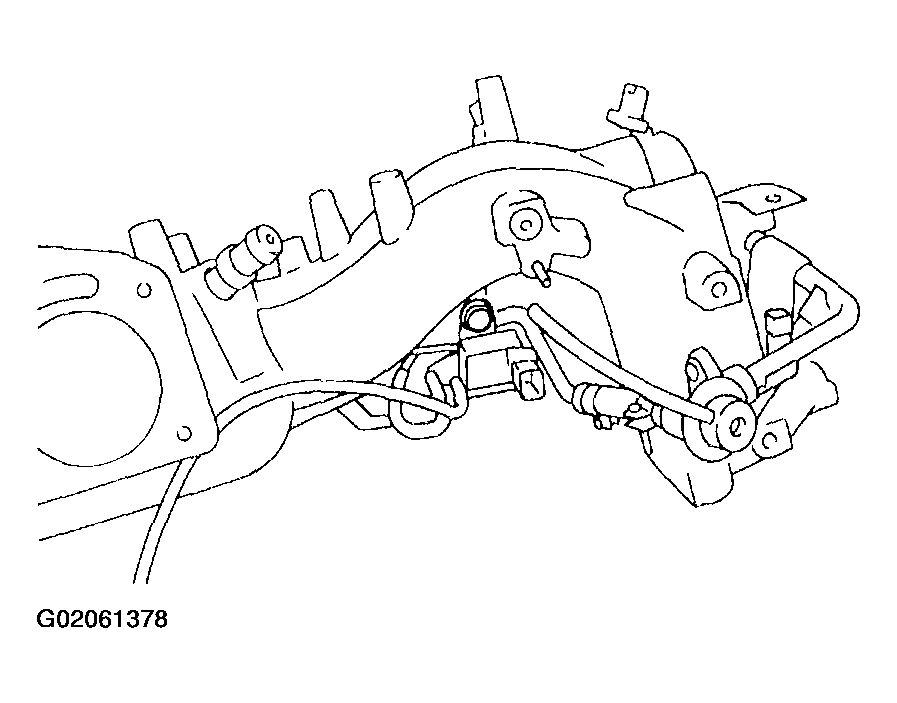

  14. Remove purge control solenoid valve.
    Fig 10: Removing Purge Control Solenoid Valve
    G02061378
  15. Remove bolt which installs injector pipe on intake manifold as shown in figure.
    Fig 11: Removing Bolt From Injector Pipe On Intake Manifold
    G02061379

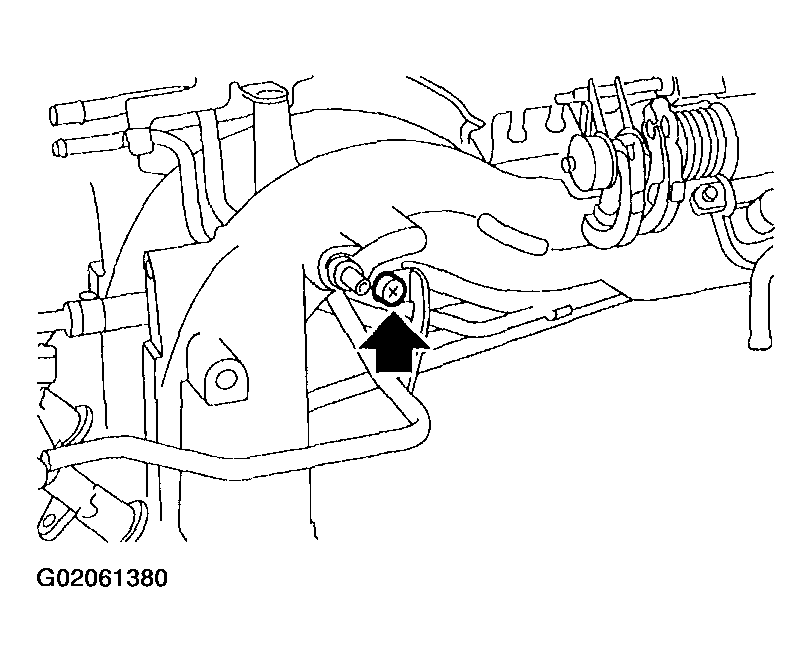

  16. Remove bolt which installs injector pipe on intake manifold.
    Fig 12: Removing Bolt Holding Injector Pipe On Intake Manifold
    G02061380
  17. Remove two bolts which hold fuel pipes on the left side of intake manifold.
    Fig 13: Removing Bolts Holding Fuel Pipes On Left Side Of Intake Manifold
    G02061381
  18. Remove bolt which installs injector pipe on intake manifold.

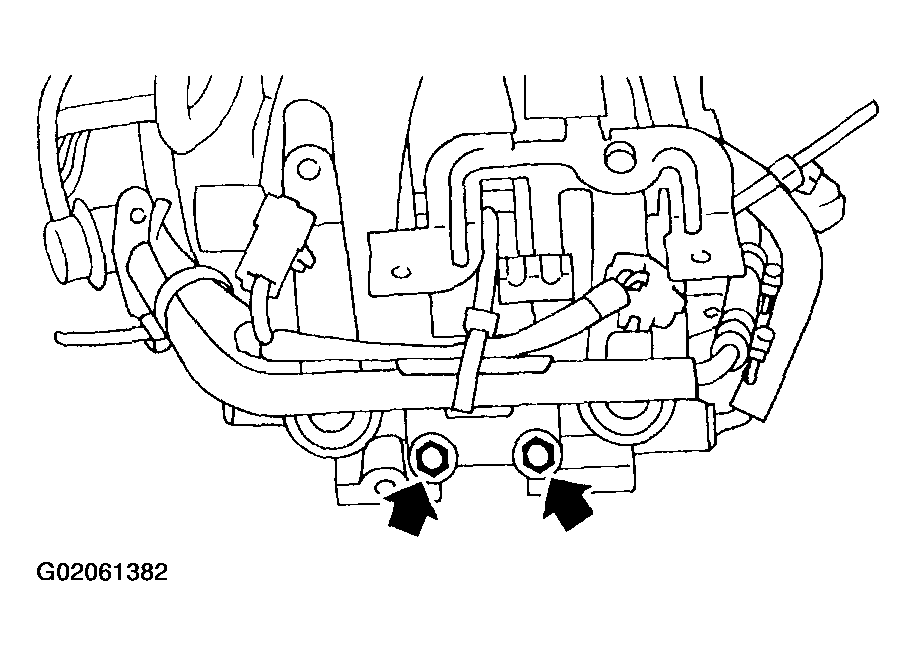

    Fig 14: Removing Bolt Holding Injector Pipe On Intake Manifold
    G02061382
  19. Remove fuel injector while lifting up fuel injector pipe.
    Fig 15: Removing Fuel Injector While Lifting Up Fuel Injector Pipe
    G02061383

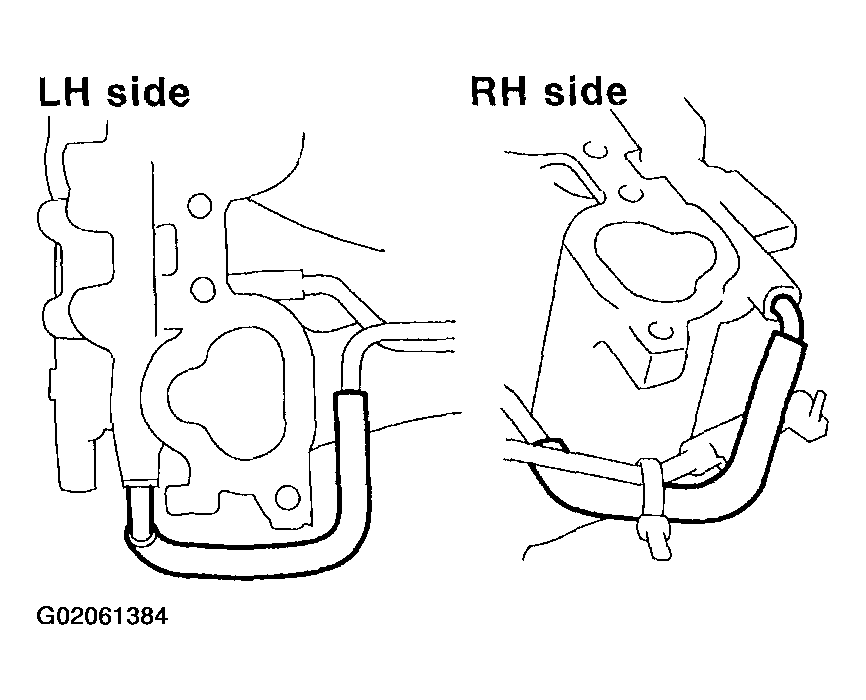

  20. Disconnect air by-pass hoses from intake manifold.
    Fig 16: Disconnecting Air By-Pass Hoses From Intake Manifold
    G02061384
  21. Loosen clamp which holds front left side fuel hose to injector pipe and remove the pipe from clamp.
    Fig 17: Loosening Clamp Holding Front Left Side Fuel Hose To Injector Pipe
    G02061385
  22. Loosen clamp which holds front right side fuel hose to injector pipe and remove the pipe from clamp.
    Fig 18: Loosening Clamp Holding Front Right Side Fuel Hose To Injector Pipe
    G02061386
  23. Remove fuel injector pipe.

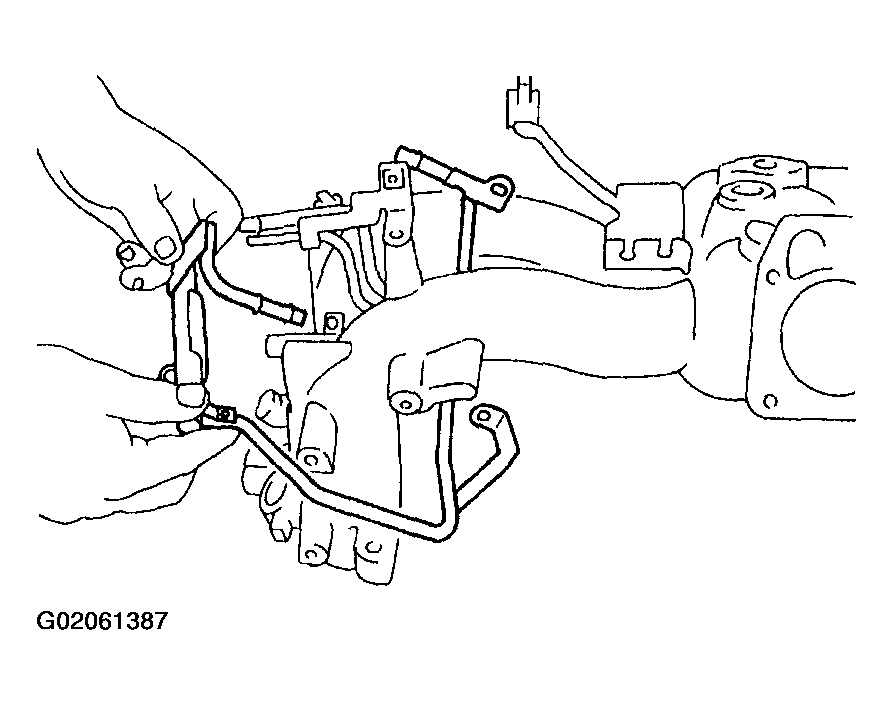

    Fig 19: Removing Fuel Injector Pipe
    G02061387
  24. Remove bolt which installs fuel pipes on intake manifold.
    Fig 20: Removing Bolt Holding Fuel Pipes On Intake Manifold
    G02061388
  25. Remove fuel pipe assembly and pressure regulator, from intake manifold.
