2200cc Models

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery ground cable.

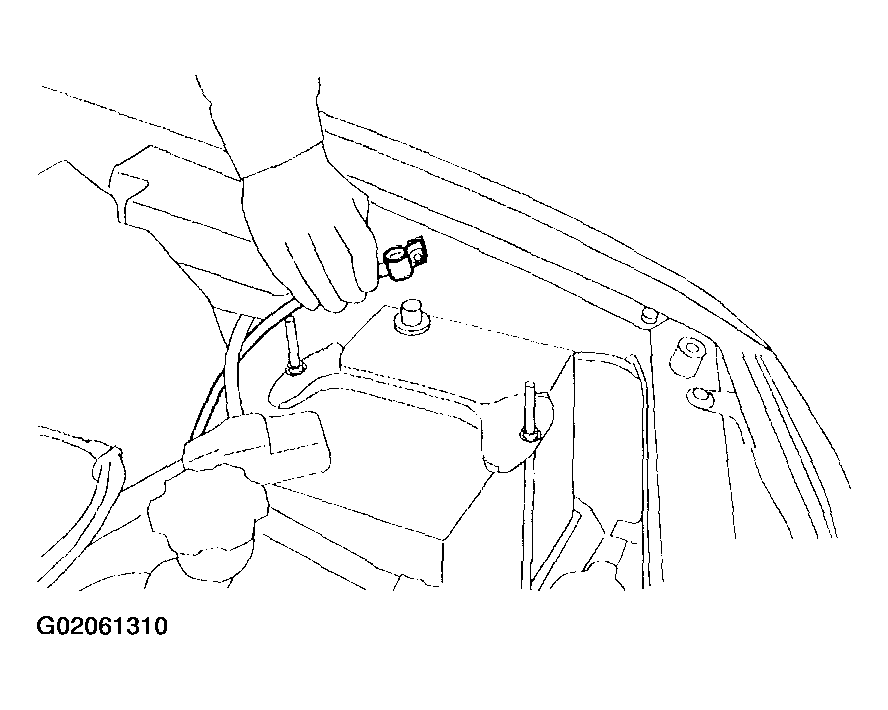

Fig 1: Disconnecting Battery Ground Cable
Remove air cleaner case. See REMOVAL , Air Cleaner Case.

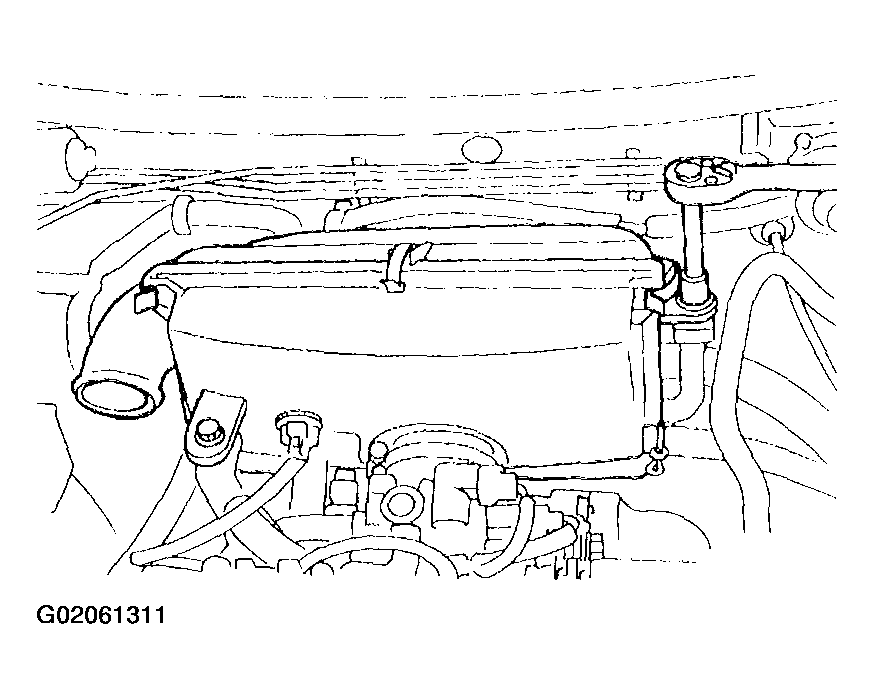

Fig 2: Removing Air Cleaner Case
Disconnect accelerator cable (A).
Disconnect cruise control cable (B) (if equipped).

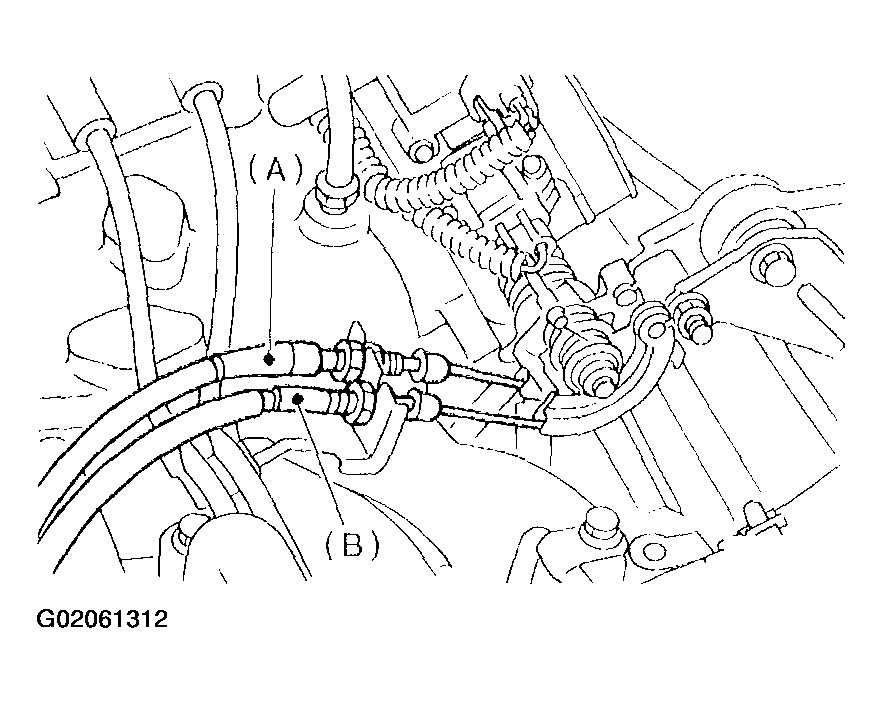

Fig 3: Identifying Accelerator Cable & Cruise Control Cable
Disconnect connectors from throttle position sensor (A), idle air control solenoid valve (B) and intake manifold pressure sensor (C).
Disconnect air by-pass hose (D) from idle air control solenoid valve.

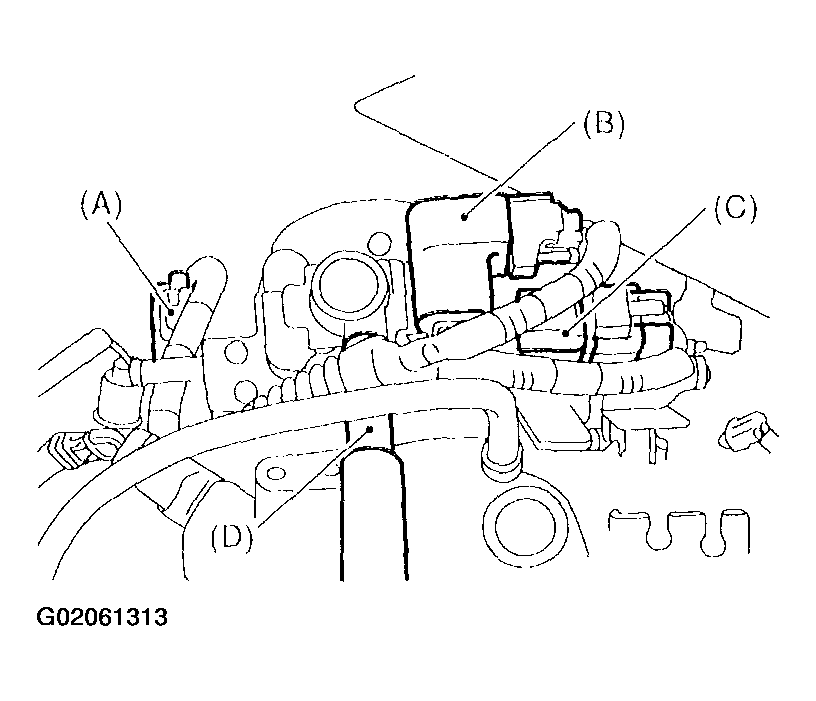

Fig 4: Disconnecting Connectors From Throttle Position Sensor
Disconnect engine coolant hoses from throttle body.

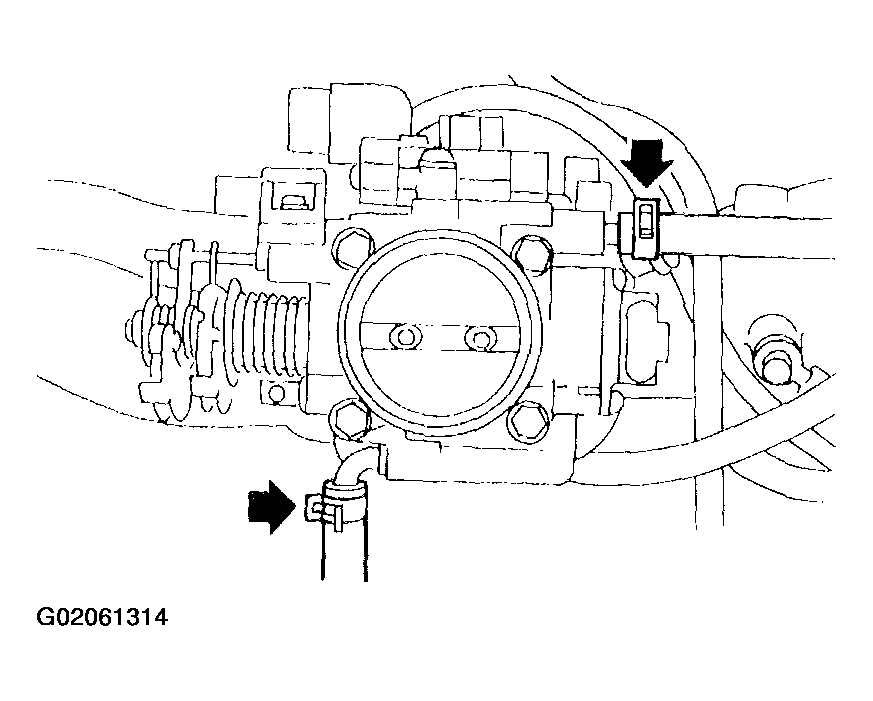

Fig 5: Disconnecting Engine Coolant Hoses From Throttle Body
Remove bolts which install throttle body to intake manifold.

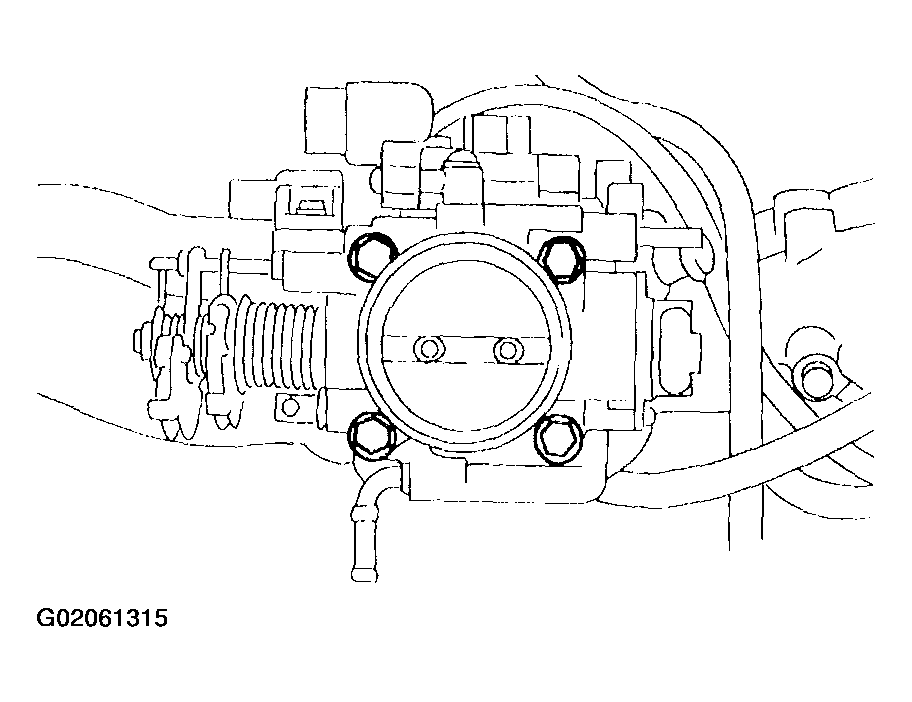

Fig 6: Removing Bolts From Throttle Body To Intake Manifold
