2500cc Models

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

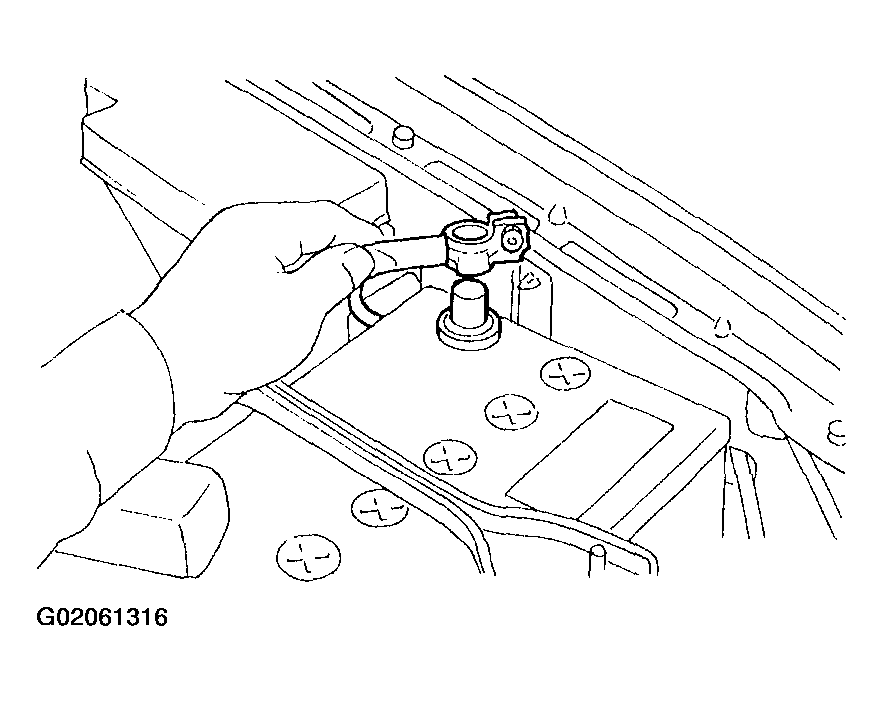

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable

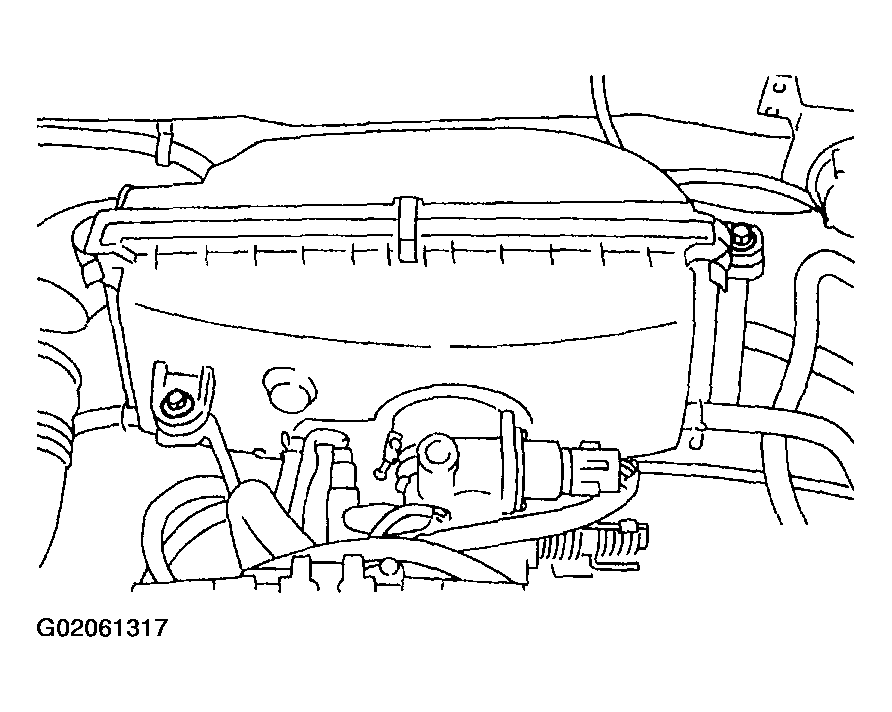

Remove air cleaner case.

Fig 2: Removing Air Cleaner Case

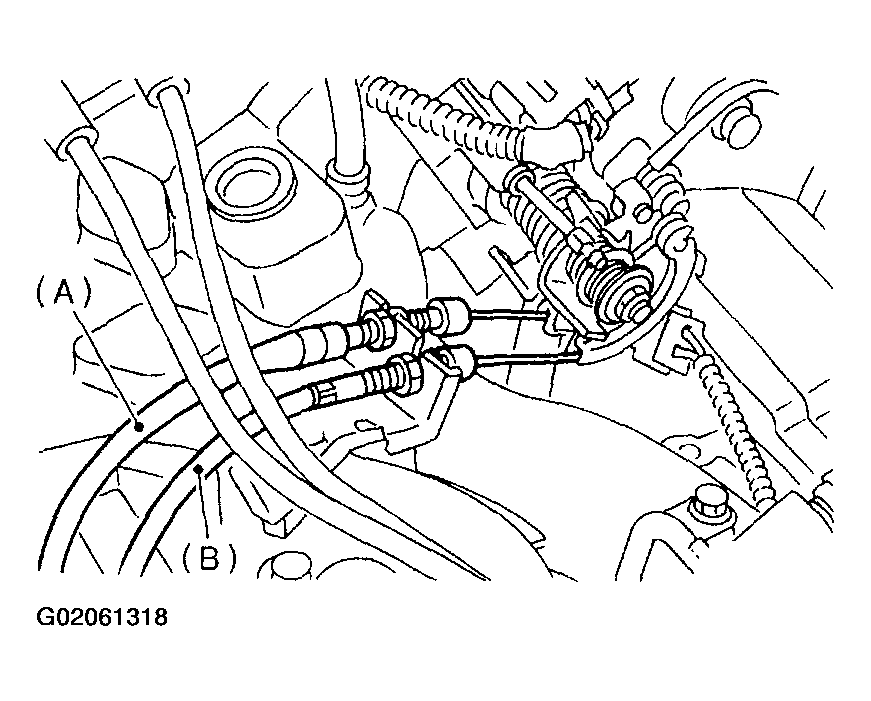

Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

Fig 3: Identifying Accelerator Cable & Cruise Control Cable

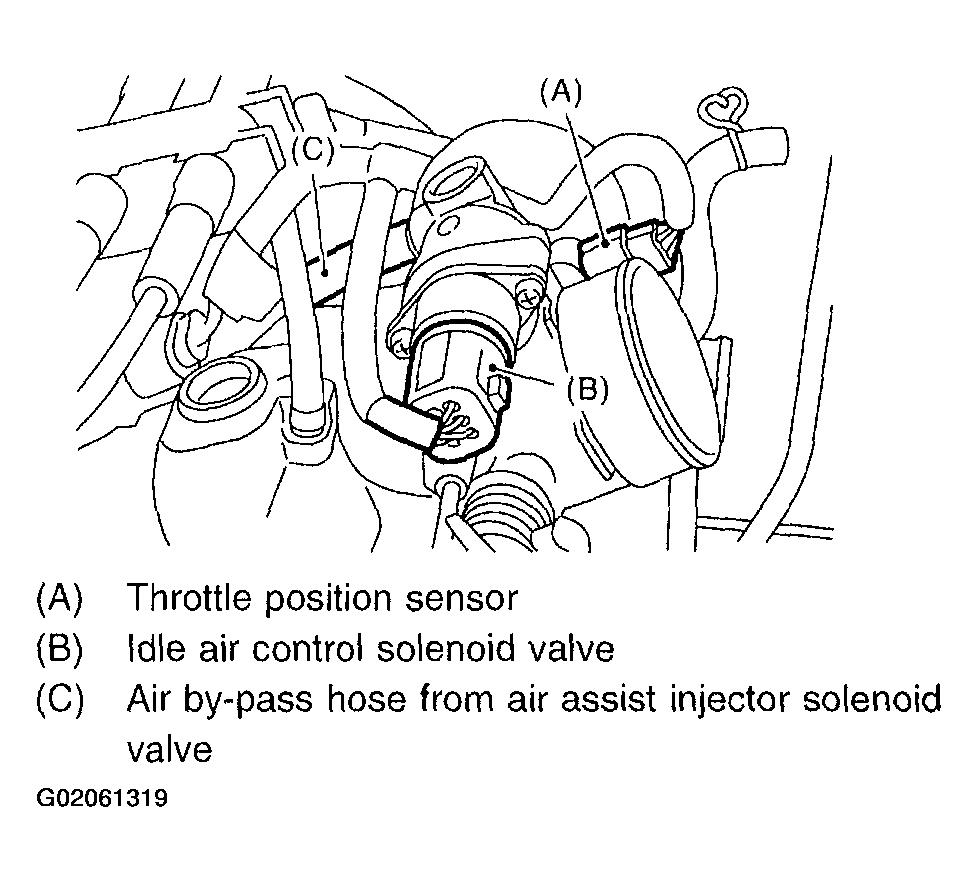

Disconnect connectors from idle air control solenoid valve, throttle position sensor.
Disconnect air by-pass hose from air assist injector solenoid valve.

Fig 4: Disconnecting Air By-Pass Hose From Air Assist Injector Solenoid Valve

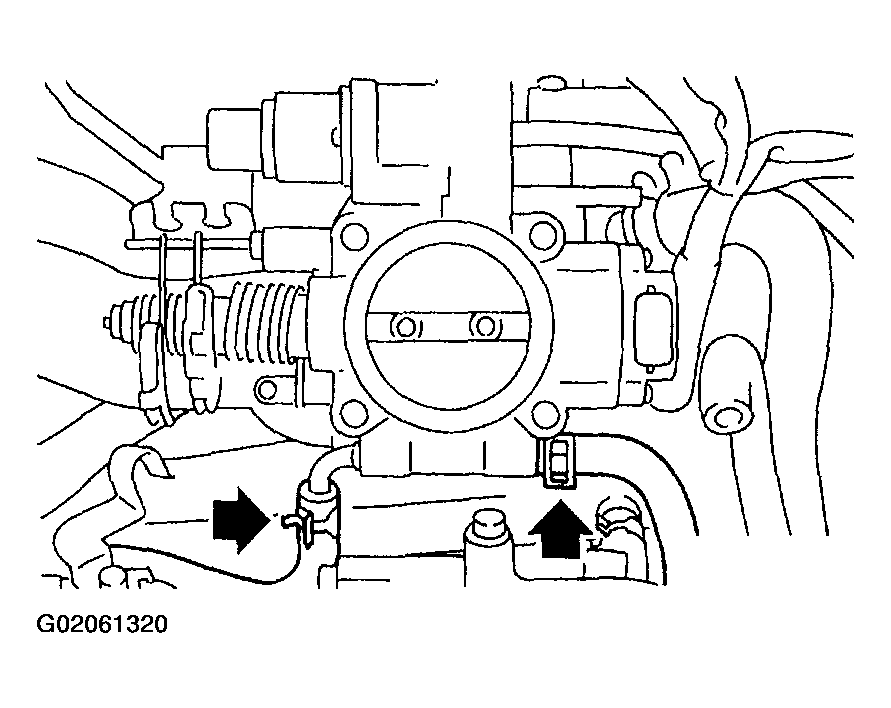

Disconnect engine coolant hoses from throttle body.

Fig 5: Disconnecting Engine Coolant Hoses From Throttle Body
Remove bolts which install throttle body to intake manifold.
