ABS Control Module And Hydraulic Control Unit (ABSCM & H/U)

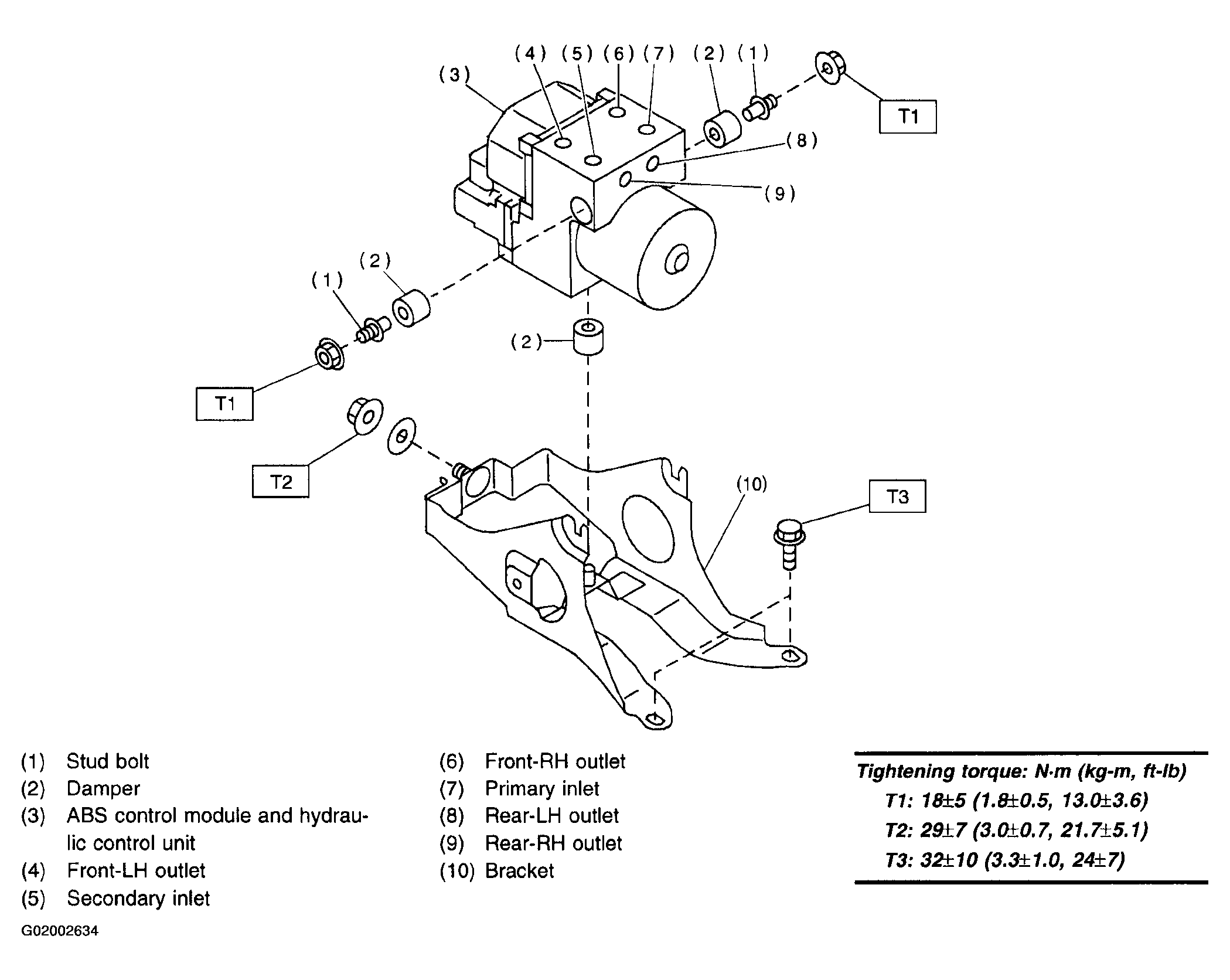

Fig 1: Identifying ABS Control Module & Hydraulic Control Unit (ABSCM & H/U)
G02002634

Tightening torque: N.m (kg-m, ft-lb)

  1. T1:  18+/-5 (1.8+/-0.5, 13.0+/-3.6)
  2. T2:  29+/-7 (3.0+/-0.7, 21.7+/-5.1)
  3. T3:  32+/-10 (3.3+/-1.0, 24+/-7)
