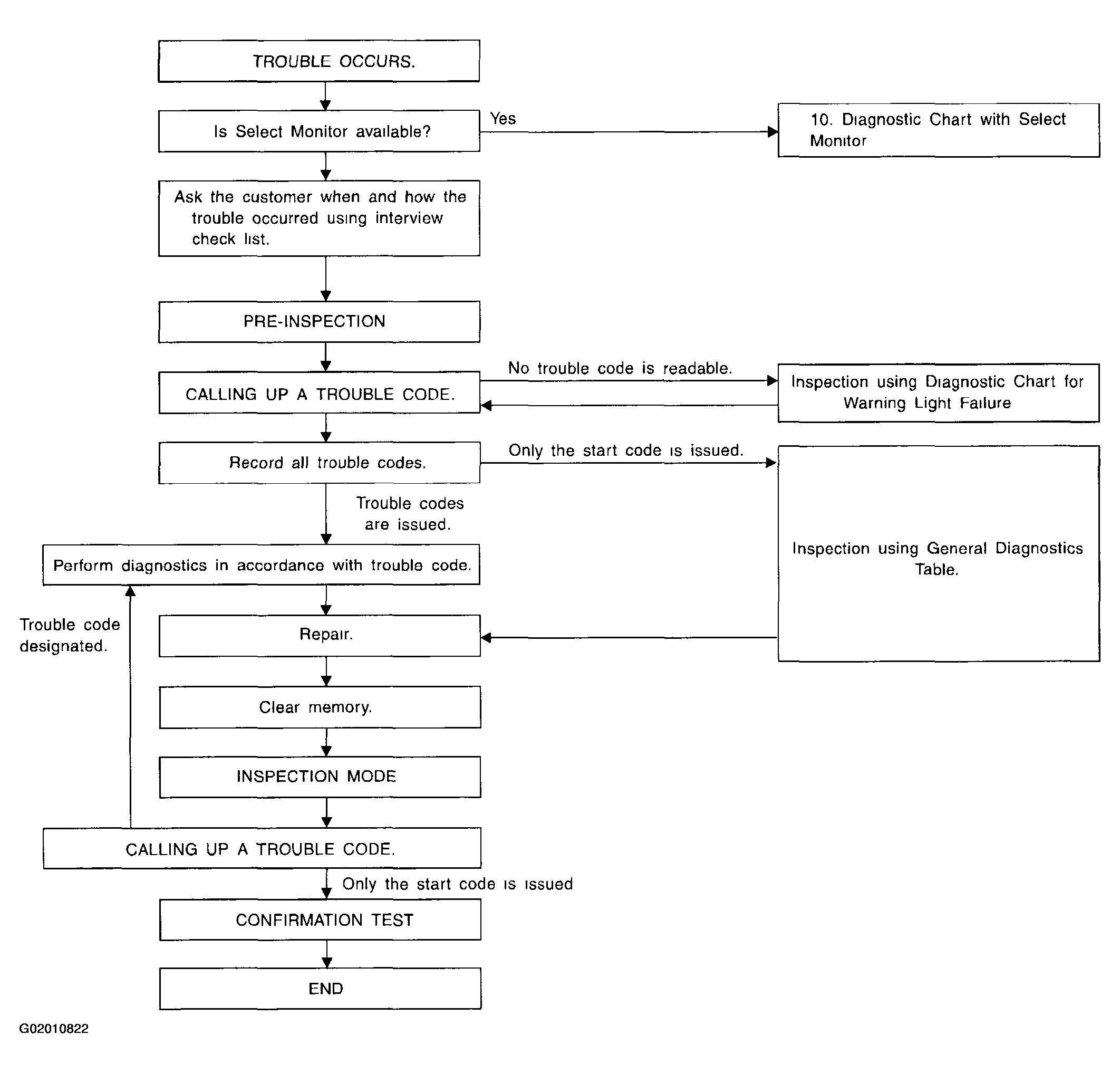

Basic Diagnostics Procedure
CAUTION:
Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.
NOTE:
- To check harness for broken wires or short circuits, shake it while holding it or the connector.
- When ABS warning light illuminates, read and record trouble code indicated by ABS warning light.
