Basic Diagnostic Chart

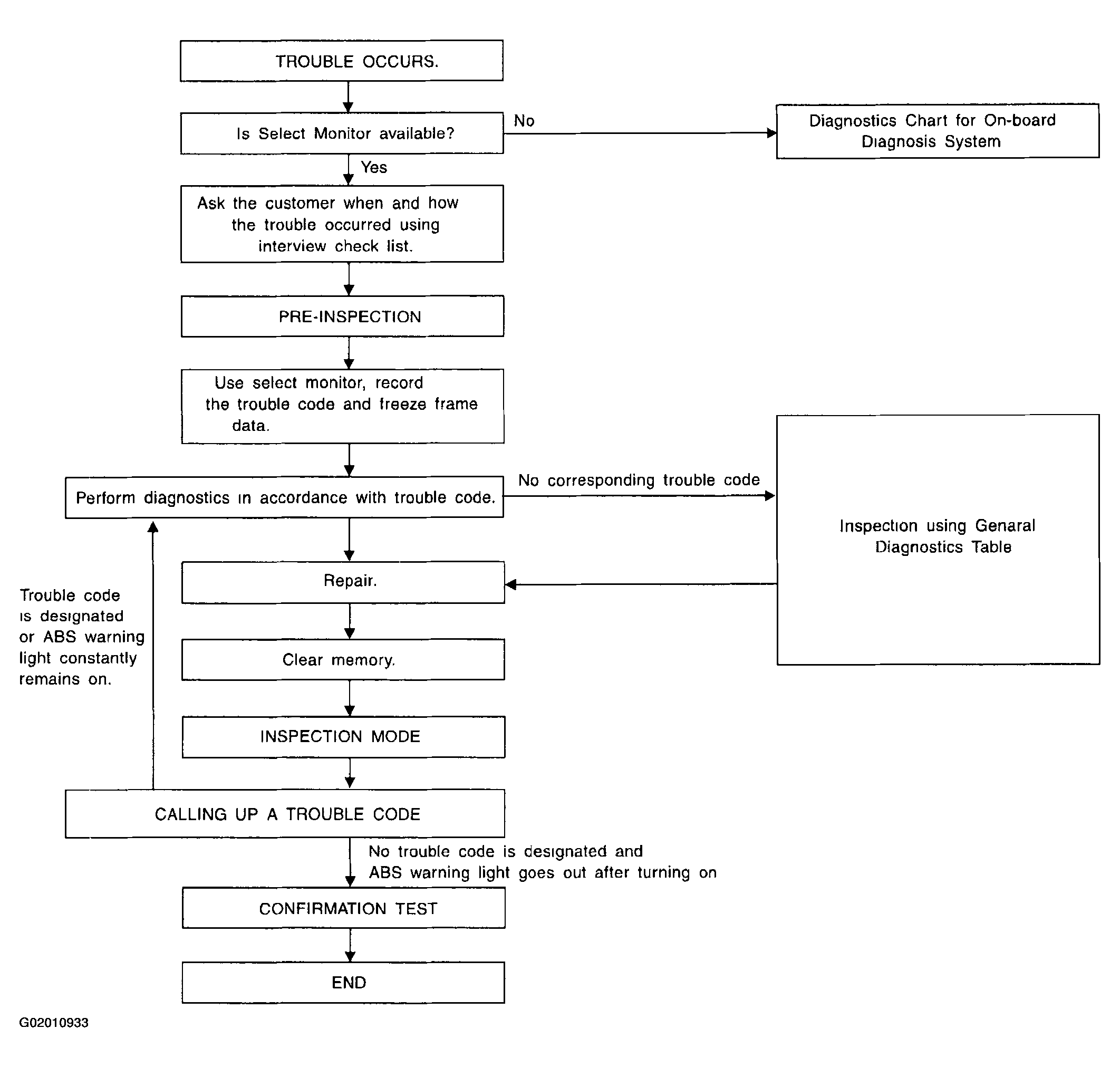

Fig 1: Basic Diagnostic Chart
G02010933
CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.
NOTE: To check harness for broken wires or short circuits, shake it while holding it or the connector.
