Trouble Code 56 Detection Of G Sensor Stick - Detection Of G Sensor Stick

DIAGNOSIS:

TROUBLE SYMPTOM:

WIRING DIAGRAM:

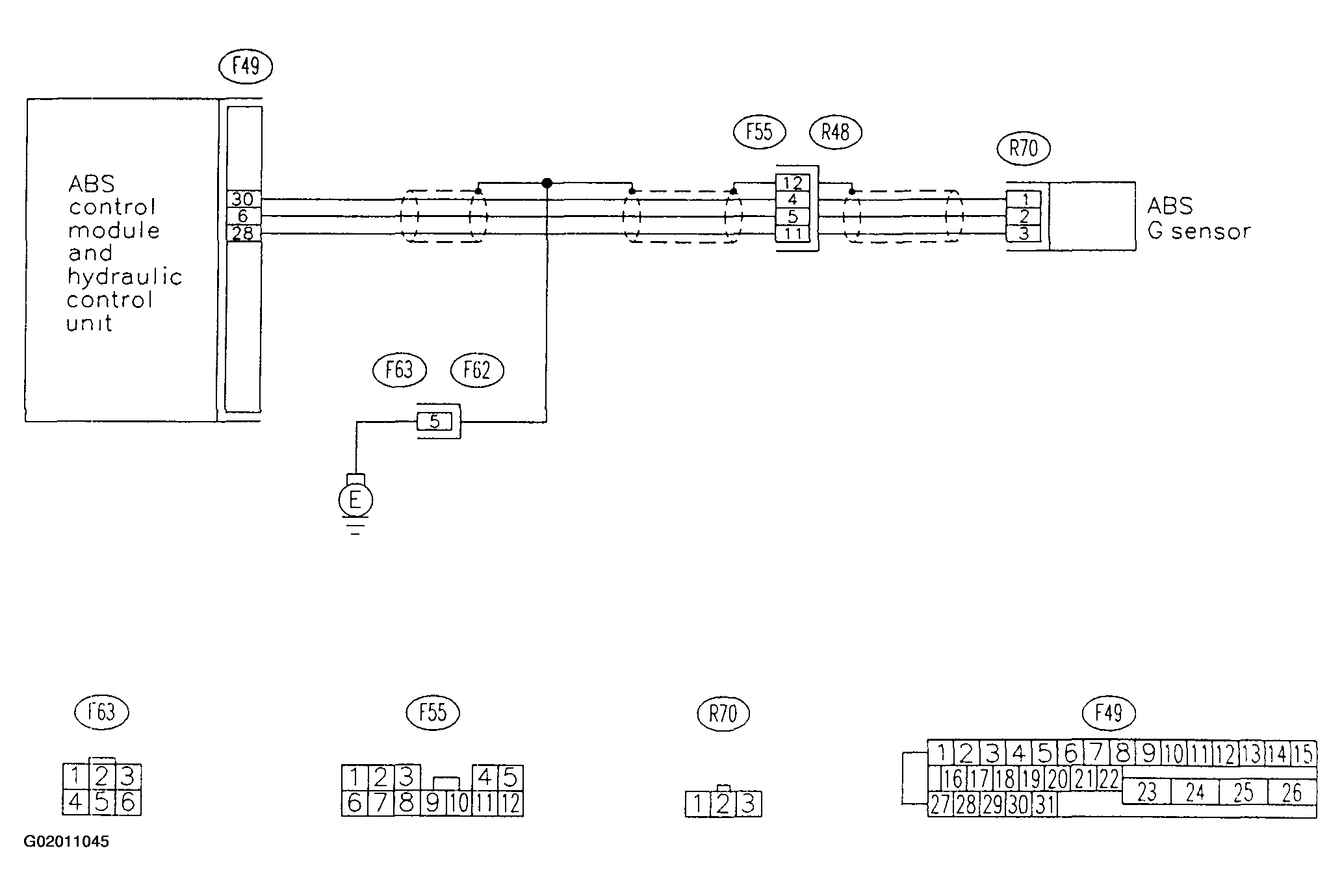

Fig 1: Wiring Diagram
G02011045
  1. 10AJ1: CHECK ALL FOUR WHEELS FOR FREE TURNING.

    CHECK: Have the wheels been turned freely such as when the vehicle is lifted up, or operated on a rolling road?

    1. YES:  The ABS is normal. Erase the trouble code.
    2. NO:  Go to step 10AJ2.
  2. 10AJ2: CHECK OUTPUT OF G SENSOR USING SELECT MONITOR.
    1. Select "Current data display & Save" on the select monitor.
    2. Read the select monitor display.

    CHECK: Is the G sensor output on the monitor display between 2.1 and 2.5 V when the vehicle is in horizontal position?

    1. YES:  Go to step 10AJ3.
    2. NO:  Go to step  10AJ8: CHECK OPEN CIRCUIT IN G SENSOR OUTPUT HARNESS AND GROUND HARNESS .
  3. 10AJ3: CHECK OUTPUT OF G SENSOR USING SELECT MONITOR.
    1. Turn ignition switch to OFF.
    2. Remove console box.
    3. Remove G sensor from vehicle. (Do not disconnect connector.)
    4. Turn ignition switch to ON.
    5. Select "Current data display & Save" on the select monitor.
    6. Read the select monitor display.

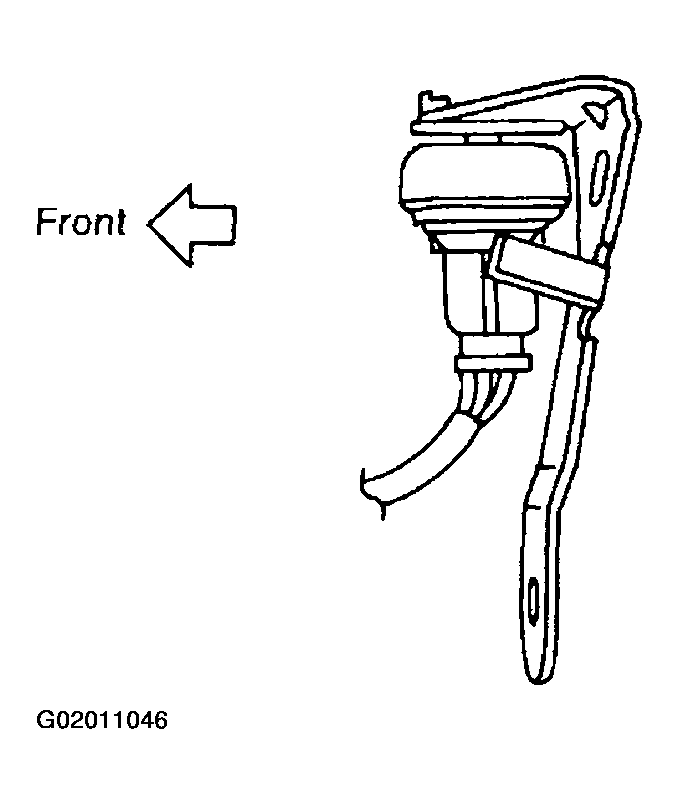

      Fig 2: Read Select Monitor Display "G" Sensor In This Position
      G02011046

    CHECK: Is the G sensor output on the monitor display between 3.7 and 4.1 V when G sensor is inclined forwards to 90°?

    1. YES:  Go to step 10AJ4.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  4. 10AJ4: CHECK OUTPUT OF G SENSOR USING SELECT MONITOR.

    Read the select monitor display.

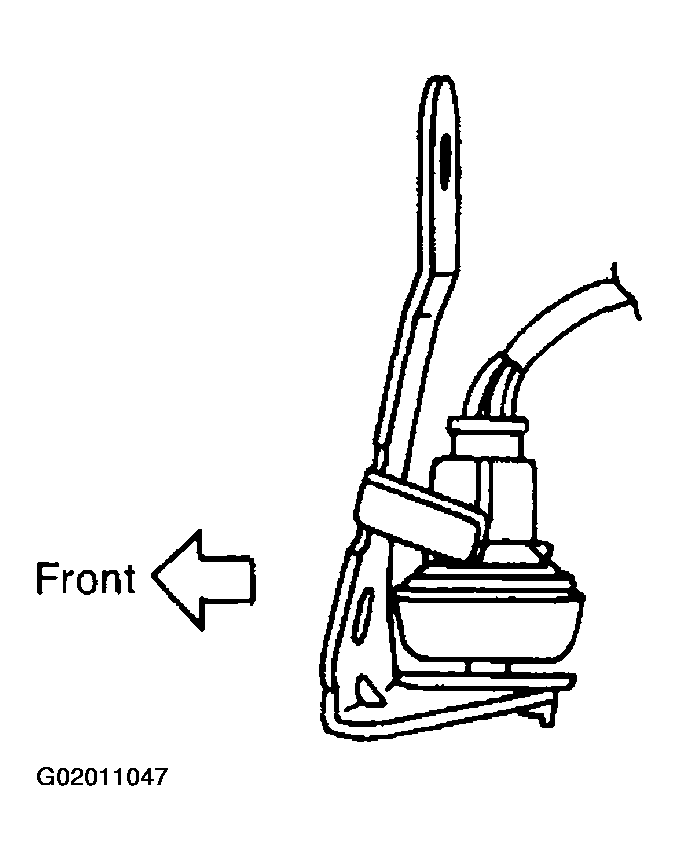

    Fig 3: Read Select Monitor Display "G" Sensor In This Position
    G02011047

    CHECK: Is the G sensor output on the monitor display between 0.5 and 0.9 V when G sensor is inclined backwards to 90°?

    1. YES:  Go to step 10AJ5.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  5. 10AJ5: CHECK POOR CONTACT IN CONNECTORS.

    Turn ignition switch to OFF.

    CHECK: Is there poor contact in connector between ABSCM & H/U and G sensor?

    1. YES:  Repair connector.
    2. NO:  Go to step 10AJ6.
  6. 10AJ6: CHECK ABSCM & H/U.
    1. Connect all connectors.
    2. Erase the memory.
    3. Perform inspection mode.
    4. Read out the trouble code.

    CHECK: Is the same trouble code as in the current diagnosis still being output?

    1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
    2. NO:  Go to step 10AJ7.
  7. 10AJ7: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

    CHECK: Are other trouble codes being output?

    1. YES:  Proceed with the diagnosis corresponding to the trouble code.
    2. NO:  A temporary poor contact.
  8. 10AJ8: CHECK OPEN CIRCUIT IN G SENSOR OUTPUT HARNESS AND GROUND HARNESS.
    1. Turn ignition switch to OFF.
    2. Disconnect connector from ABSCM & H/U.
    3. Measure resistance between ABSCM & H/U connector terminals.

    Connector & terminal

    1. (F49) No. 6 - No. 28:

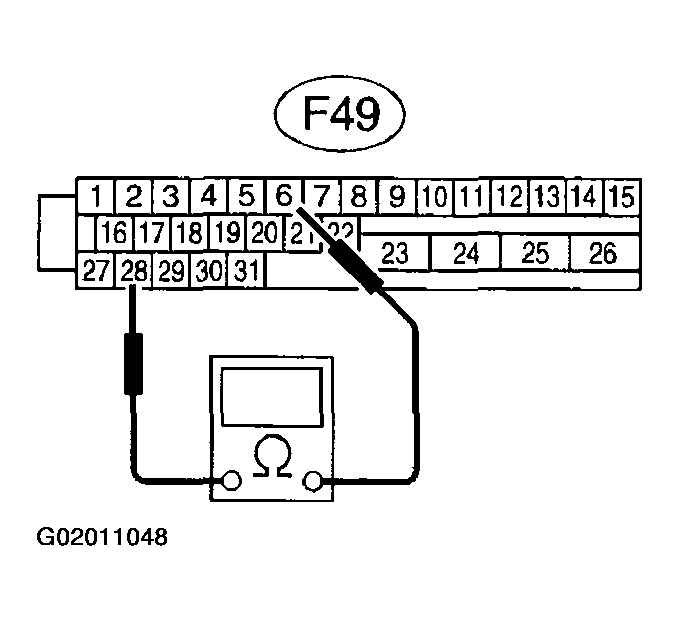

    Fig 4: Measuring Resistance Between ABSCM & H/U Connector Terminals
    G02011048

    CHECK: Is the resistance between 4.3 and 4.9 kohm?

    1. YES:  Go to step 10AJ9.
    2. NO:  Repair harness/connector between G sensor and ABSCM & H/U.
  9. 10AJ9: CHECK G SENSOR.
    1. Remove console box.
    2. Remove G sensor from vehicle.
    3. Connect connector to G sensor.
    4. Connect connector to ABSCM & H/U.
    5. Turn ignition switch to ON.
    6. Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 2 (+) - No. 1 (-):

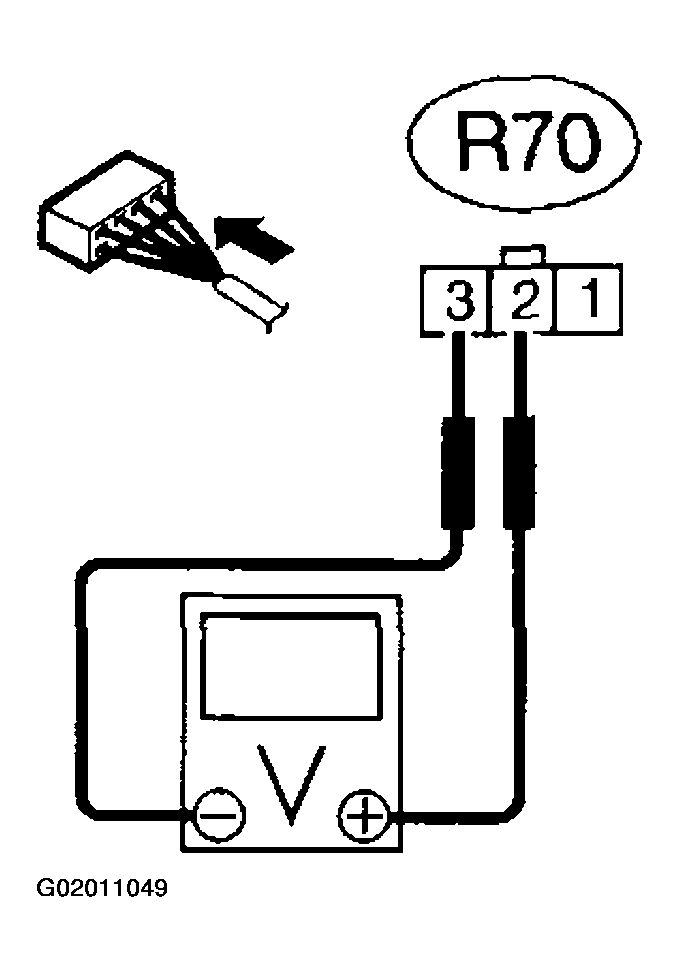

    Fig 5: Measuring Voltage Between "G" Sensor Connector Terminals
    G02011049

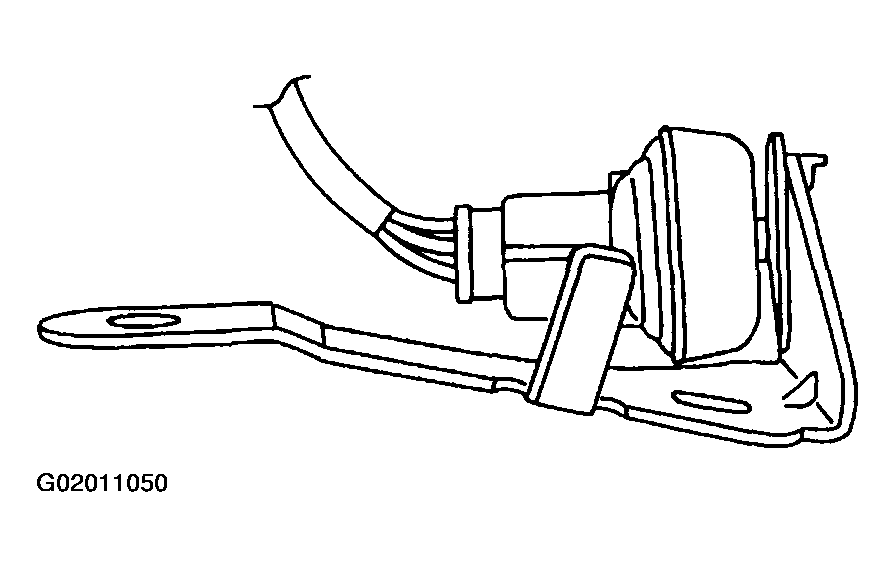

    Fig 6: Measuring "G" Sensor In This Position
    G02011050

    CHECK: Is the voltage between 2.1 and 2.5 V when G sensor is horizontal?

    1. YES:  Go to step 10AJ10.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  10. 10AJ10: CHECK G SENSOR.

    Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 2 (+) - No. 1 (-):
    Fig 7: Measuring "G" Sensor In This Position
    G02011051

    CHECK: Is the voltage between 3.7 and 4.1 V when G sensor is inclined forwards to 90°?

    1. YES:  Go to step 10AJ11.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  11. 10AJ11: CHECK G SENSOR.

    Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 2 (+) - No. 1 (-):

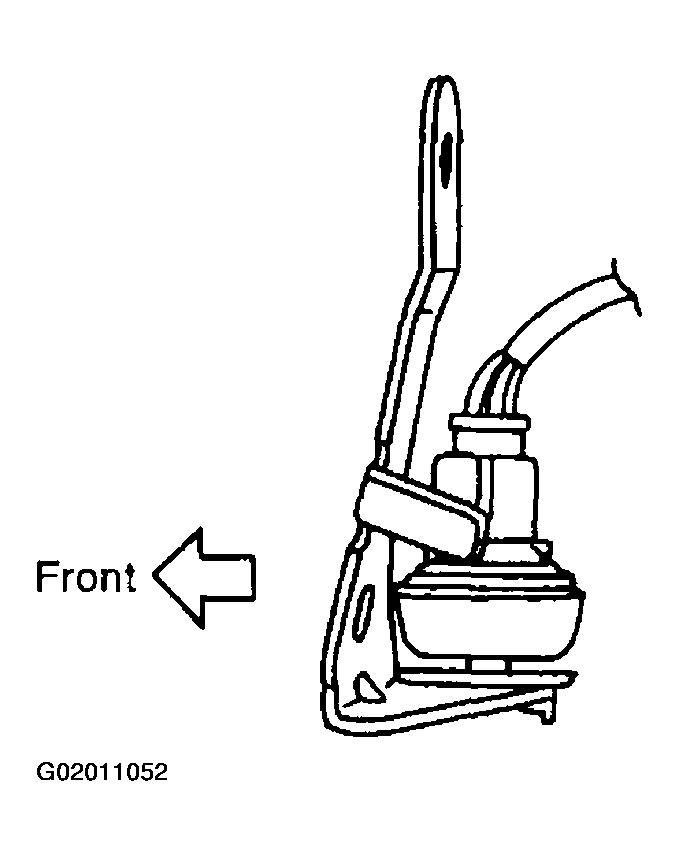

    Fig 8: Measuring "G" Sensor In This Position
    G02011052

    CHECK: Is the voltage between 0.5 and 0.9 V when G sensor is inclined backwards to 90°?

    1. YES:  Go to step 10AJ12.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  12. 10AJ12: CHECK ABSCM & H/U.
    1. Turn ignition switch to OFF.
    2. Connect all connectors.
    3. Erase the memory.
    4. Perform inspection mode.
    5. Read out the trouble code.

    CHECK: Is the same trouble code as in the current diagnosis still being output?

    1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
    2. NO:  Go to step 10AJ13.
  13. 10AJ13: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

    CHECK: Are other trouble codes being output?

    1. YES:  Proceed with the diagnosis corresponding to the trouble code.
    2. NO:  A temporary poor contact.
