Fuse Index Information

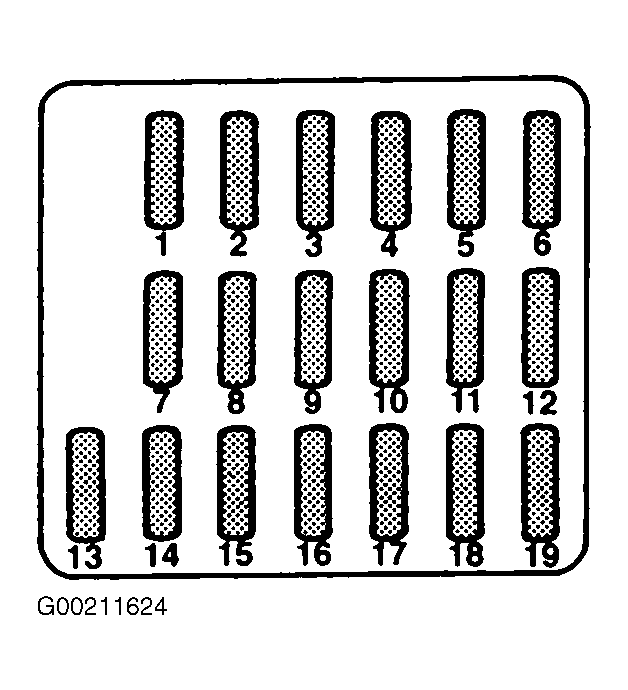

Fig 1: Identifying Under-Dash Fuse/Relay Box

Courtesy of SUBARU OF AMERICA, INC.

FUSE PANEL BEHIND COIN TRAY

Fuse No.	Fuse Rating	Circuit
1	15A	Heater Fan
2	15A	Heater Fan
3	15A	Power Door Lock
4	20A	Cigarette Lighter & Remote Controlled Rear View Mirrors
5	10A	Tail Light & Parking Light
6	15A	SRS Air Bag
7	15A	Fog Light
8	20A	ABS Solenoid
9	15A	Radio & Clock
10	N/A	N/A
11	15A	Engine Ignition System & SRS Air Bag
12	10A	Illumination Brightness Control
13	15A	Wiper Deicer
14	N/A	N/A
15	20A	Windshield Wiper & Washer, & Rear Window Wiper & Washer
16	20A	Brake Light
17	15A	Air Conditioner
18	15A	Backup Light, Cruise Control & ABS Control
19	20A	Rear Accessory Power Socket & Seat Heater
