Fuel Sub Level Sensor (28W)

REMOVAL AND INSTALLATION

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

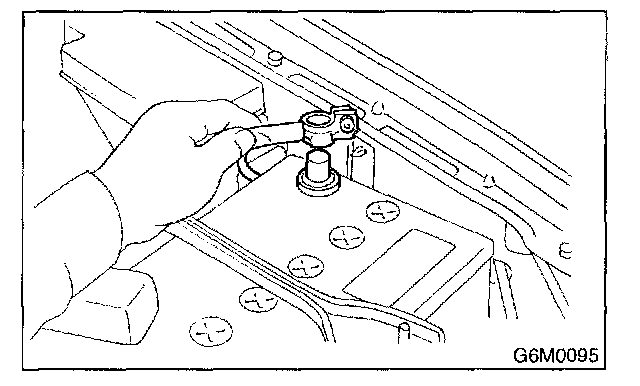

1. Disconnect battery ground cable.
2. Remove fuel filler cap.

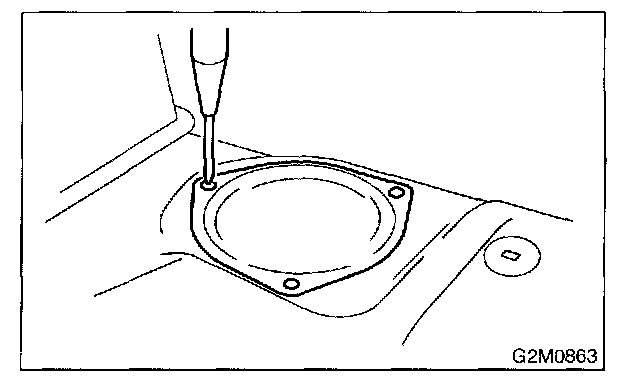

3. Remove service hole cover.

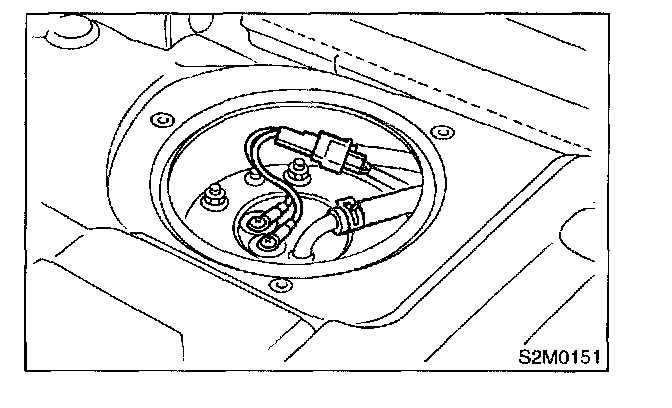

4. Disconnect connector from fuel sub level sensor and disconnect jet pump hose.

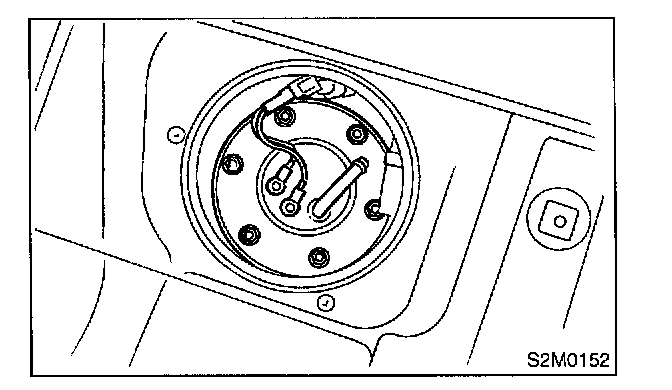

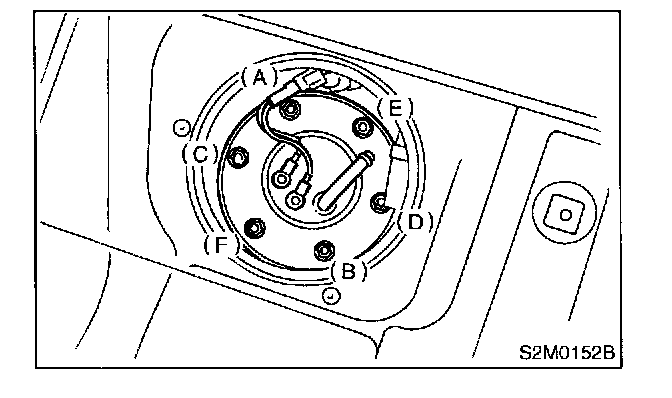

5. Remove bolts which install fuel sub level sensor on fuel tank.




6. Remove fuel sub level sensor.

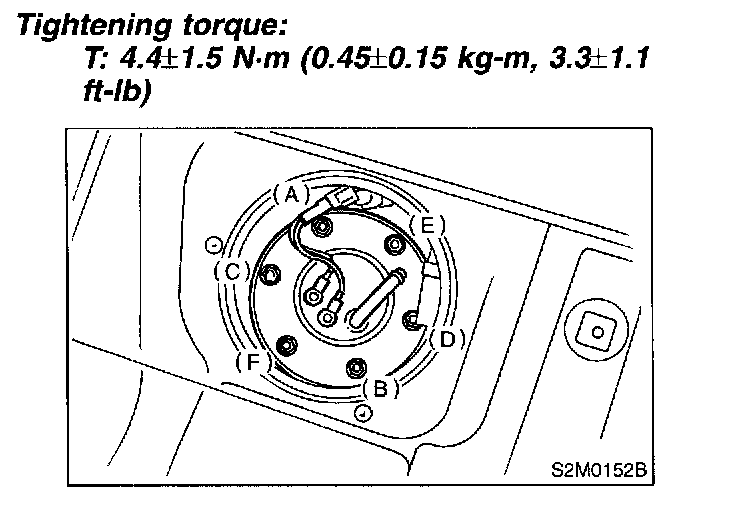

7. Install in the reverse order of removal.
