General Diagnostics Table With Non-Conformity For Engine

A: GENERAL DIAGNOSTICS TABLE WITH NON-CONFORMITY SYMPTOM FOR ENGINE

NOTE: Malfunction of parts other than those listed is also possible.

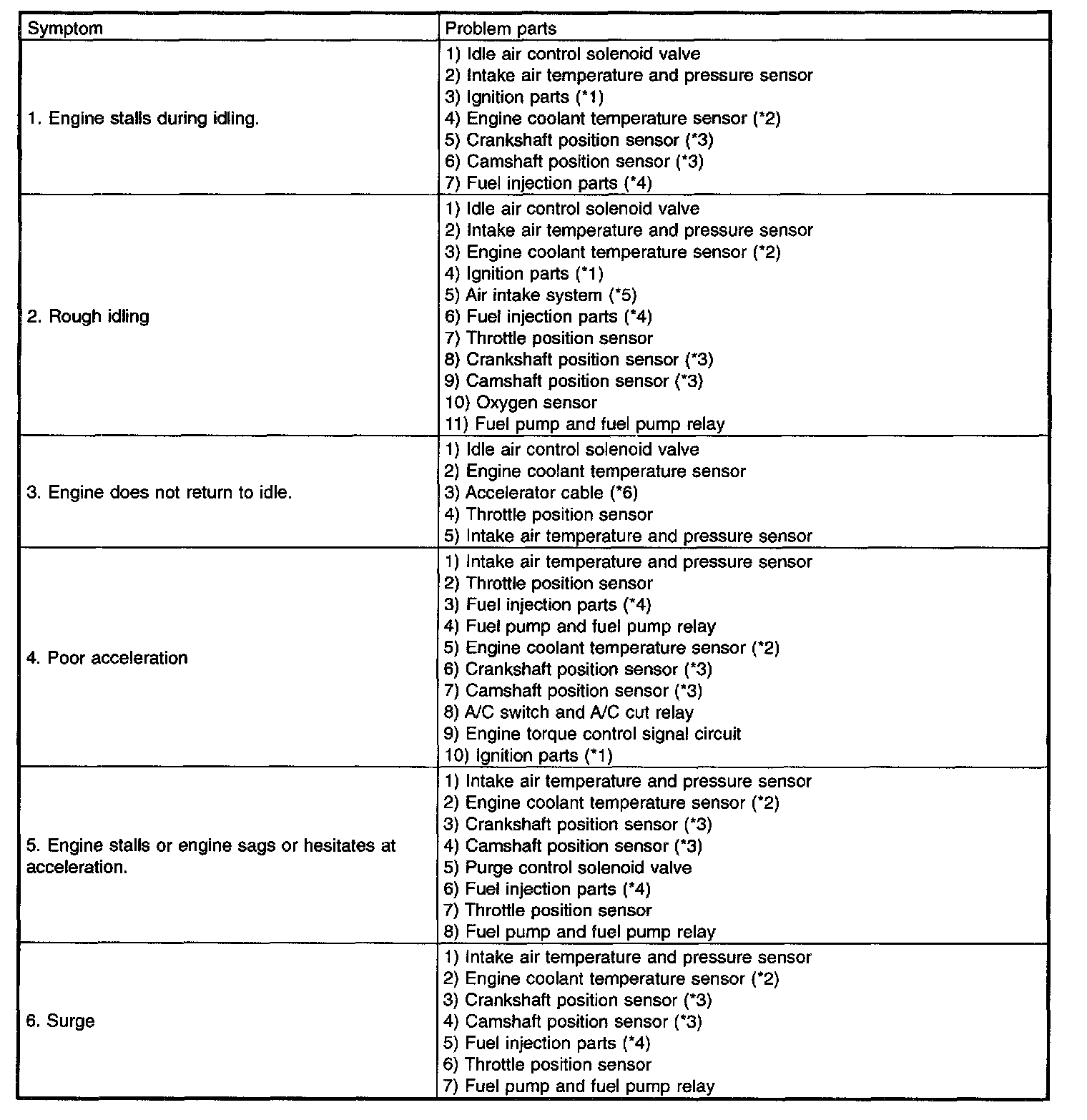

Part 1:

Part 2:

*1: Check ignition coil & ignitor assembly and spark plug.
*2: Indicate the symptom occuring only in cold temperatures.
*3: Ensure the secure installtion.
*4: Check fuel injector, fuel pressure regulator and fuel filter.
*5: Inspect air leak in air intake system.
*6: Adjust accelerator cable.
