Control Module: Testing and Inspection

Connector View:

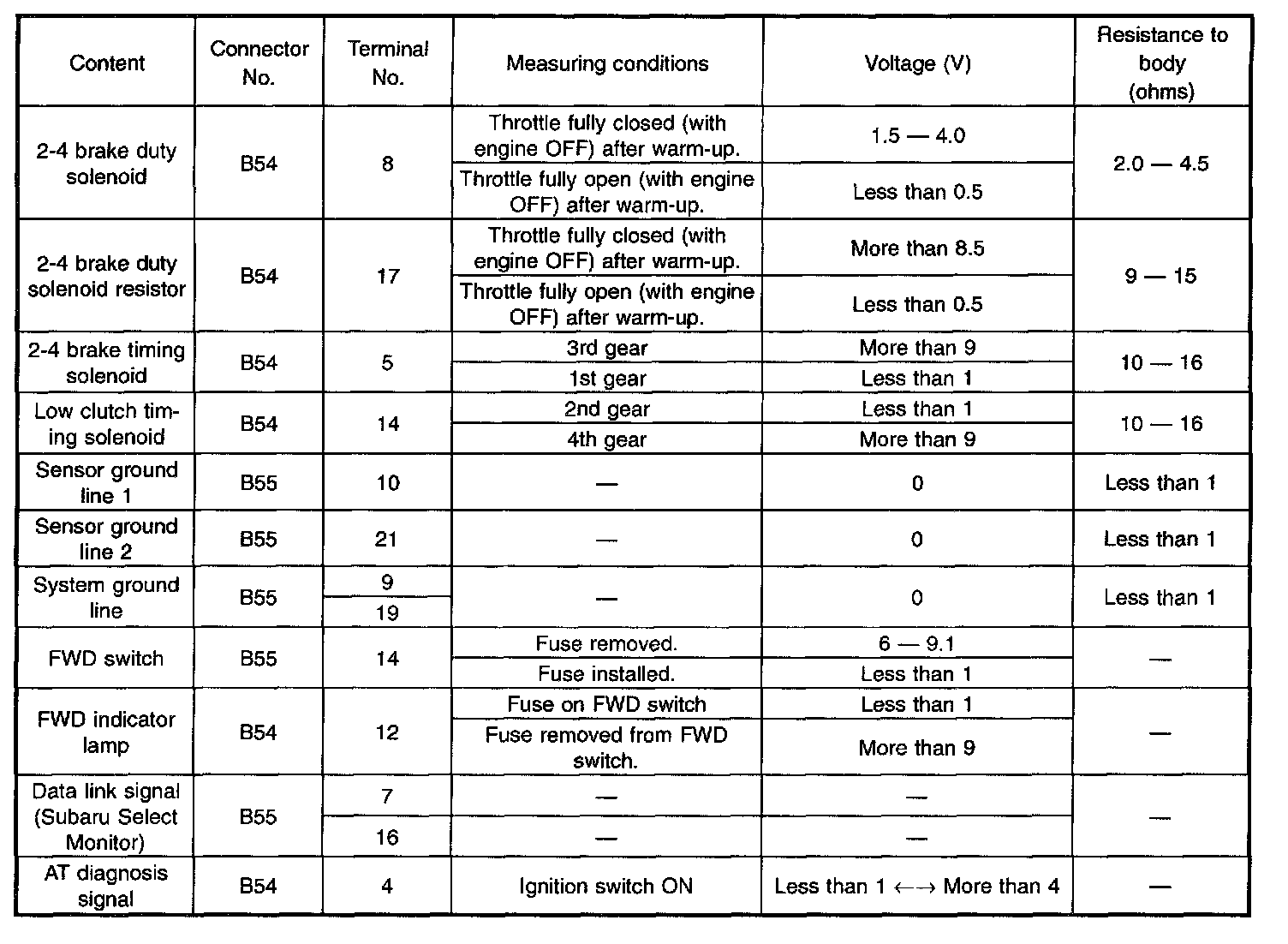

Pinouts Part 1:

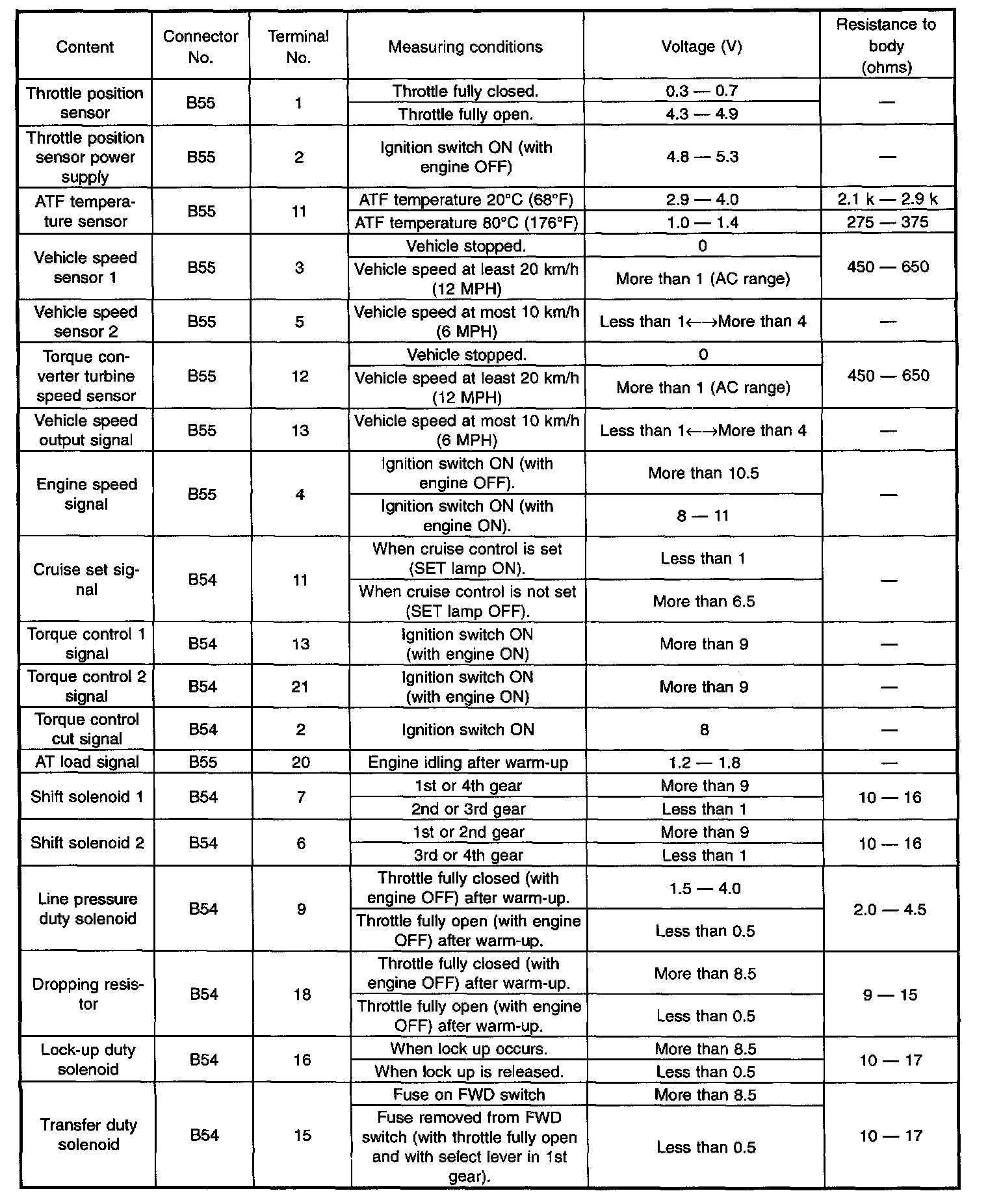

Pinouts Part 2:

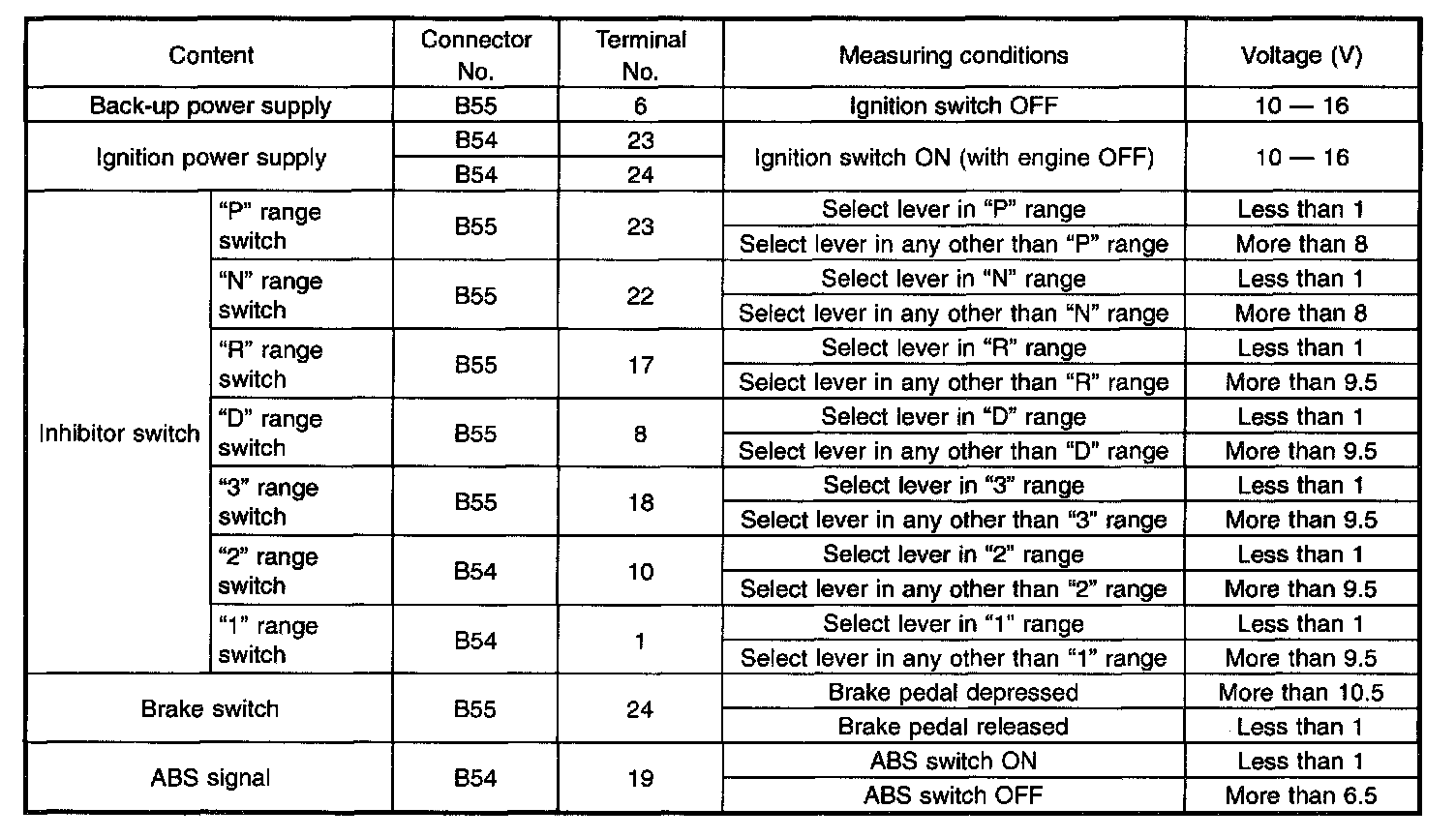

Pinouts Part 3:
