Control Module Power Supply and Ground Line

B: CONTROL MODULE POWER SUPPLY AND GROUND LINE

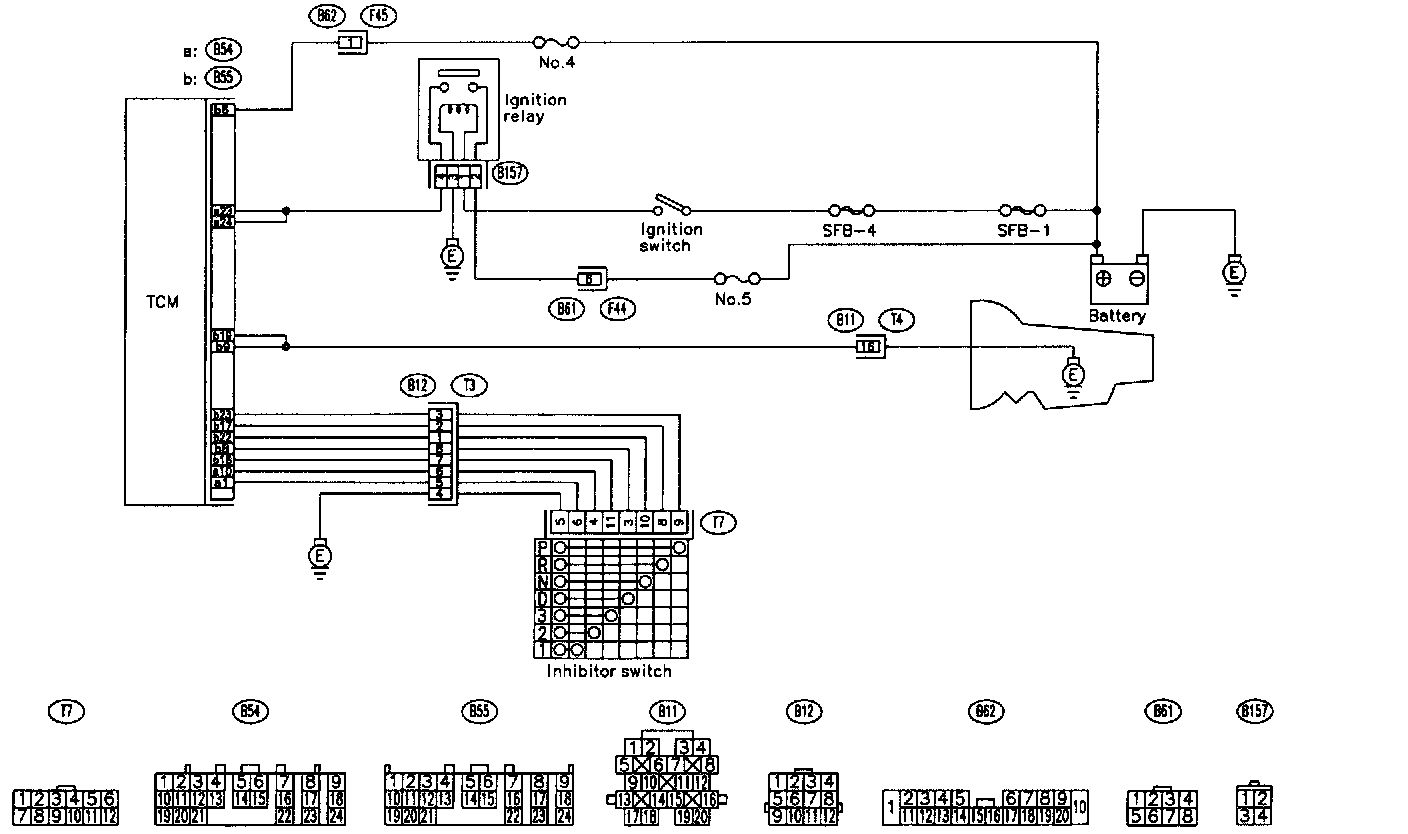

WIRING DIAGRAM:

PROCEDURE:

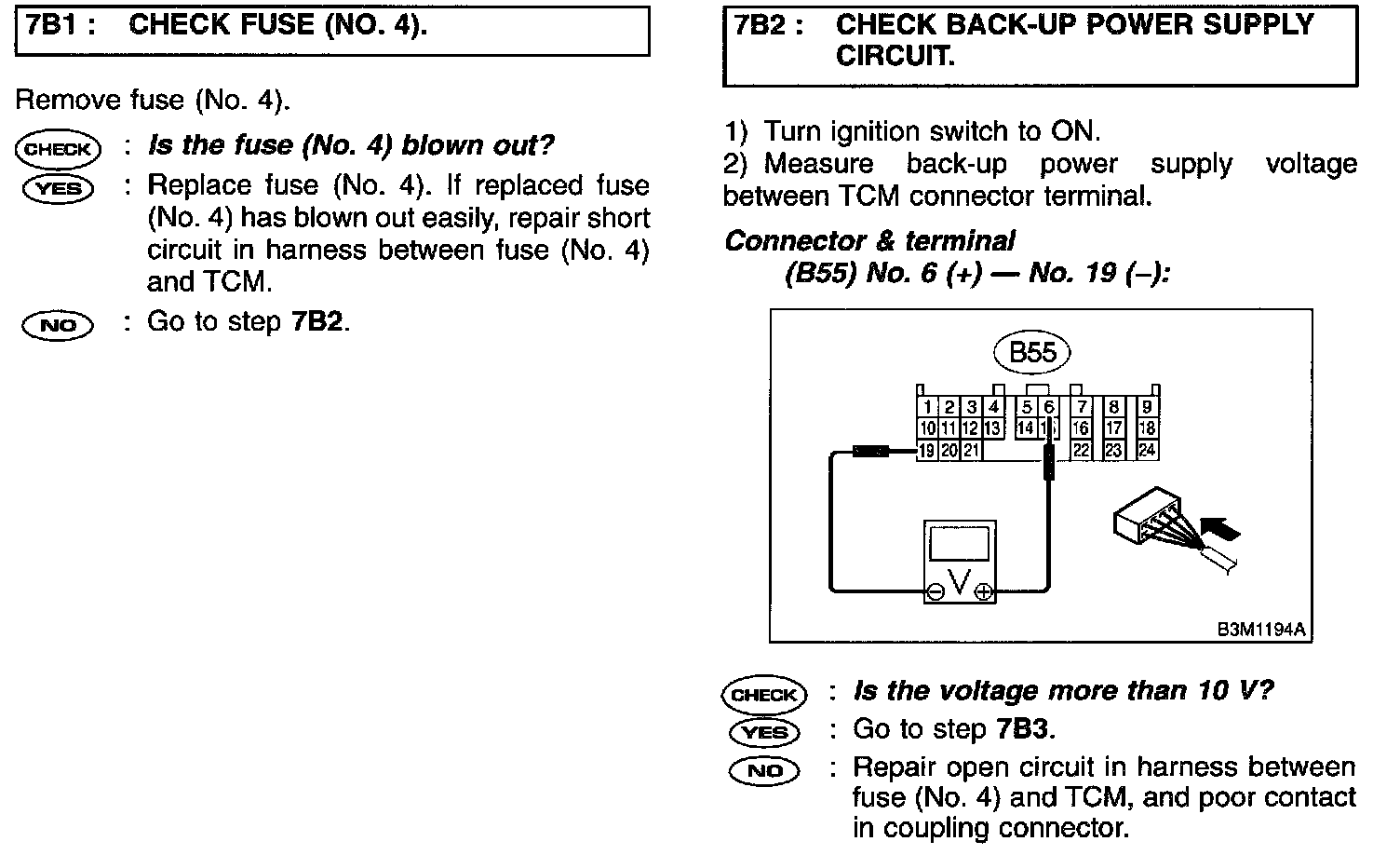

7B1 - 7B2

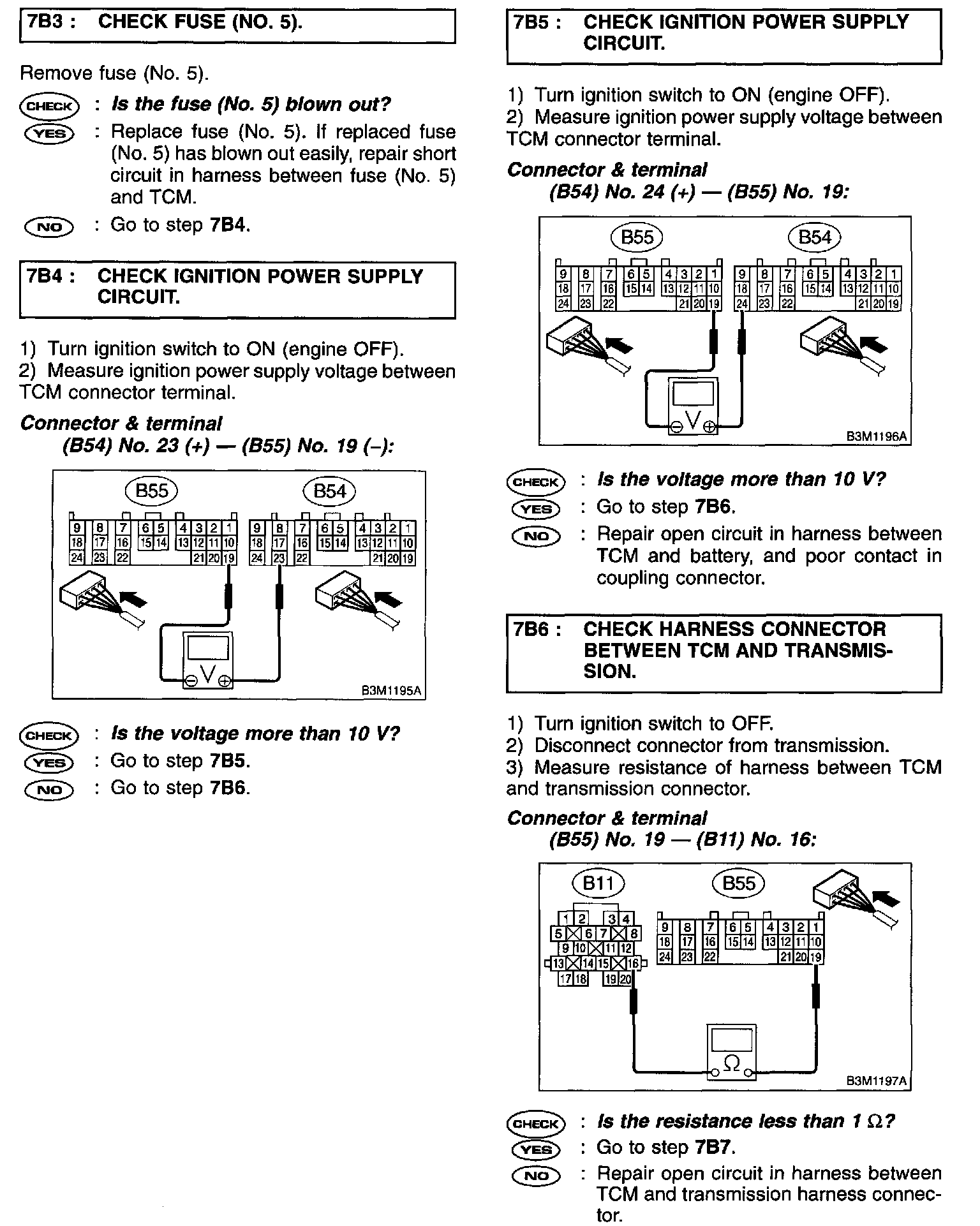

7B3 - 7B6





7B7 - 7B9
