AWD System

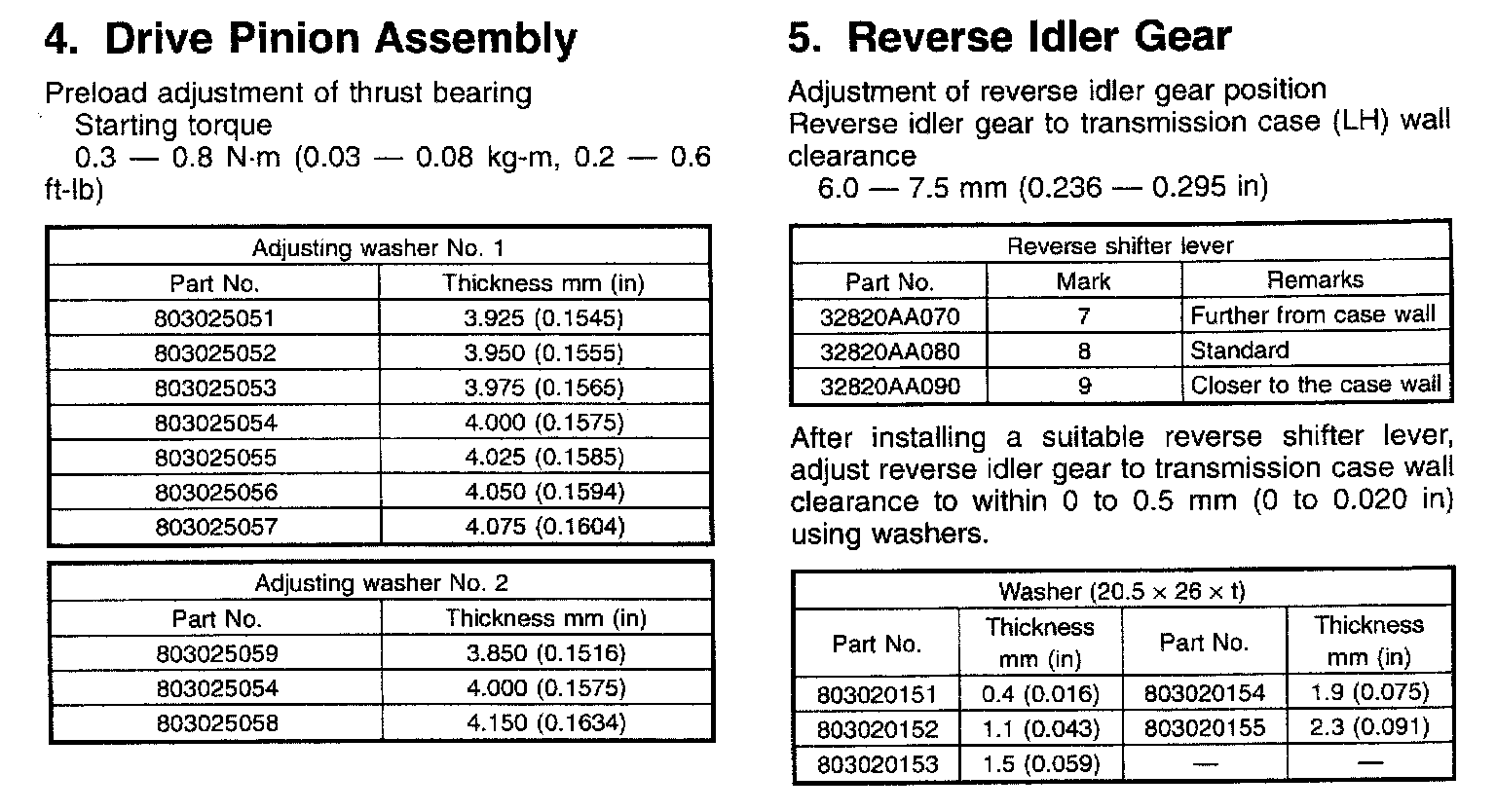

5-spd M/T, Transmission Drive Pinion & Reverse Idler Gear:

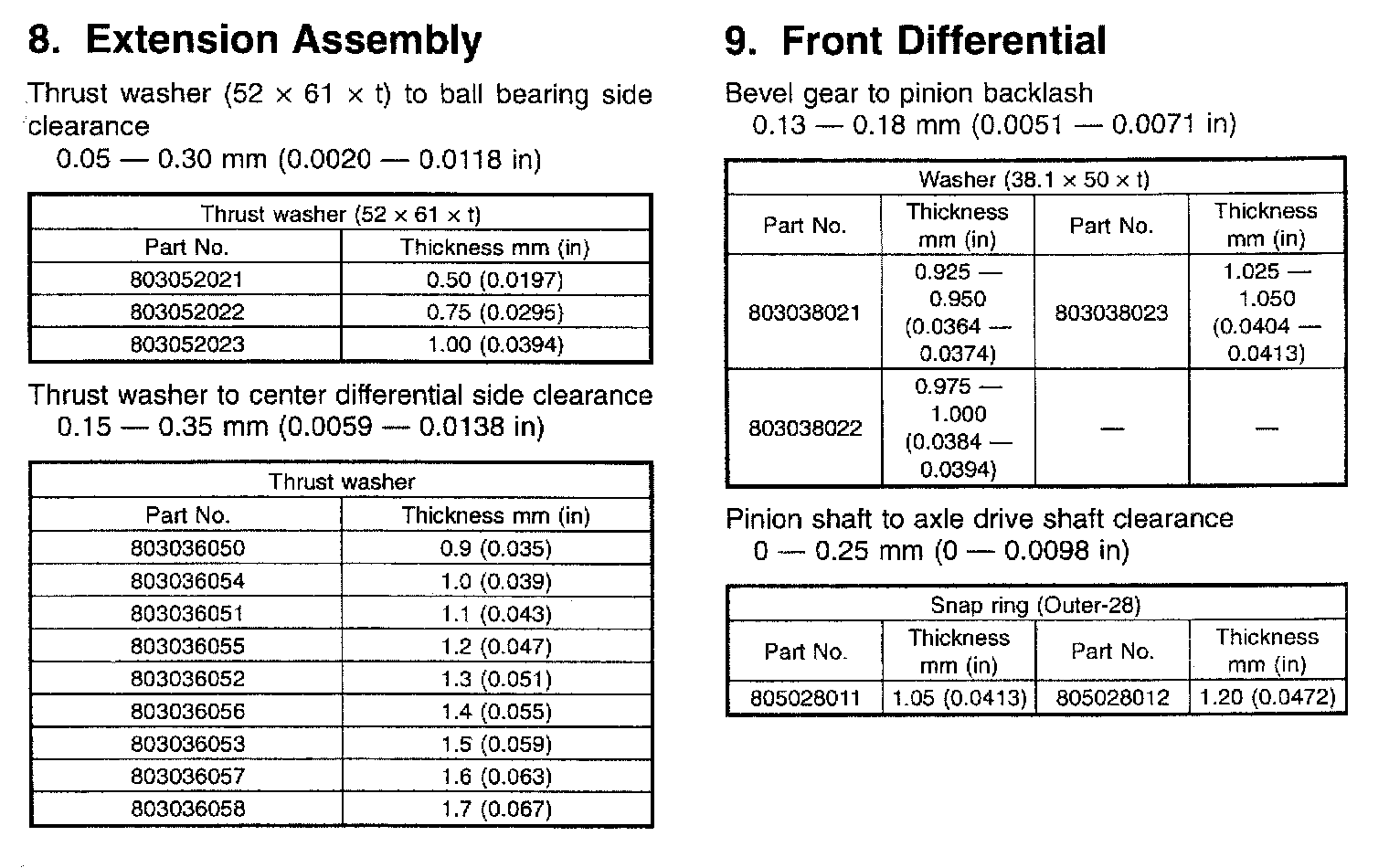

5-spd M/T, Transmission Extension Assembly & Front Differential:

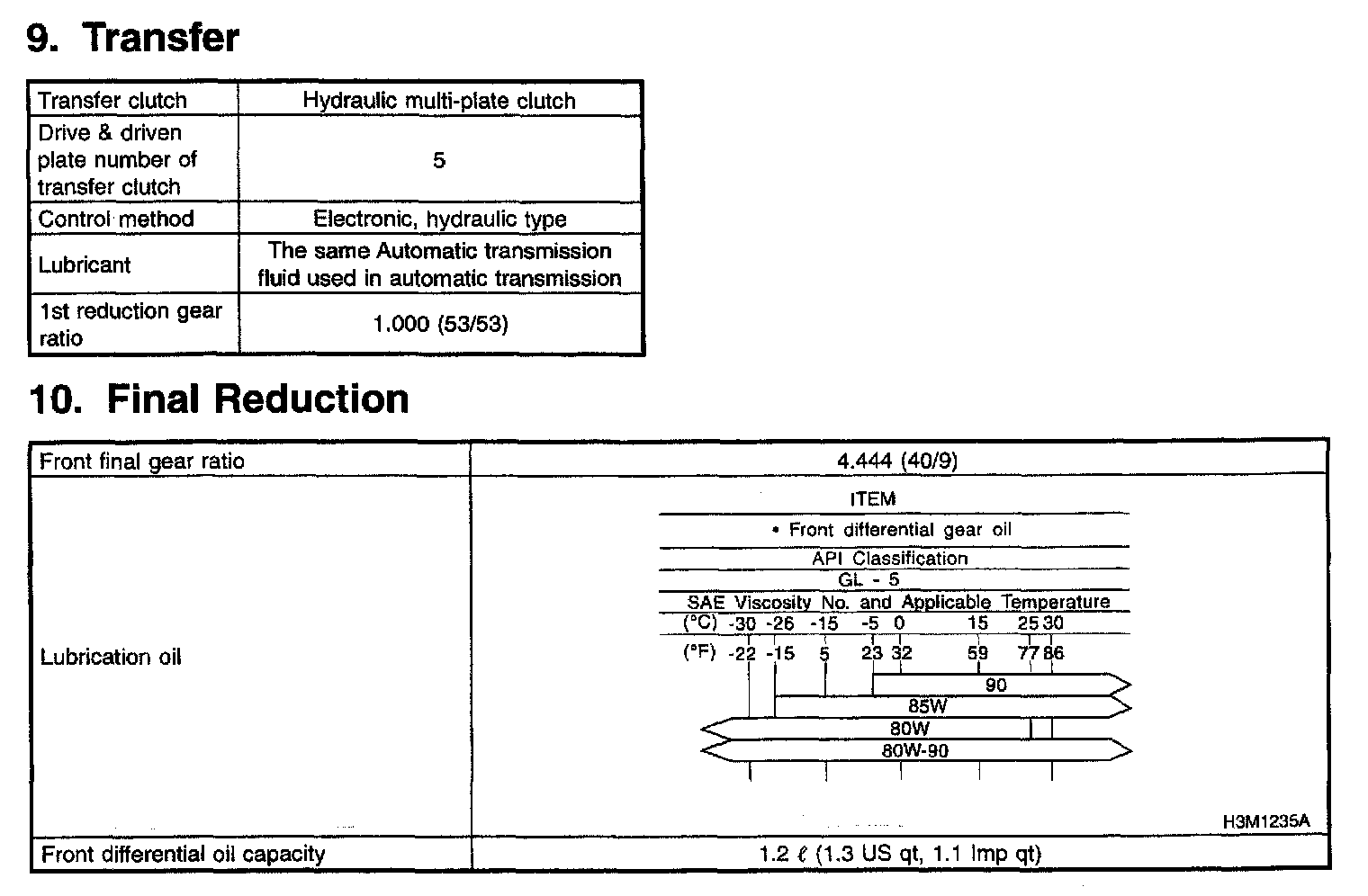

4-spd A/T, Transfer Case & Final Reduction:





4-spd A/T, Transmission Drive Pinion Shim Application:





Rear Differential Service Data:

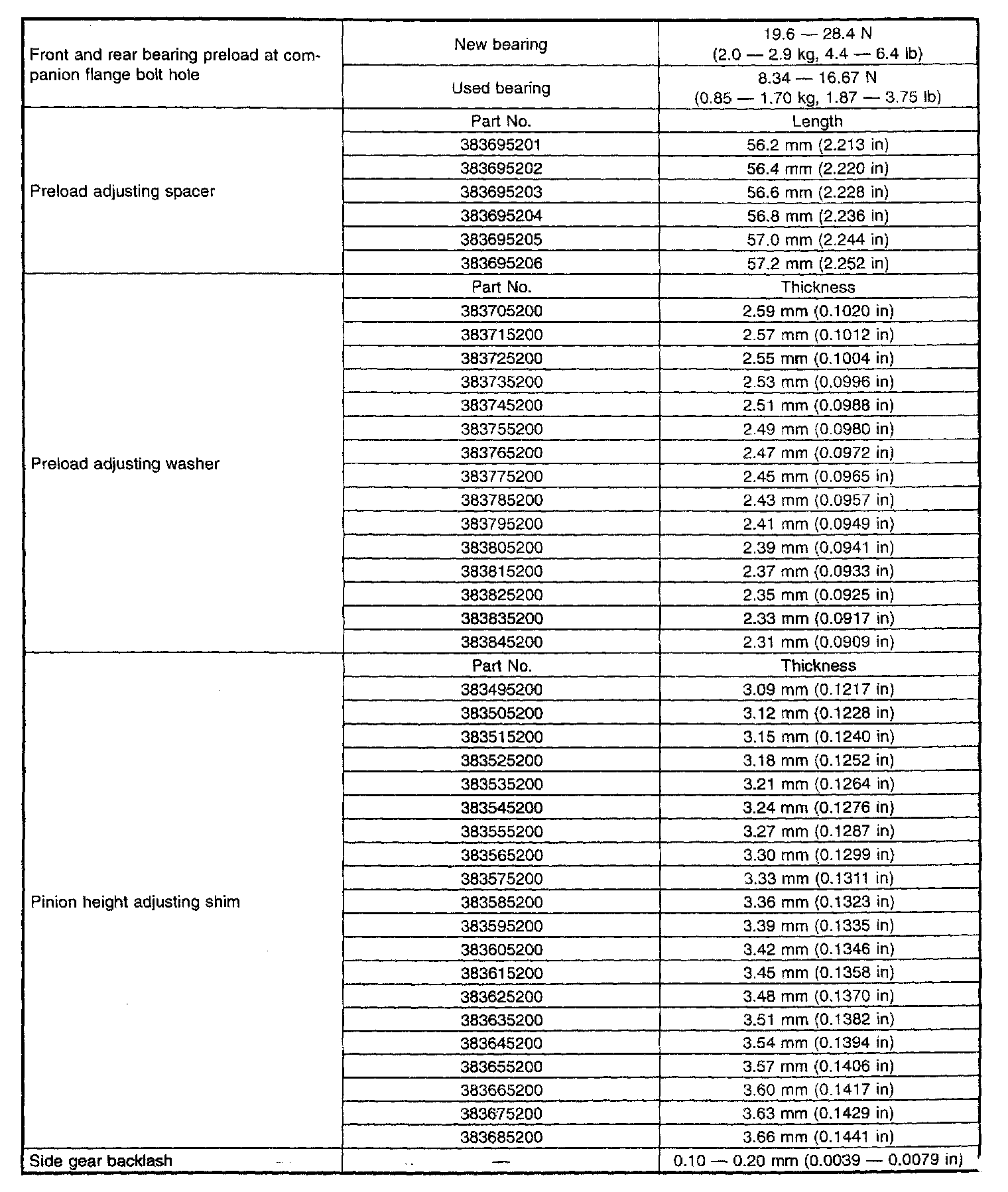

Rear Differential Service / Overhaul Data:

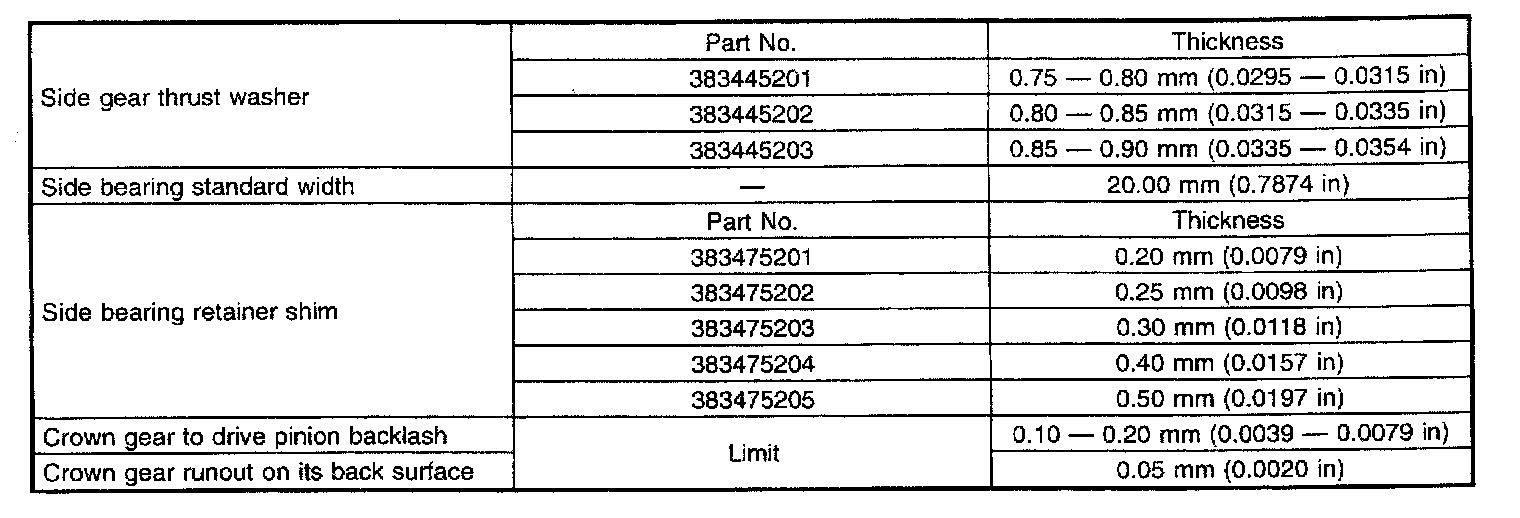

Rear Differential Service / Overhaul Data:
