Gear Shift Lever

The gearshift lever system is a parallel link type whose stay is rubber-mounted.

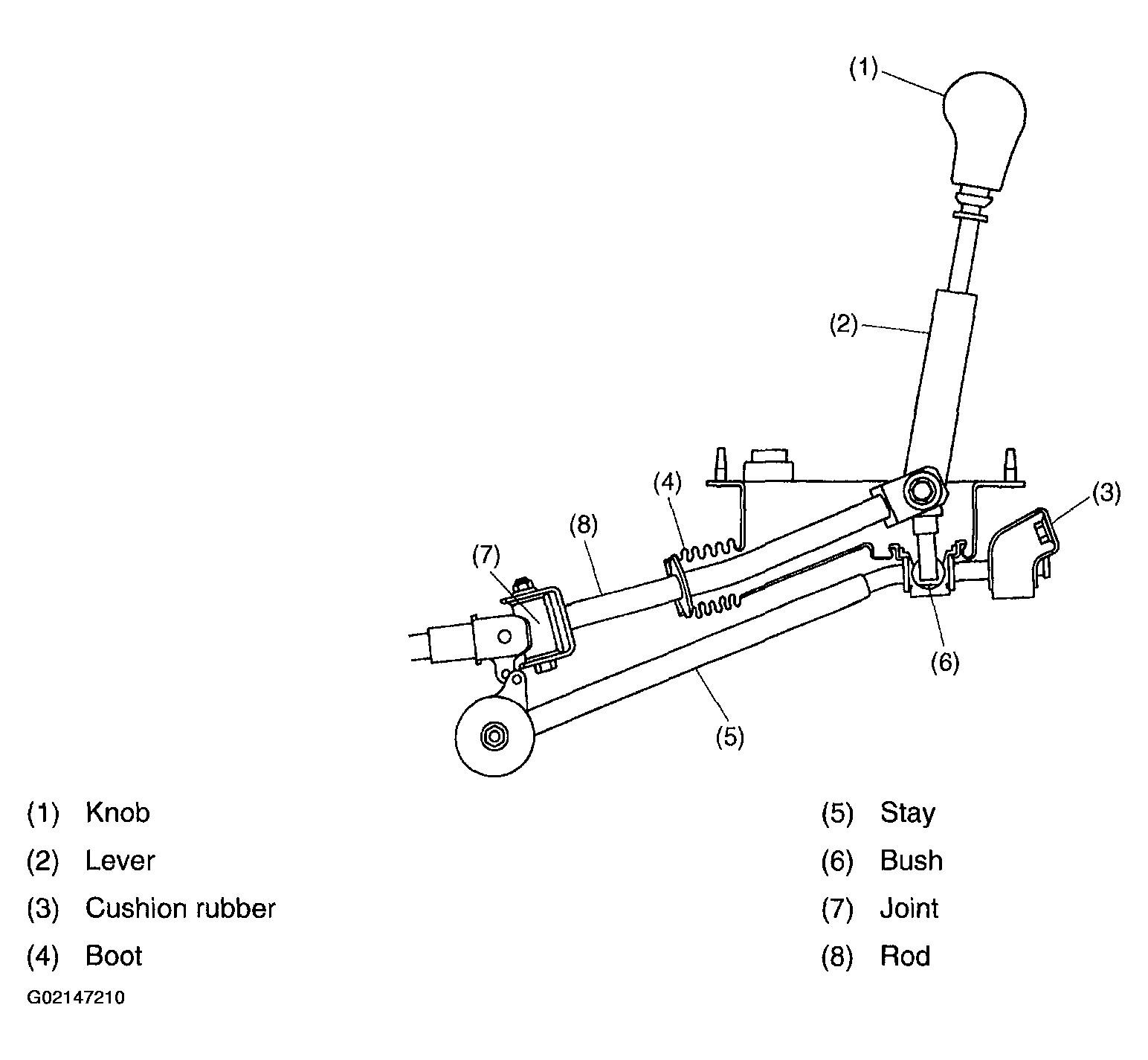

Fig 1: Identifying Gear Shift Lever Components
G02147210
