Code 11: Engine Speed Signal
>>
Trouble Symptom
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Code 11: Engine Speed Signal: Trouble Symptom
No lock-up (after engine warm-up).
AT OIL TEMP indicator remains on when vehicle speed is "0".

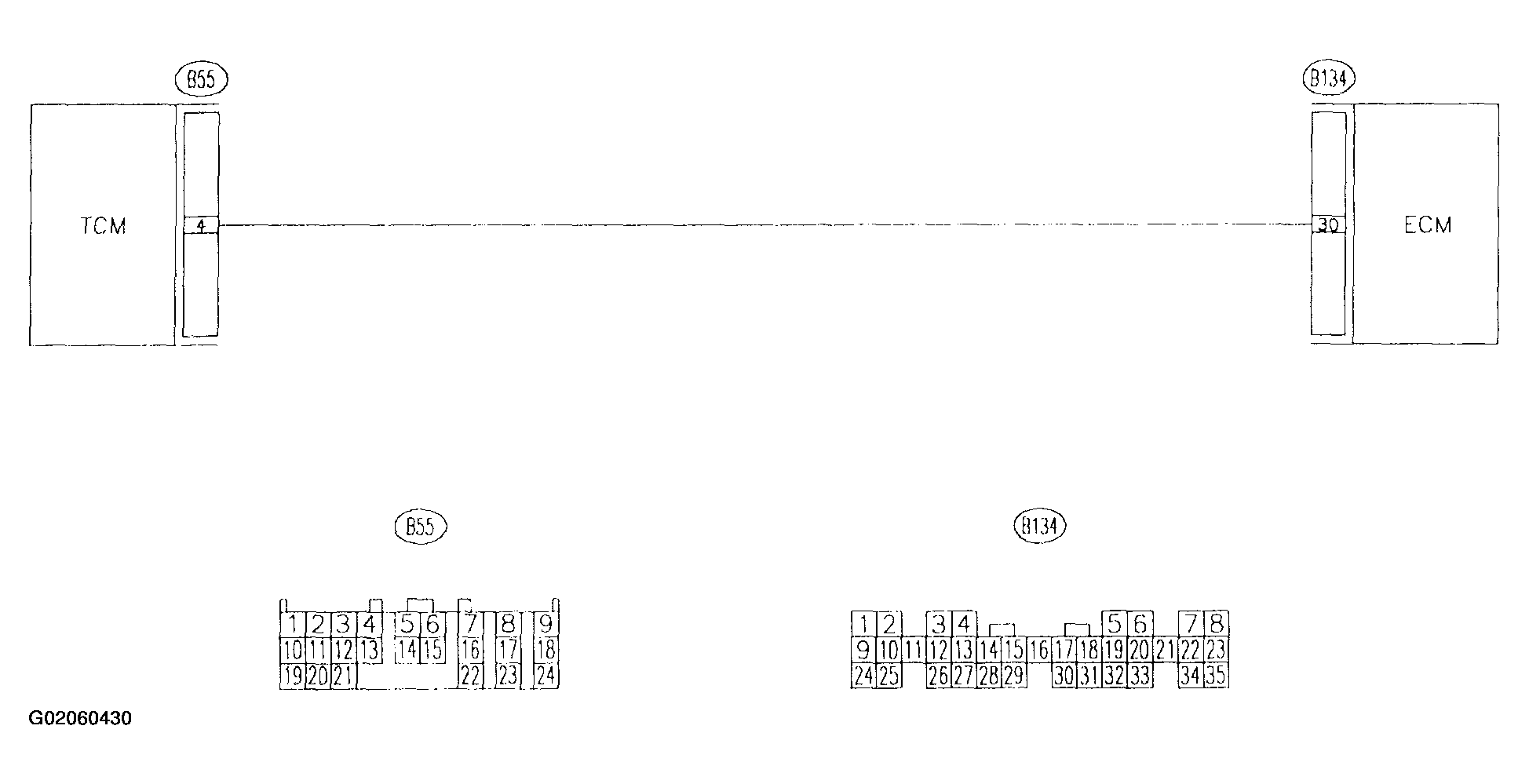

Fig 1: Engine Speed Signal Circuit - Wiring Diagram

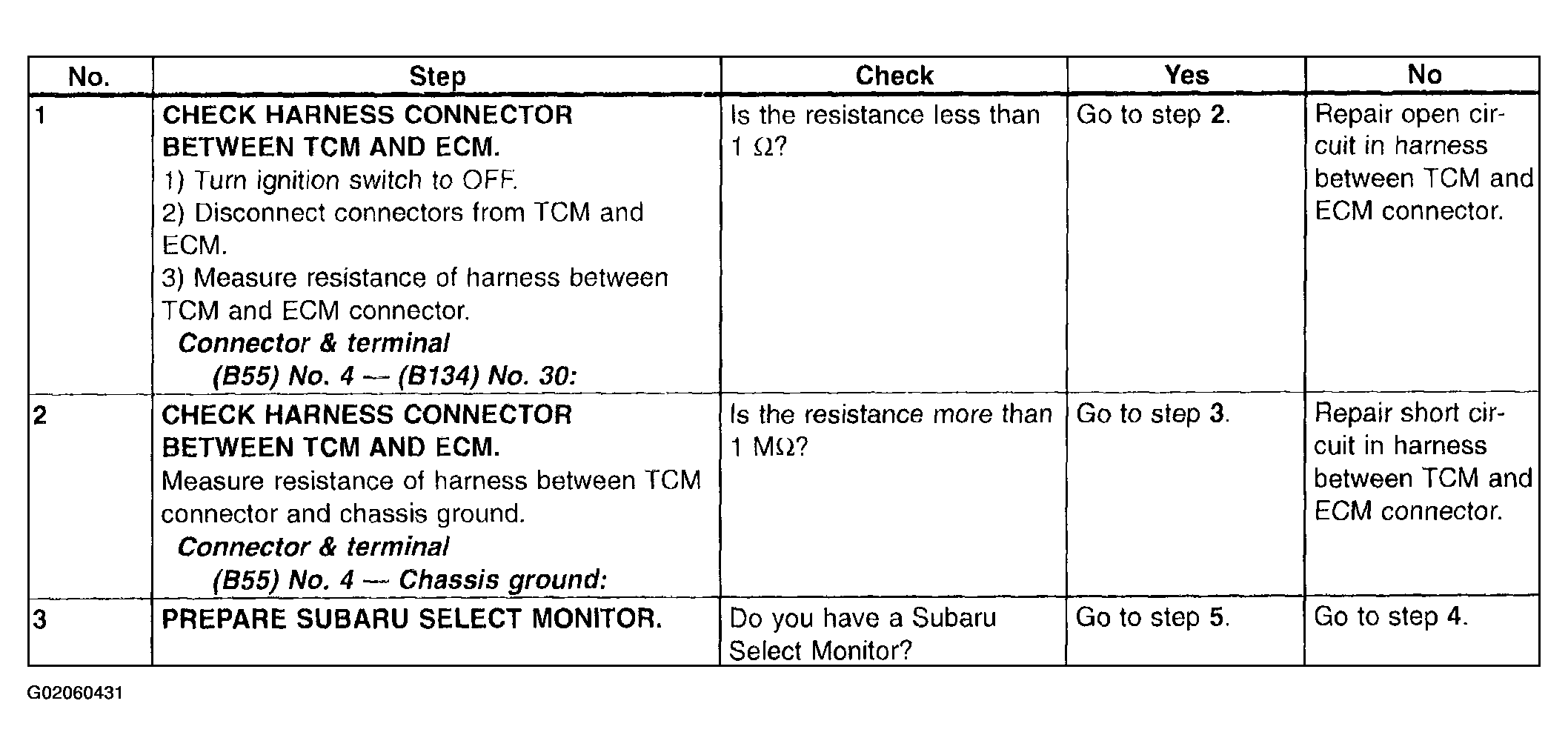

Fig 2: Trouble Code 11 - Diagnostic Chart (1 Of 2)

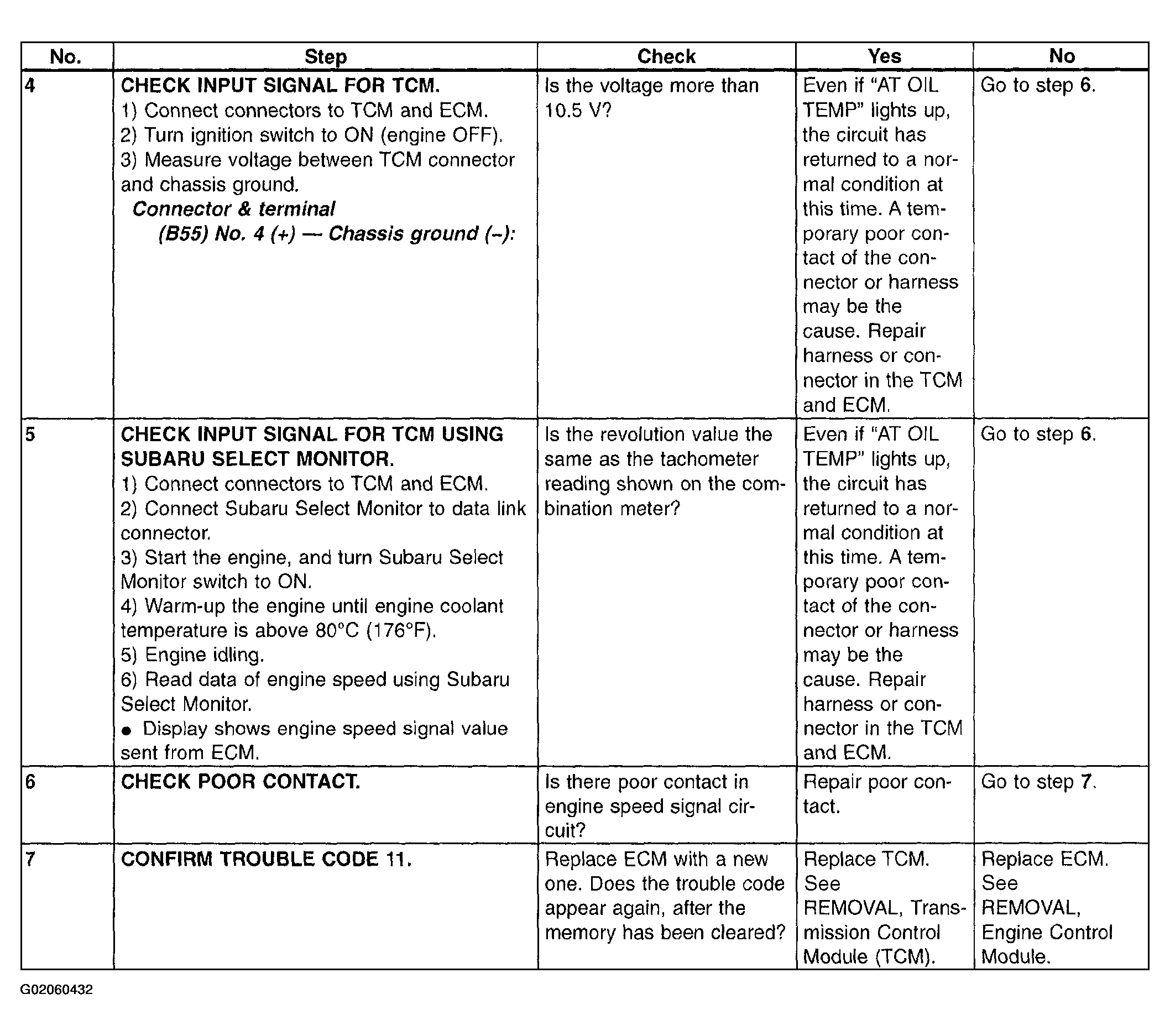

Fig 3: Trouble Code 11 - Diagnostic Chart (2 Of 2)
