System Diagram

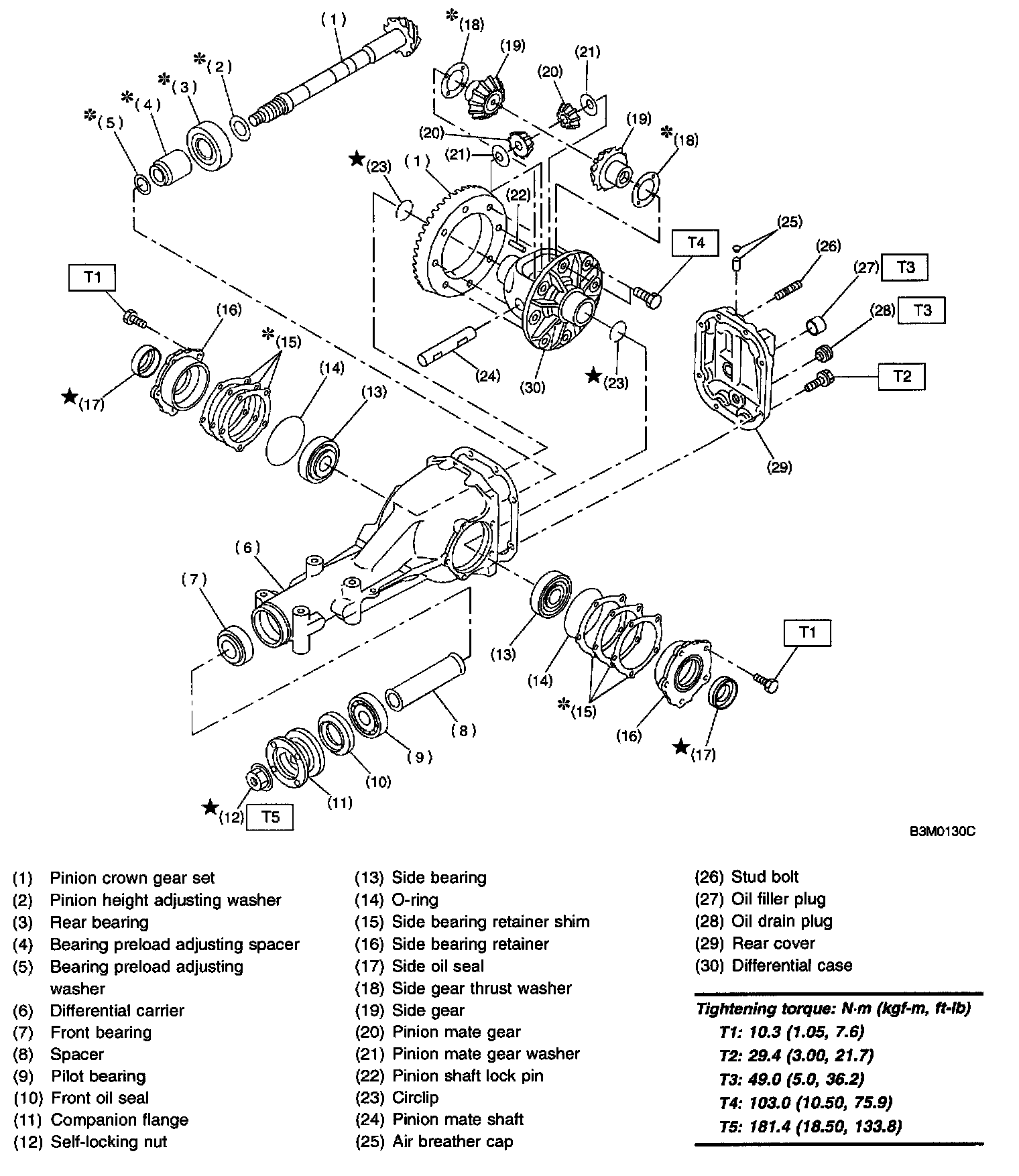

1. REAR DIFFERENTIAL FOR T-TYPE WITHOUT LSD

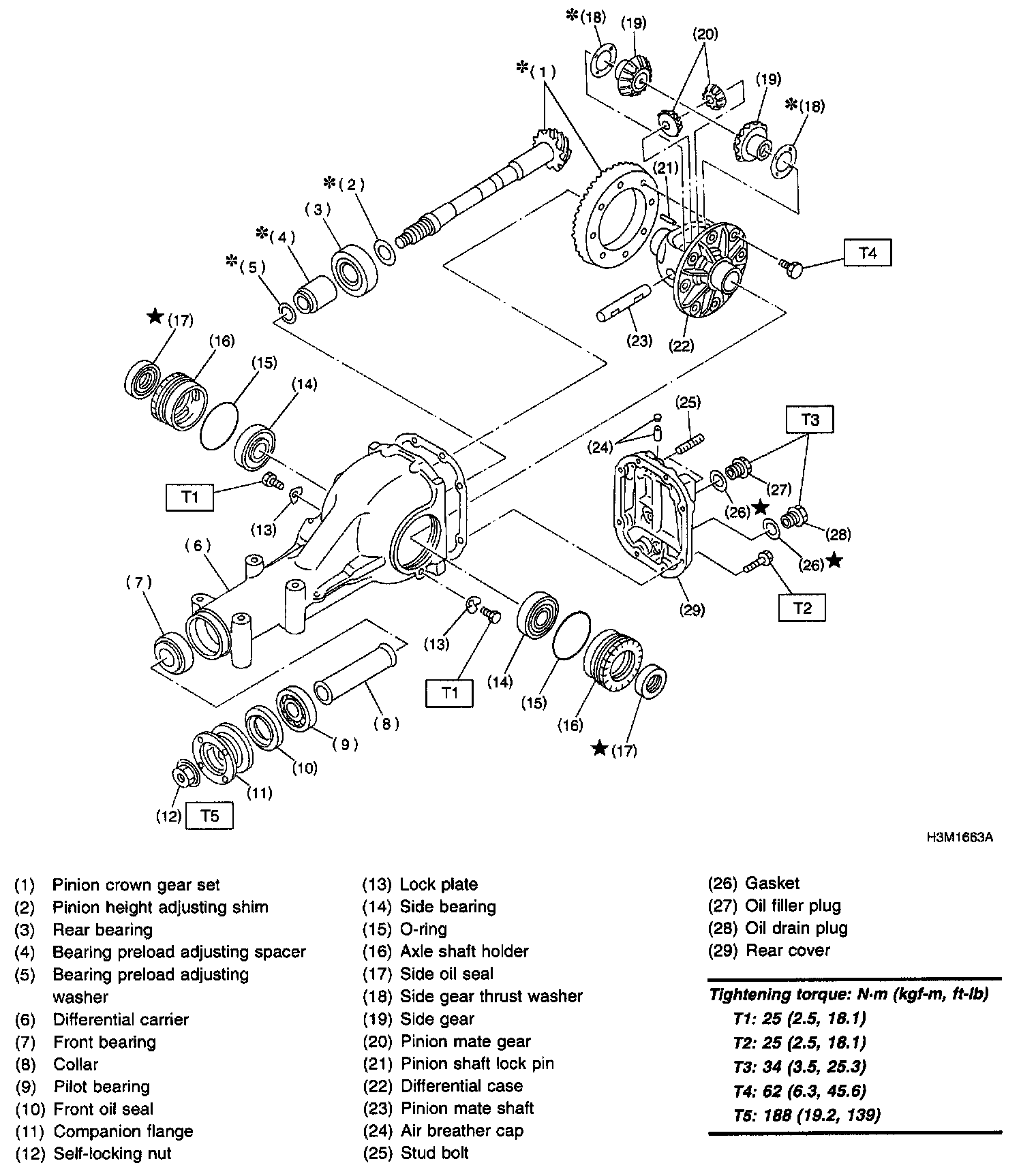

2. REAR DIFFERENTIAL FOR T-TYPE WITH LSD

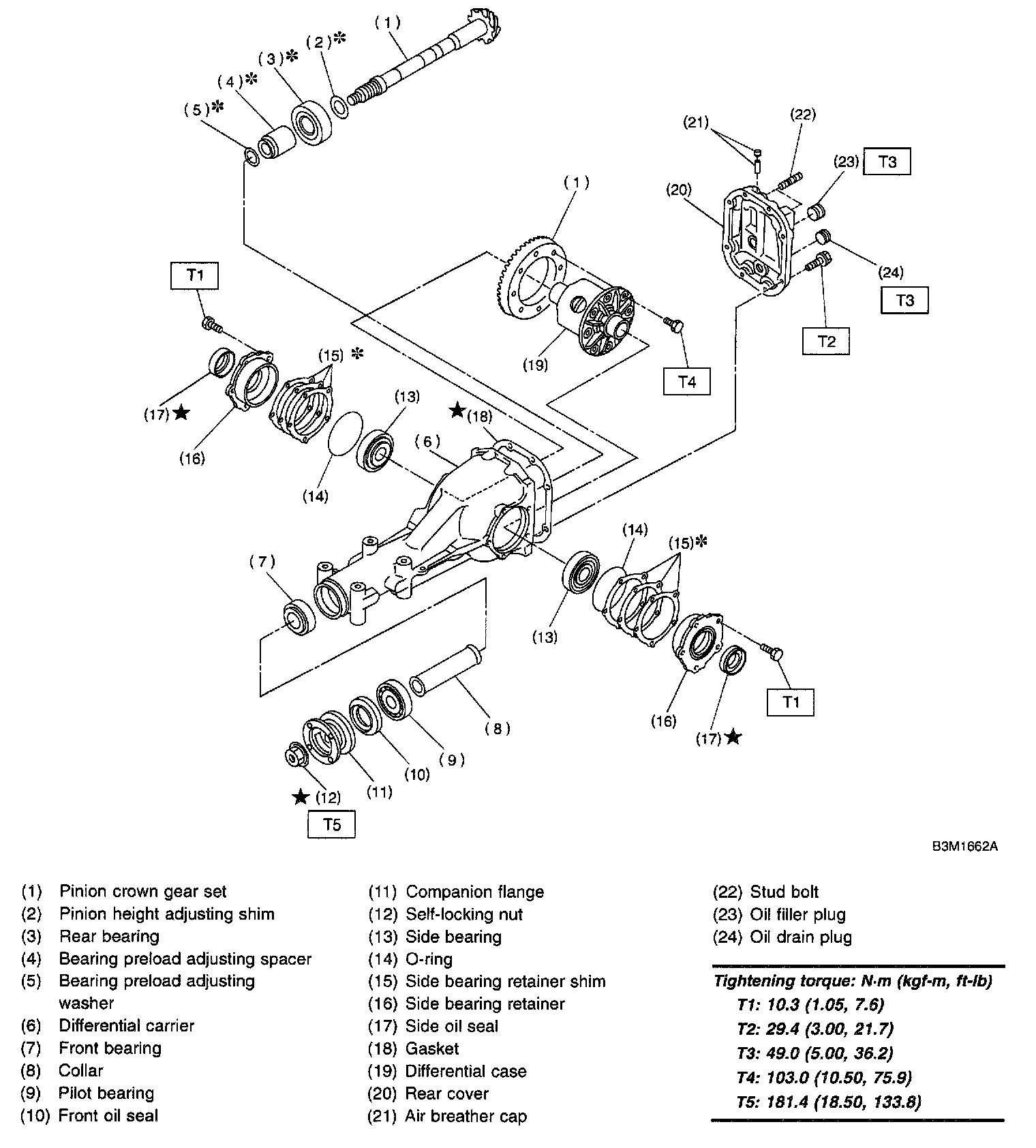

3. REAR DIFFERENTIAL FOR VA-TYPE
