Steering Angle: Adjustment

Turn tie-rod to adjust steering angle of both inner and outer wheels.

CAUTION:
  • Check toe-in.
  • Correct boot if it is twisted.

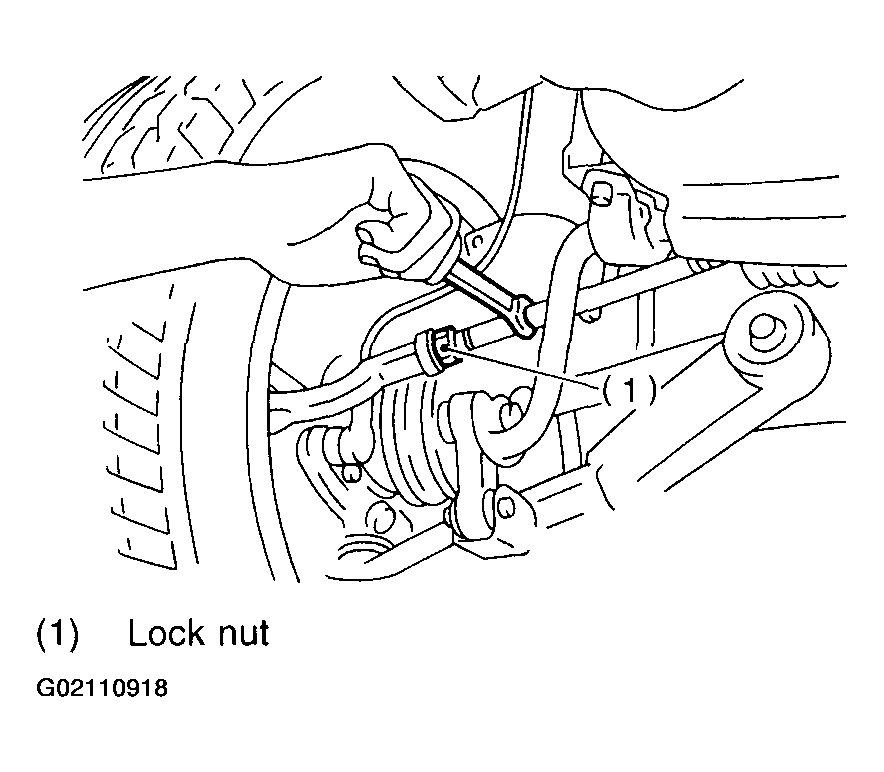

Fig 1: Adjusting Steering Angle
G02110918Courtesy of SUBARU OF AMERICA, INC.
