Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Braking System (Diagnostics) >> Diagnostics Chart with Diagnosis Connector >> Code 41: Abnormal Abs Control Module >> Diagnostic Chart

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Diagnostic Chart

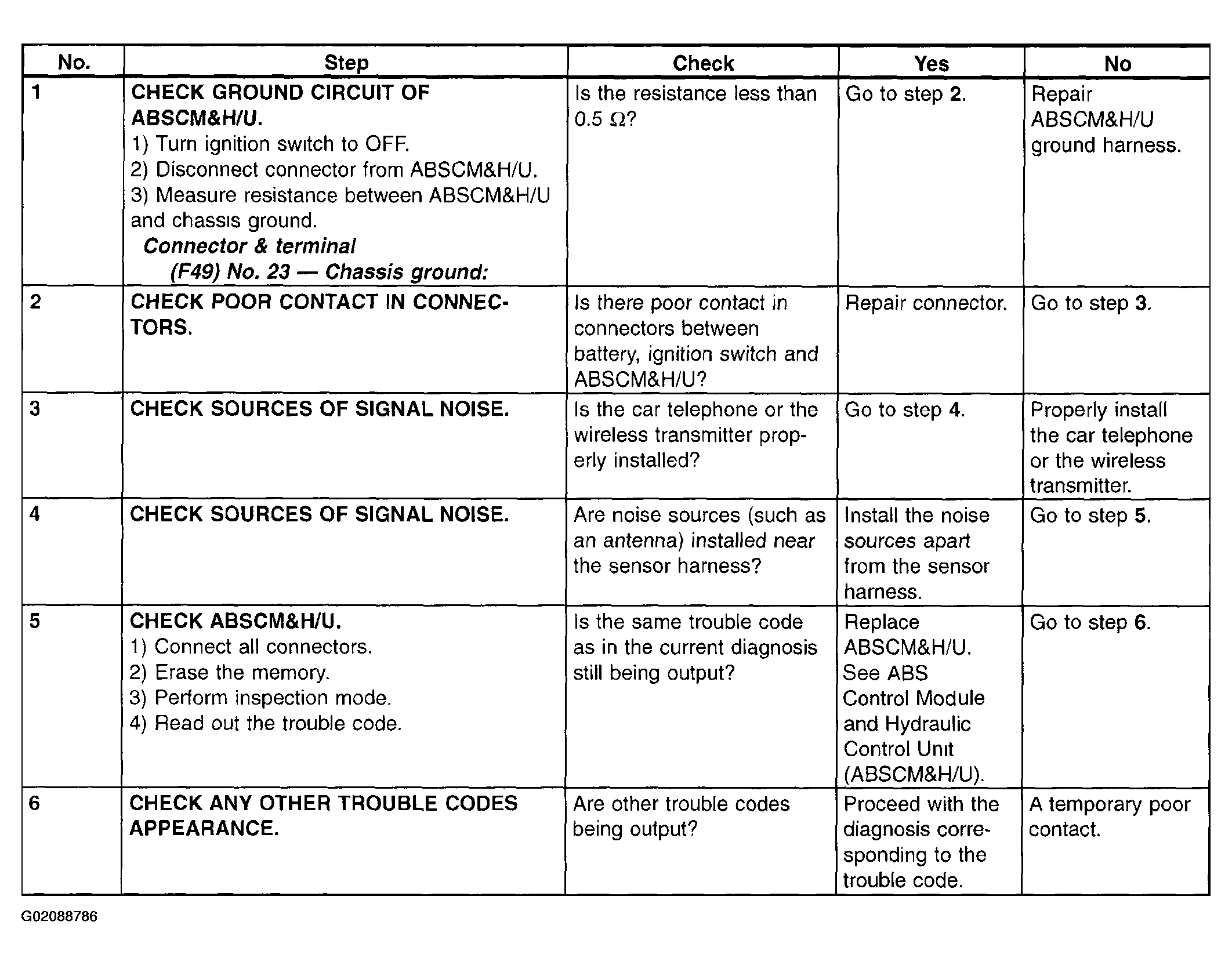

Fig 1: Trouble Code 41 - Abnormal ABS Control Module - With Diagnosis Connector Diagnostic Chart

G02088786
