Diagnostics Chart with Subaru Select Monitor
>>
Communication For Initializing Impossible
>>
Diagnostic Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Chart

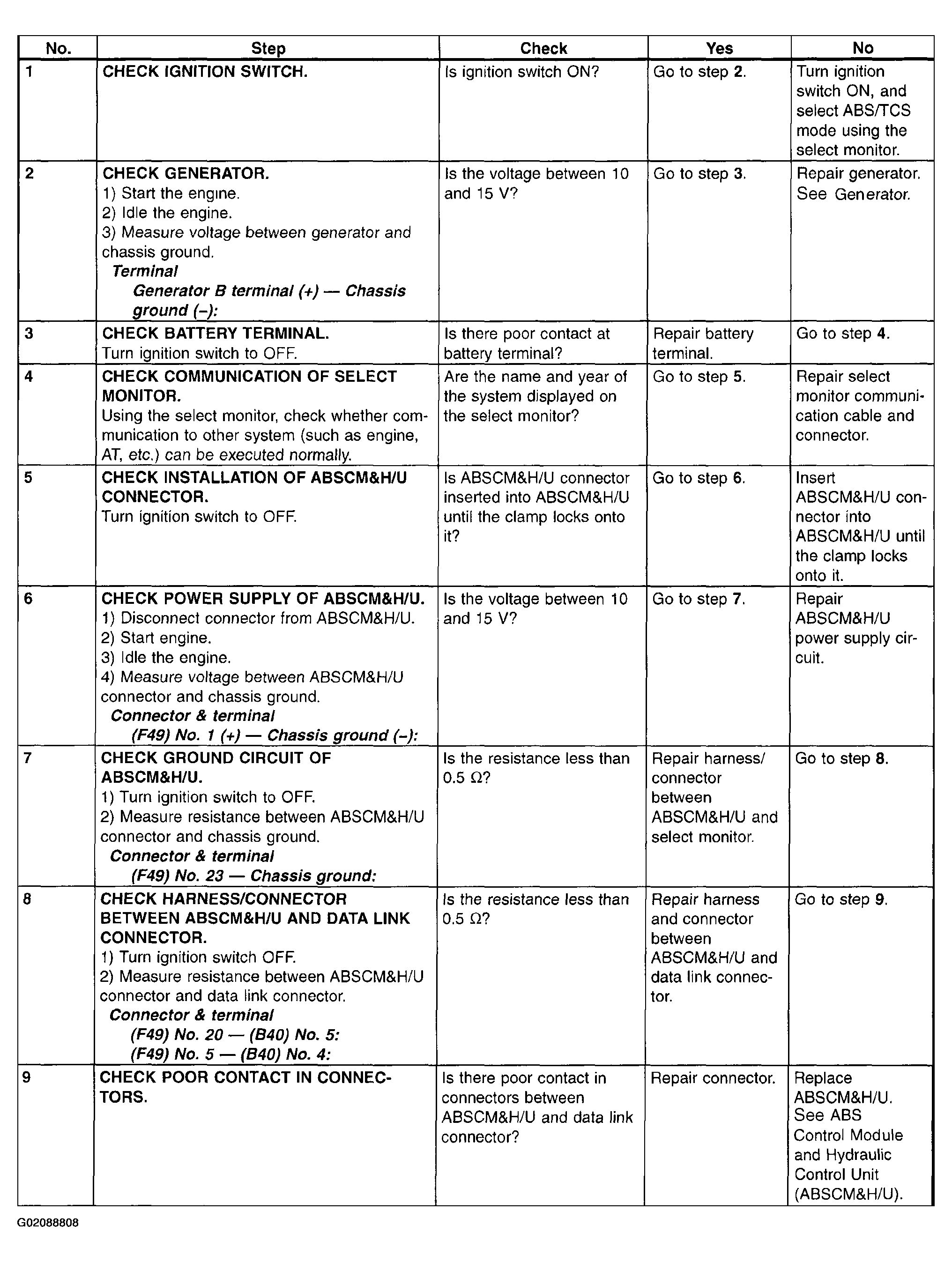

Fig 1: Communication For Initializing Impossible - Diagnostic Chart
