Diagnostic Chart

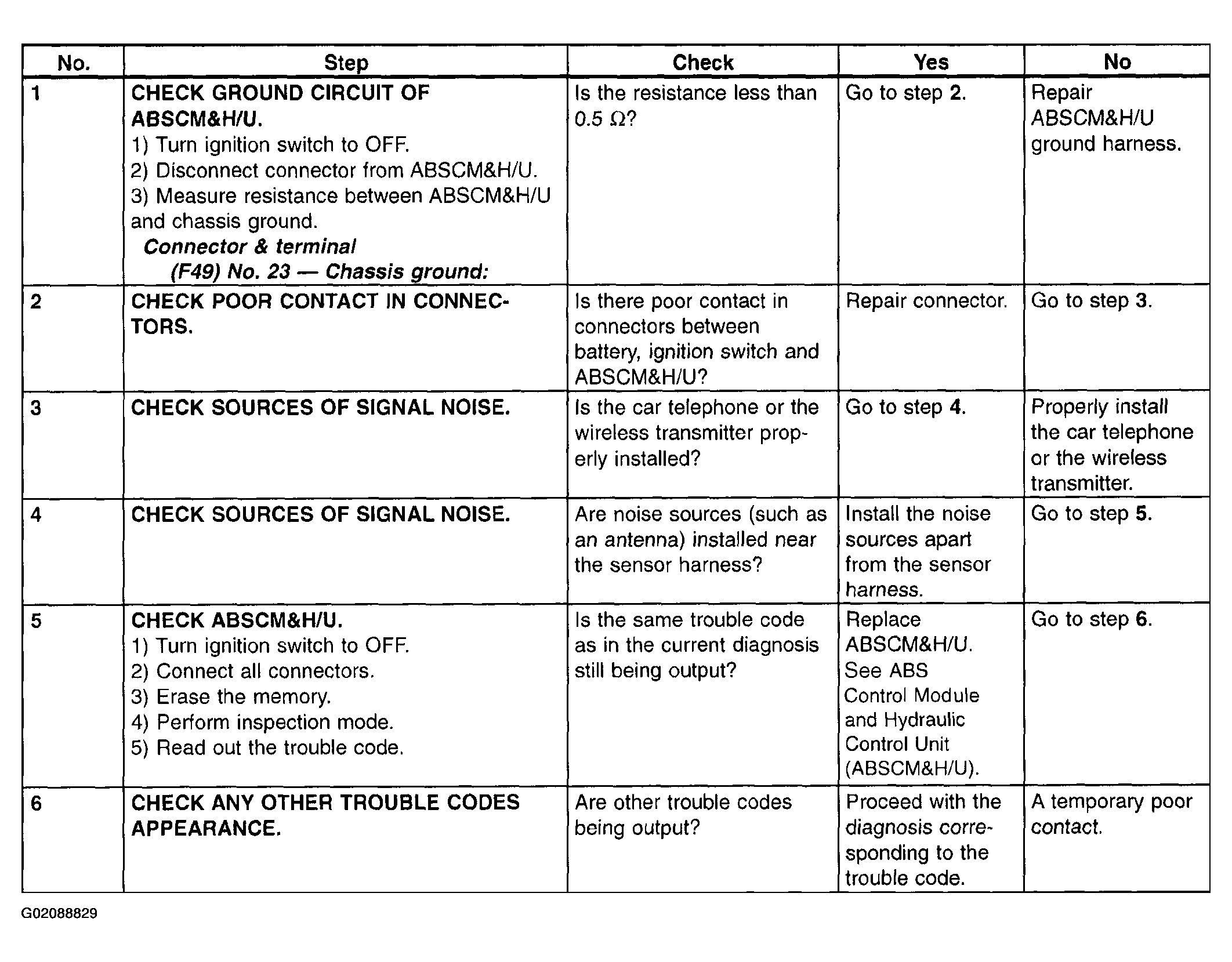

Fig 1: Trouble Code 41 - ABS Control Module Malfunction - Diagnostic Chart

G02088829
