Lubrication (H4SO): General Description: Component

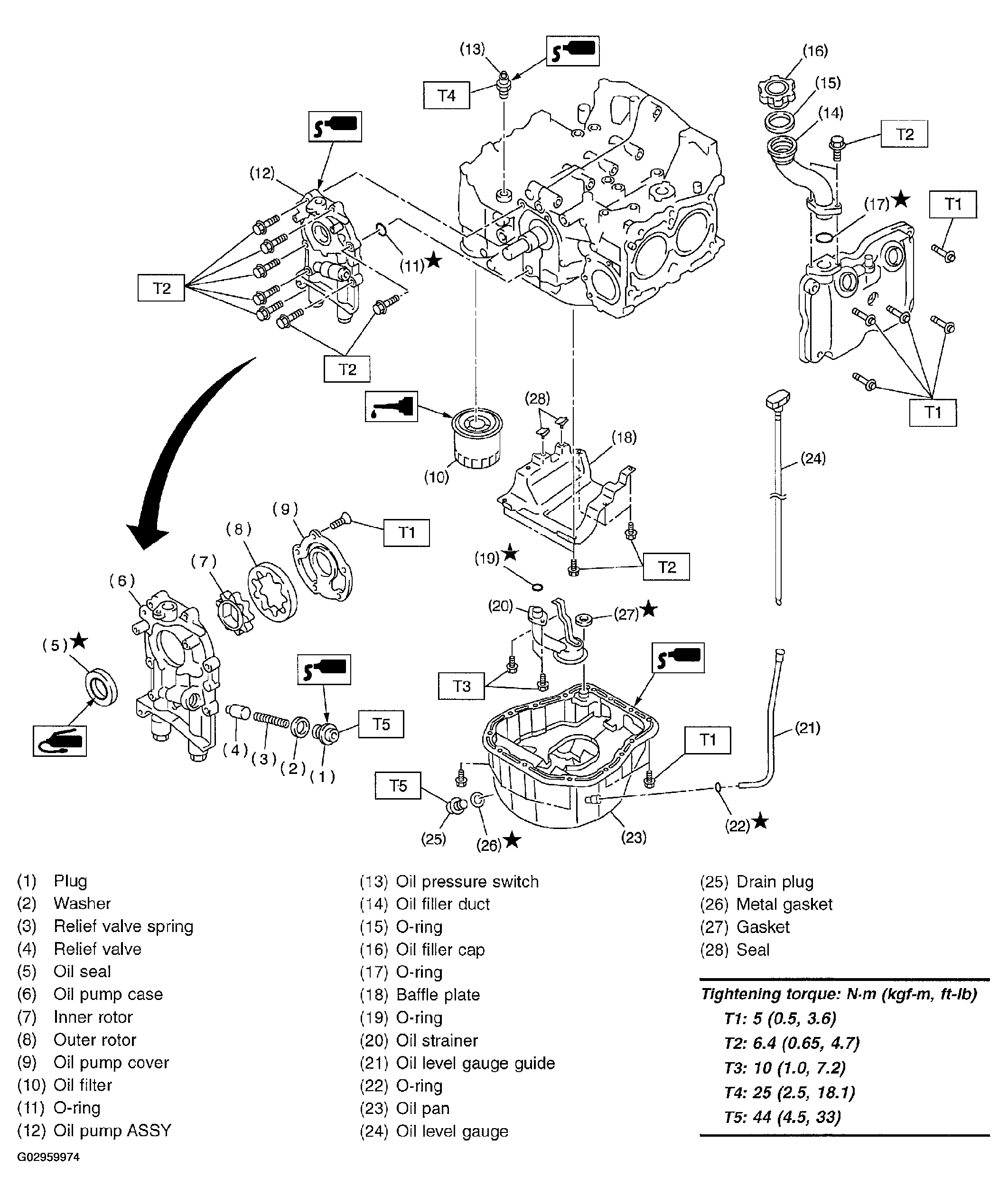

Fig 1: Identifying Lubrication Components
G02959974Courtesy of SUBARU OF AMERICA, INC.
