Oil Pressure System: Inspection

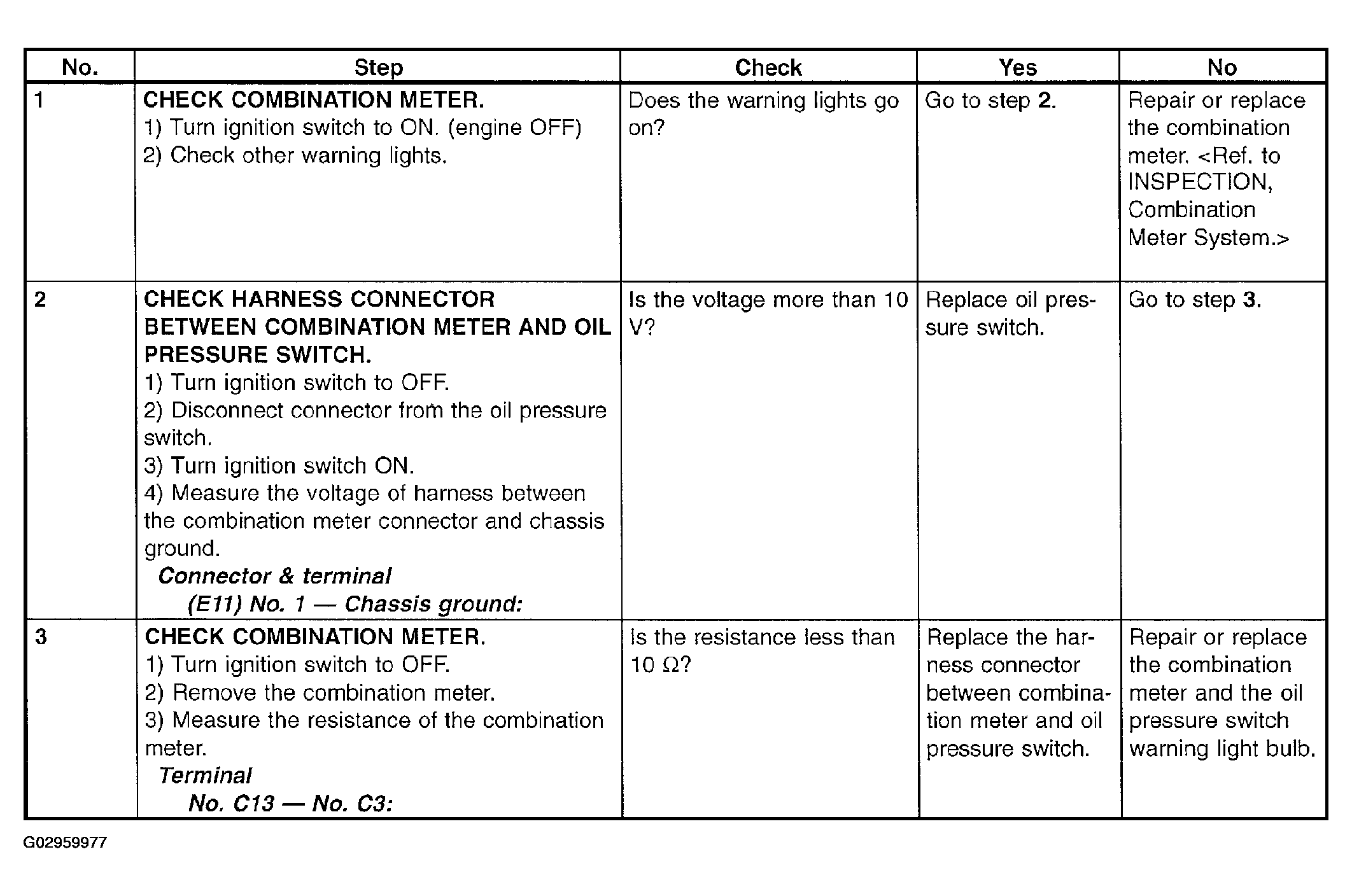

Fig 1: Oil Pressure System Inspection Chart
G02959977Courtesy of SUBARU OF AMERICA, INC.
